Installation Procedure

  1. Install the center vent grille panel to the vehicle.

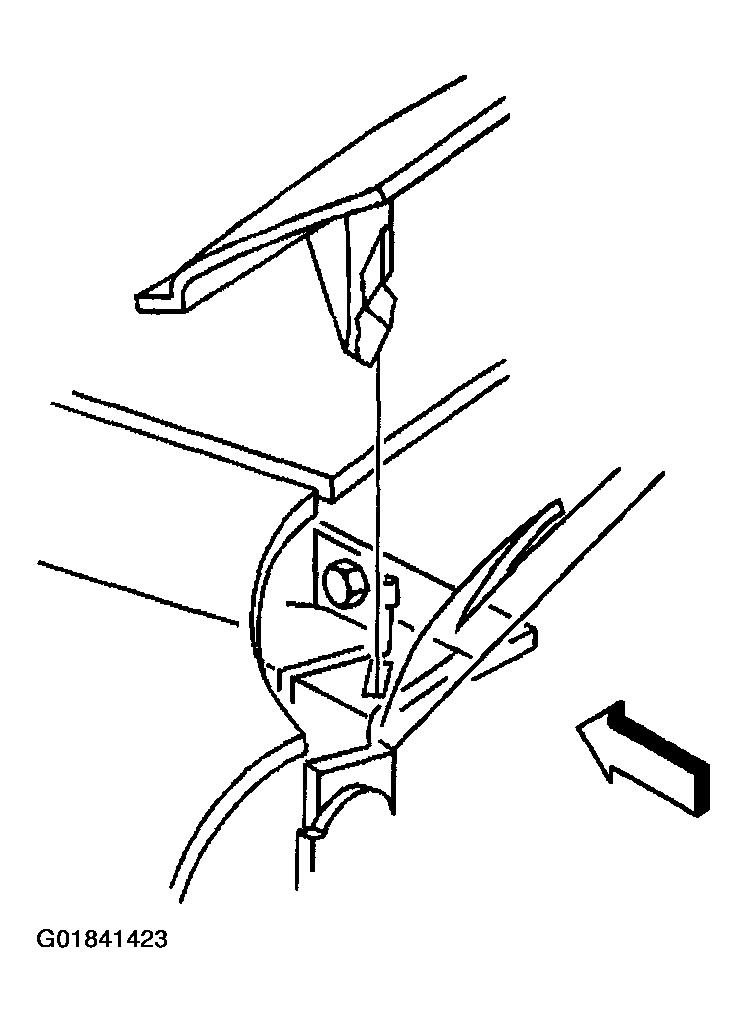

    Fig 1: Locating Cowl Center Vent Grille Panel
    G01841423Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  2. Install the screws that secure the center vent grille panel to the cowl.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  3. Install the push-pin retainers securing the center vent grille panel to the cowl.

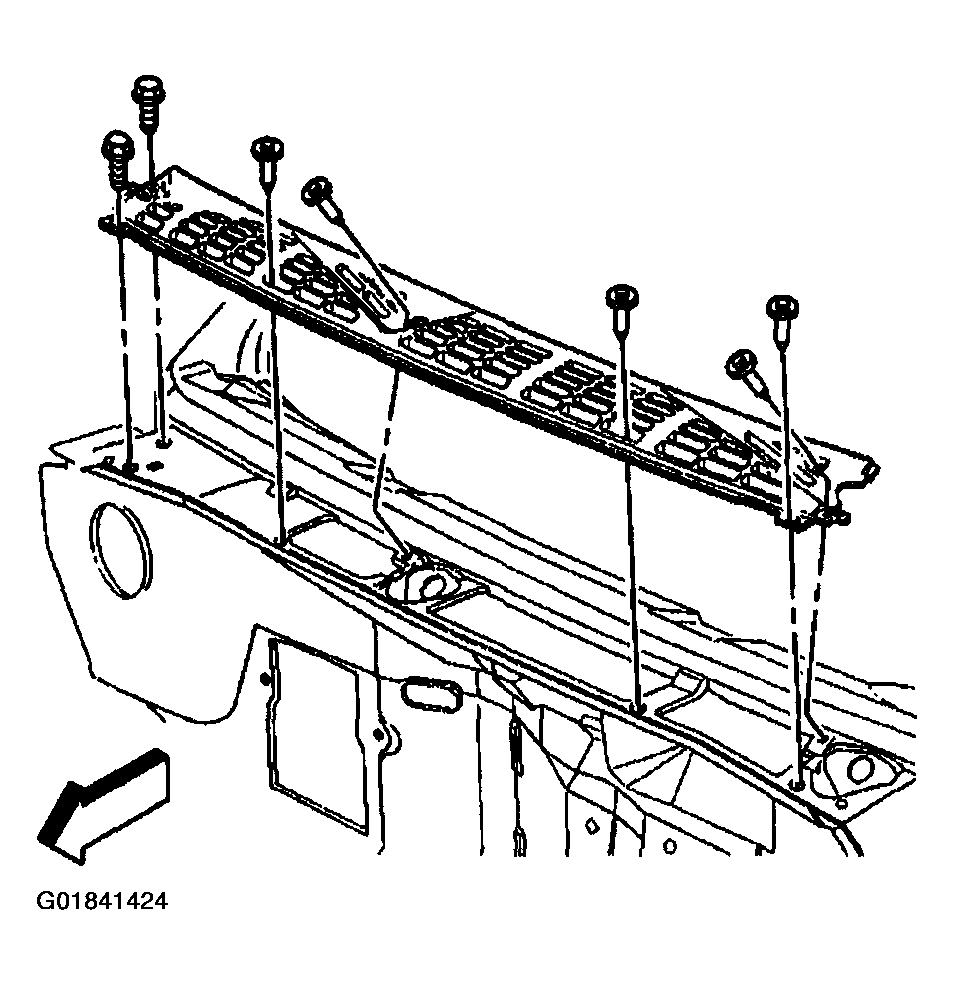

    Fig 2: Locating Center Vent Grille Panel-To-Cowl Push-Pin Retainers
    G01841424Courtesy of GENERAL MOTORS CORP.
  4. Install the right and the left vent grille end panels to the cowl.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

  5. Install the screws securing the securing the right and the left vent grille ends to the cowl.

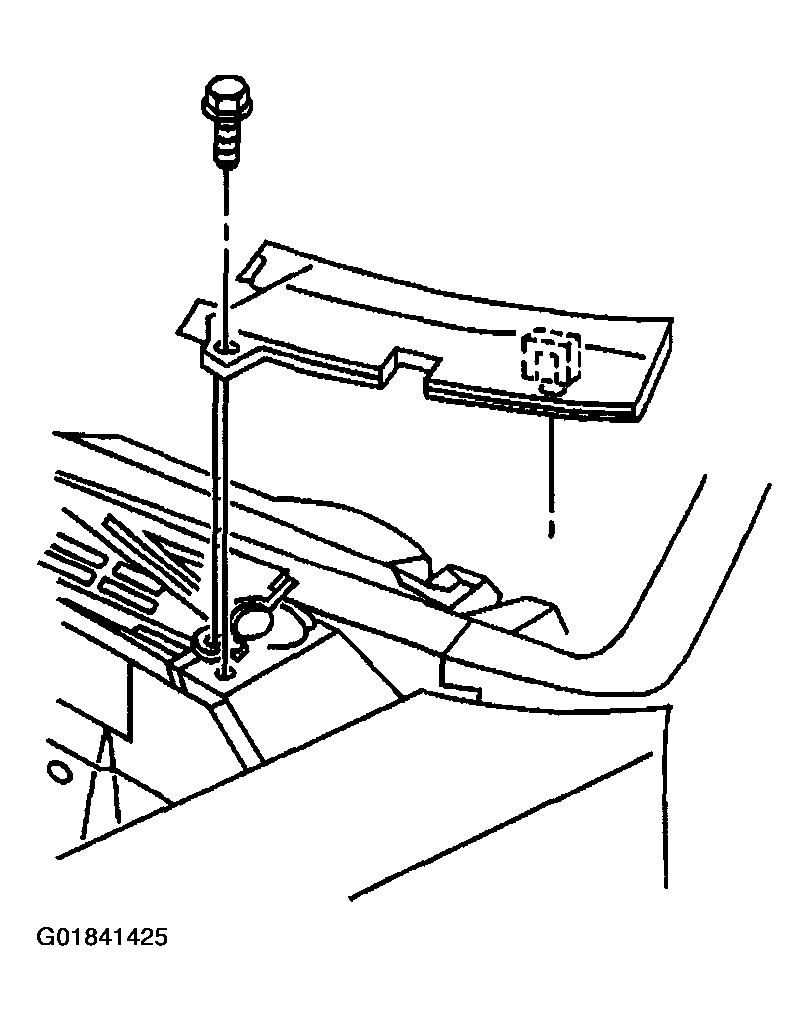

    Fig 3: Locating Right & Left Vent Grille End Panels Bolt
    G01841425Courtesy of GENERAL MOTORS CORP.
  6. Install the windshield wiper arms. Refer to Wiper Arm Replacement on page 8-504  in Wipers/Washer Systems.
