Power, Ground & PASSLOCK™ Sensor
Power, Ground & PASSLOCK™ Sensor

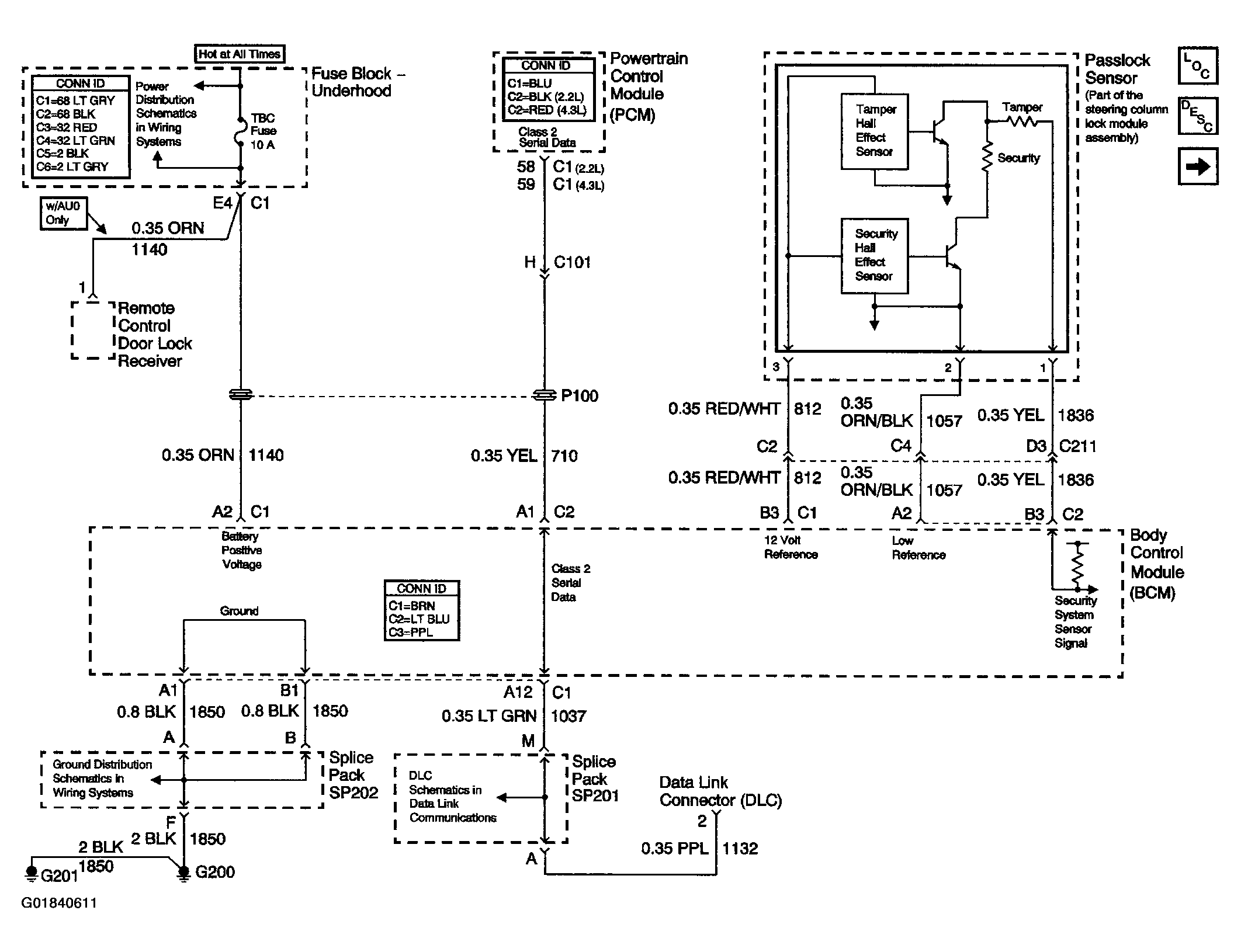

Fig 1: Theft Deterrent System Schematics (Power, Ground & Passlock™ Sensor)
Courtesy of GENERAL MOTORS CORP.
