Door Jamb Switch Inputs

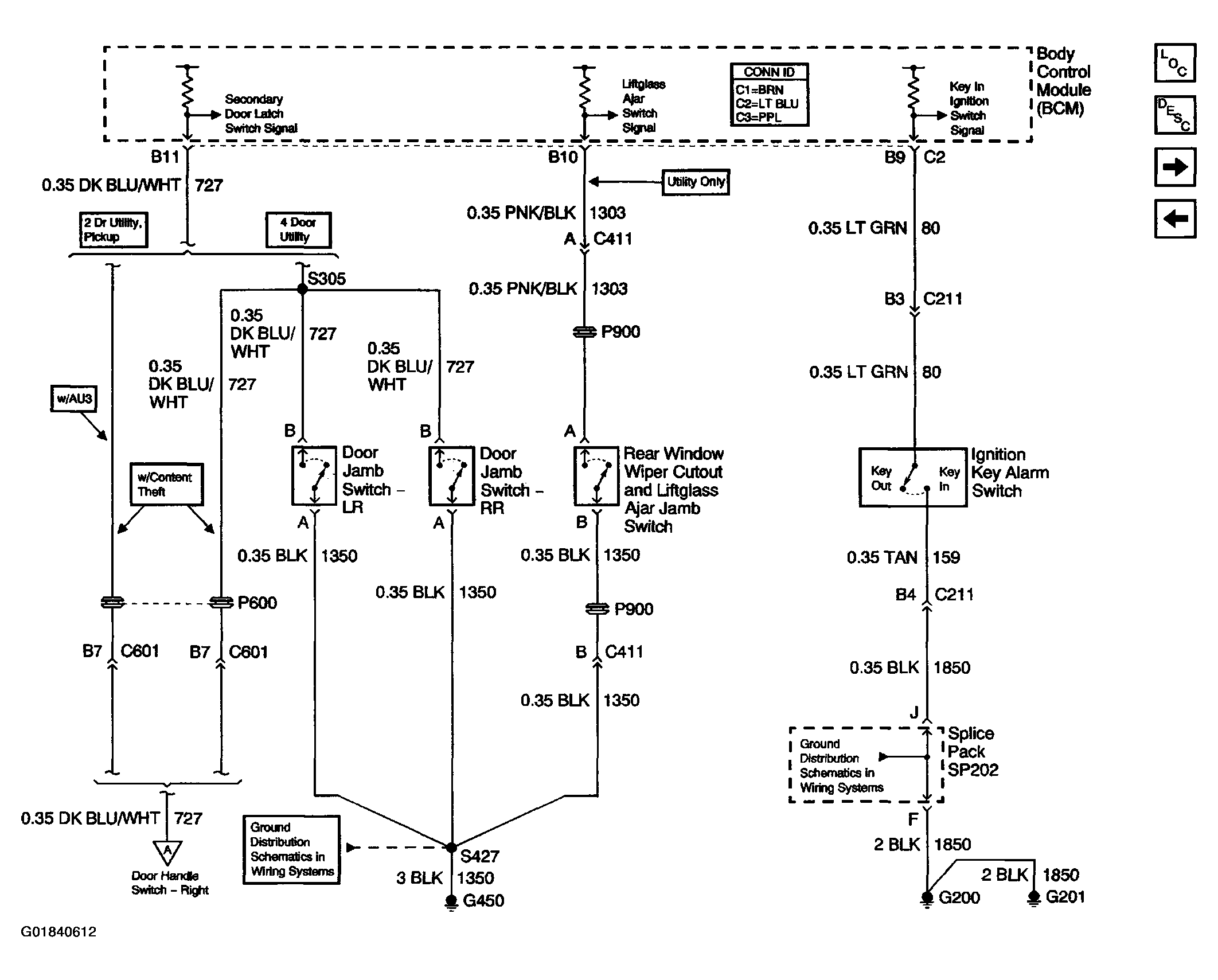

Fig 1: Theft Deterrent System Schematics (Door Jamb Switch Inputs)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
