Door Handle Switch Inputs

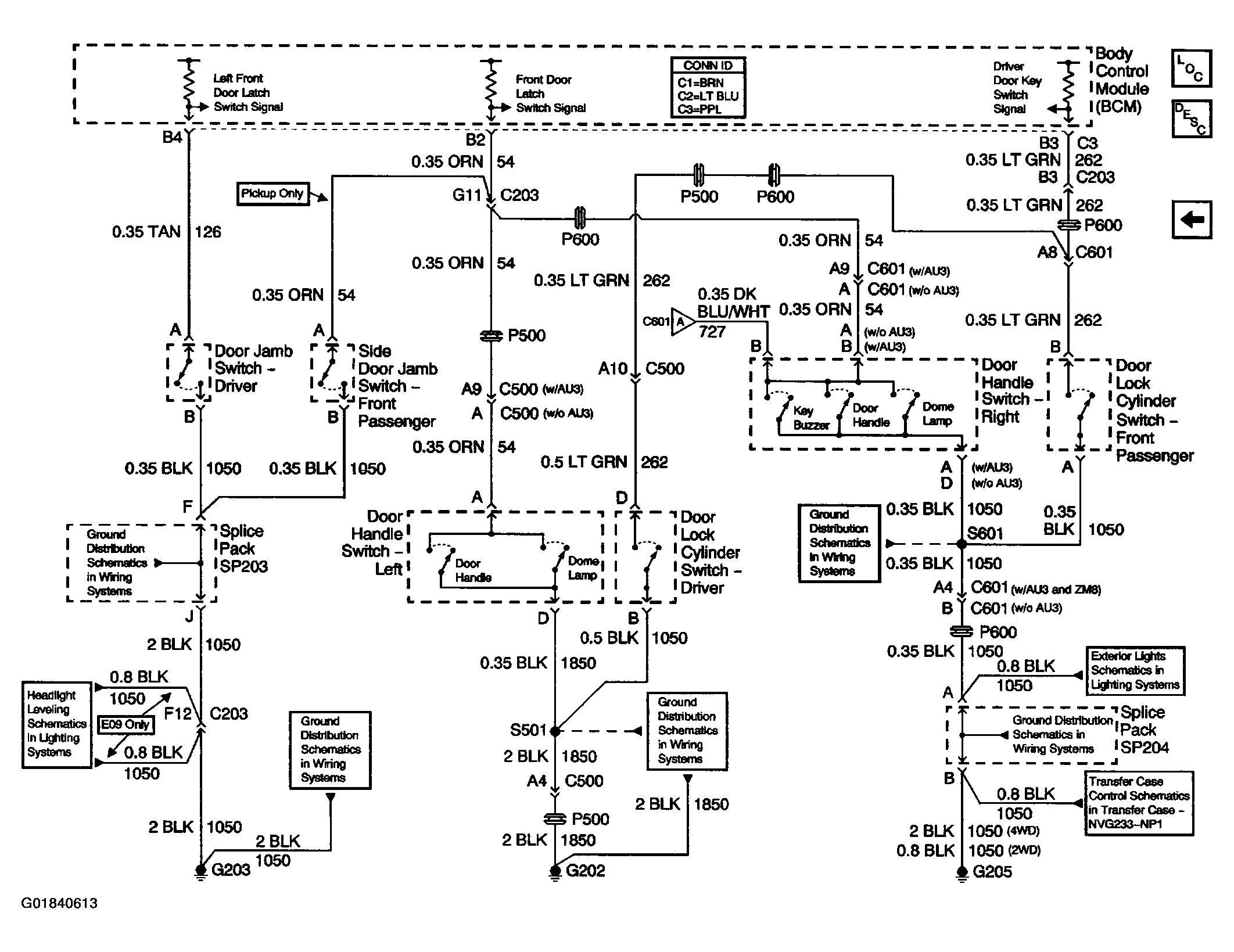

Fig 1: Theft Deterrent System Schematics (Door Handle Switch Inputs)

G01840613

Courtesy of GENERAL MOTORS CORP.
