Test Description

The number below refers to the step number on the diagnostic table. See Fig 1.

1. 3

   Tests for a magnetic field near the ignition lock cylinder.

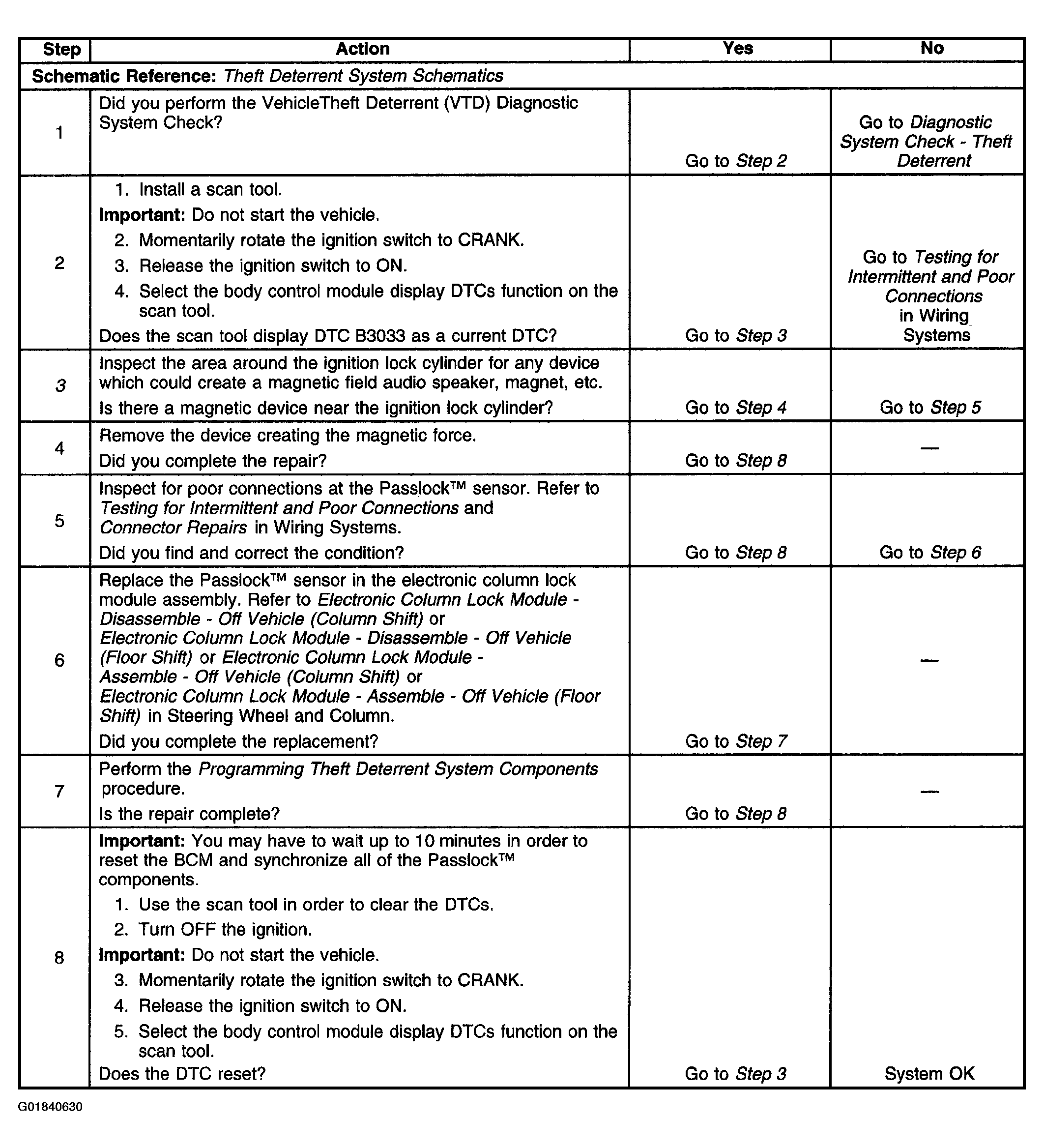

Fig 1: DTC B3033 Diagnostic Table (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.
