Test Description

The number below refers to the step number on the diagnostic table. See Fig 1.

1. 6

   Tests for the proper operation of the circuit in the normal voltage range.

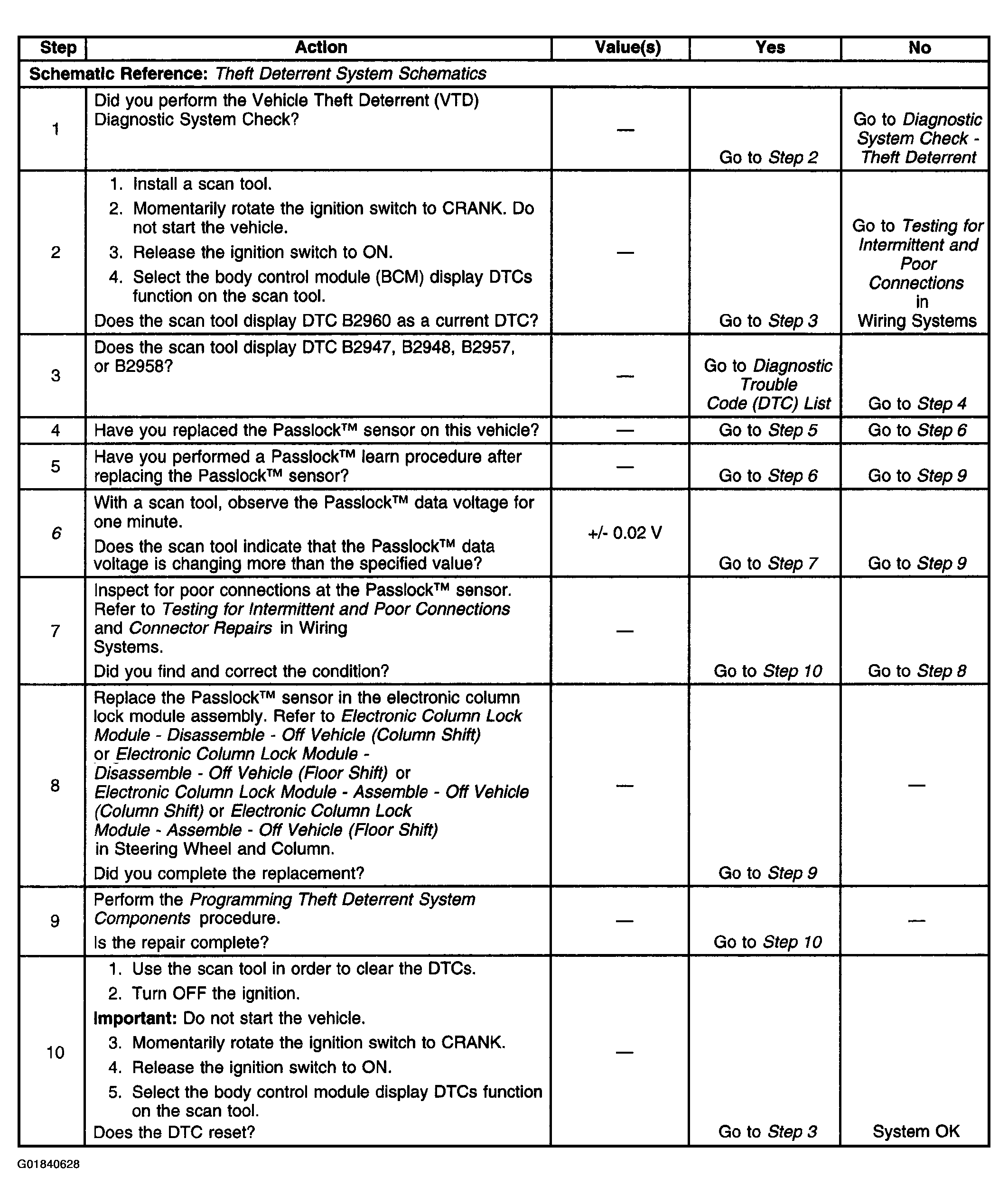

Fig 1: DTC B2960 Diagnostic Table (Steps 1-10)

Courtesy of GENERAL MOTORS CORP.
