Content Theft Deterrent (CTD) Does Not Disarm With Key Lock

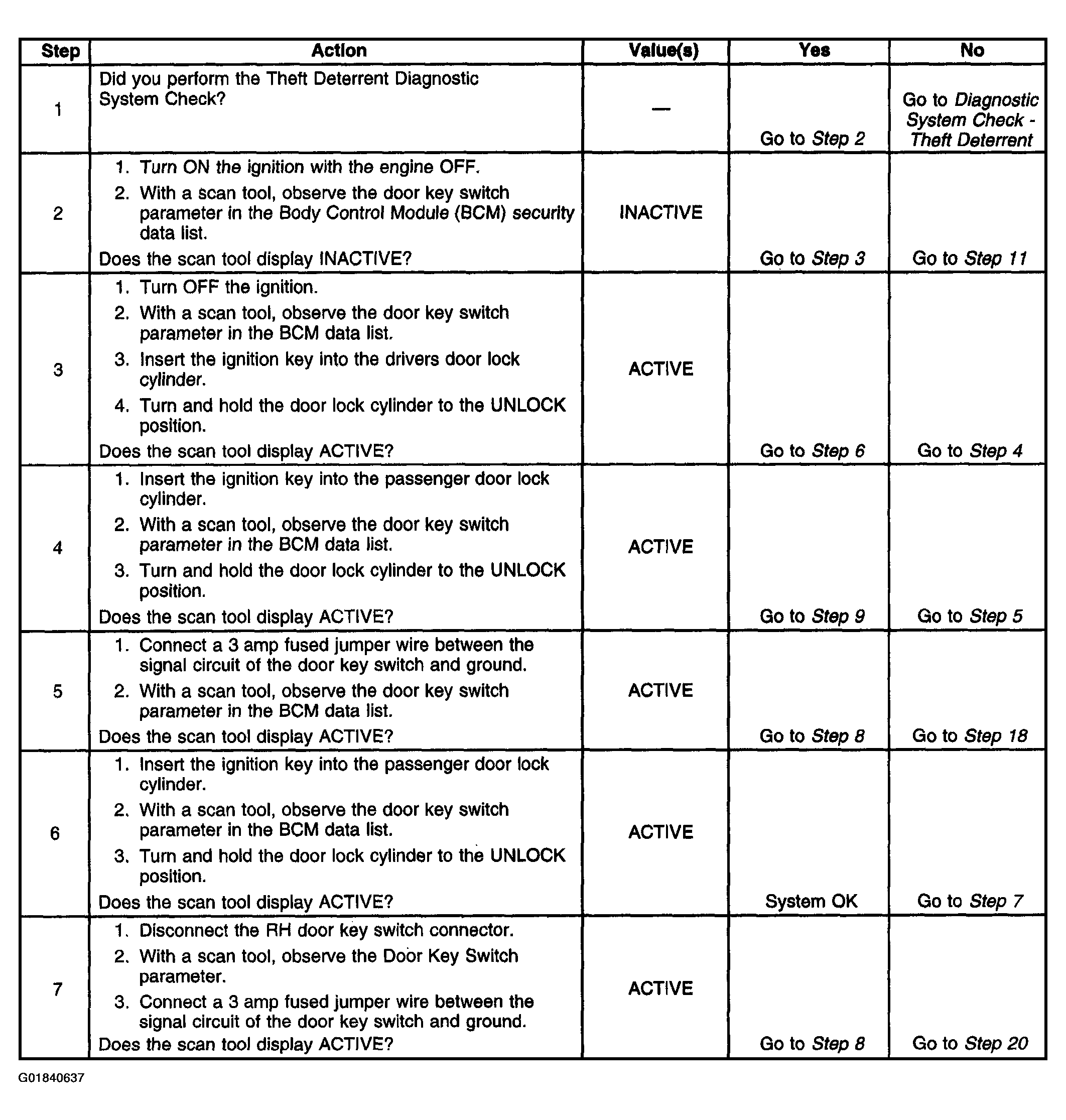

Fig 1: Content Theft Deterrent (CTD) Does Not Disarm With Key Lock (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

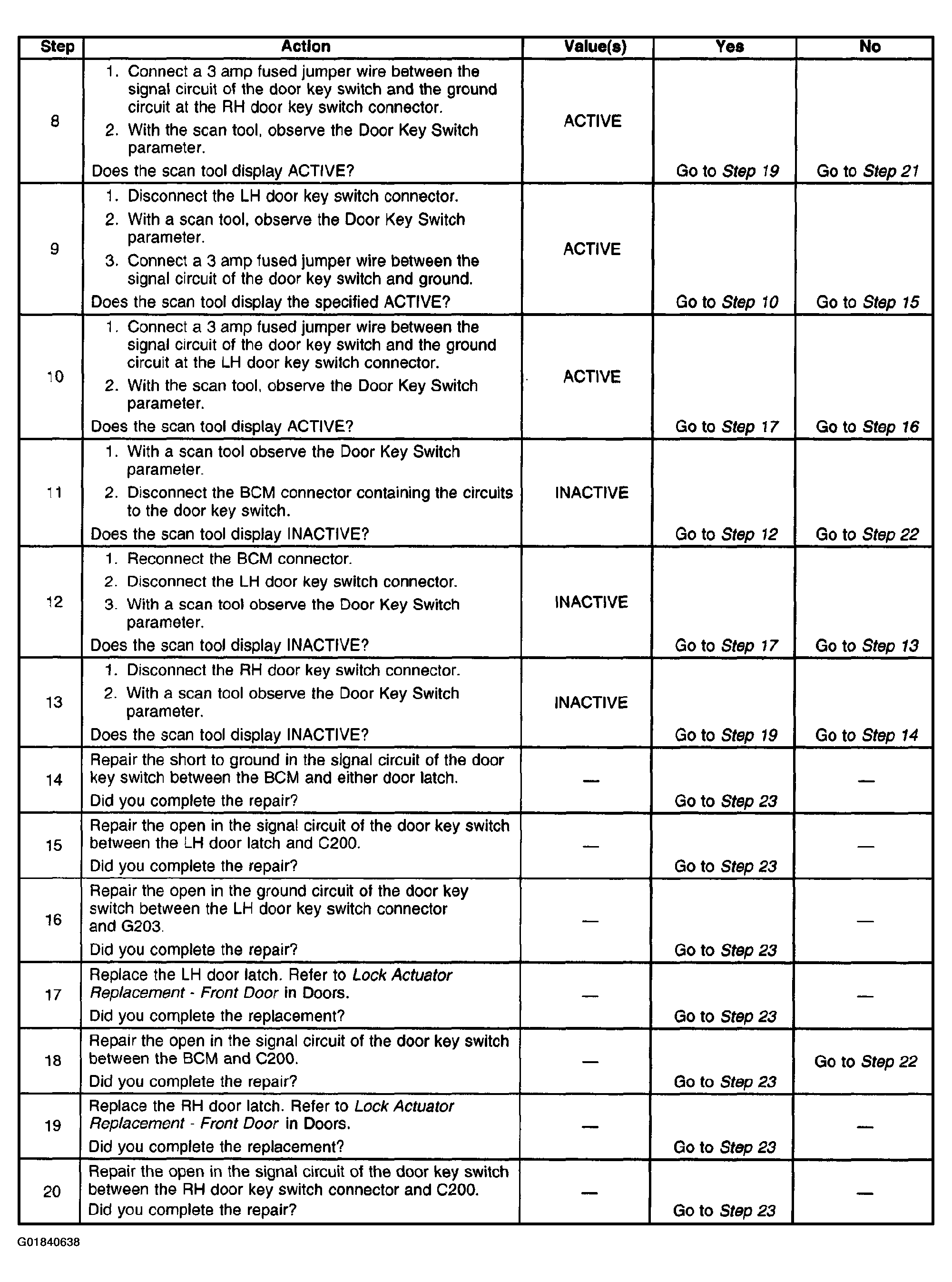

Fig 2: Content Theft Deterrent (CTD) Does Not Disarm With Key Lock (Steps 8-20)

Courtesy of GENERAL MOTORS CORP.

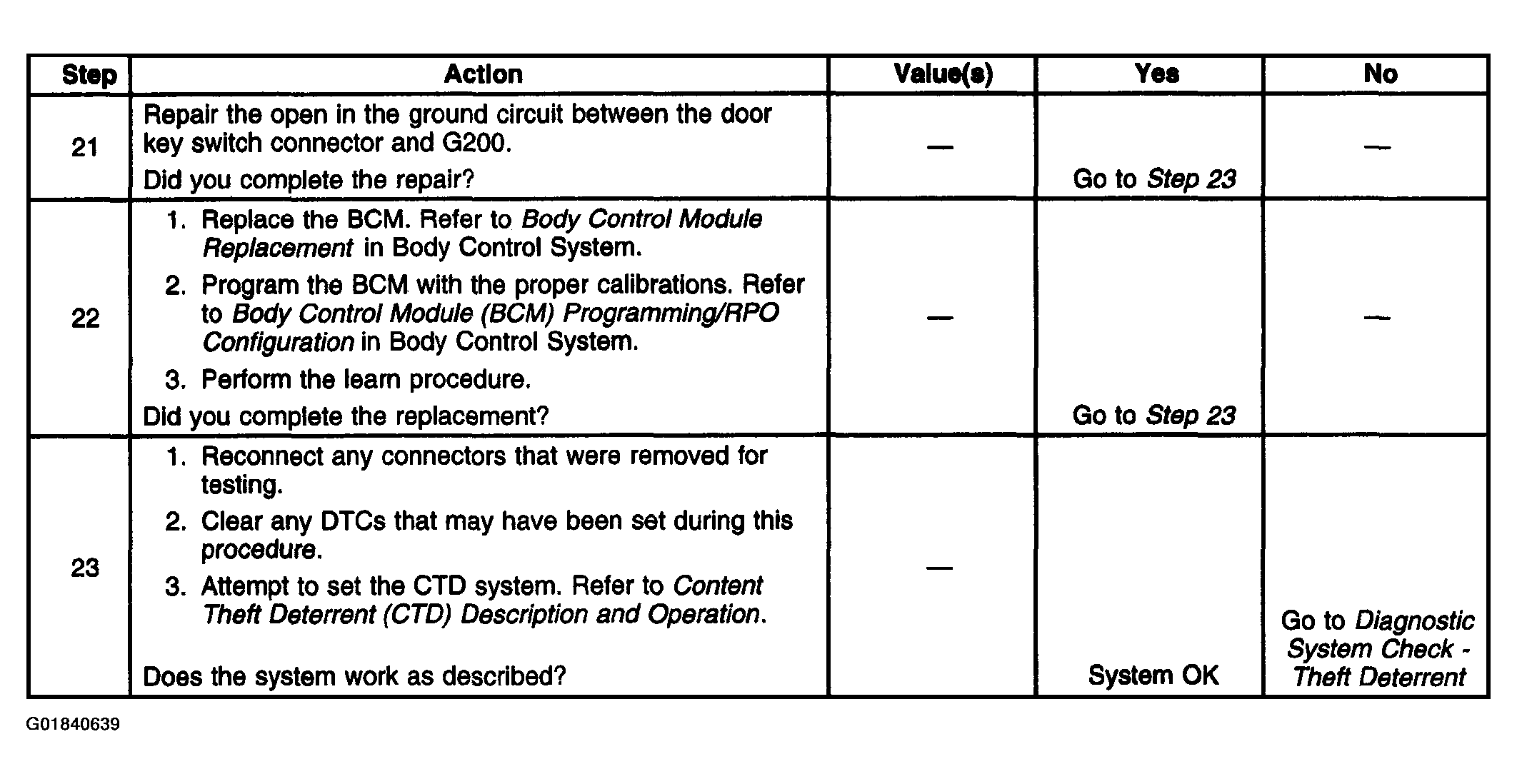

Fig 3: Content Theft Deterrent (CTD) Does Not Disarm With Key Lock (Steps 21-23)

Courtesy of GENERAL MOTORS CORP.
