Door Unlock Function Inoperative with Transmitter

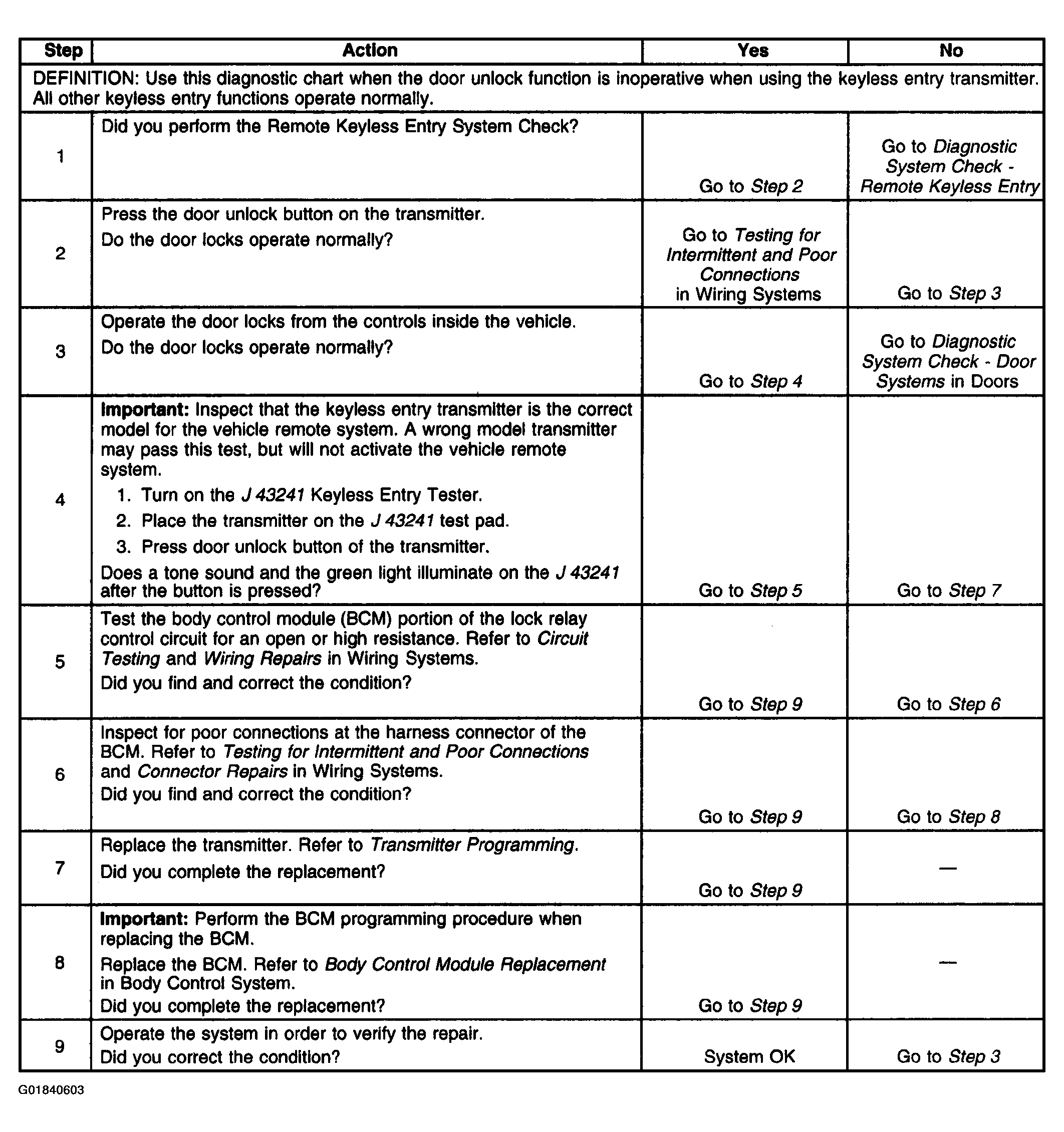

Fig 1: Door Unlock Function Inoperative With Transmitter

G01840603

Courtesy of GENERAL MOTORS CORP.
