Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System And Washer System
>>
Schematic & Routing Diagrams
Schematic & Routing Diagrams

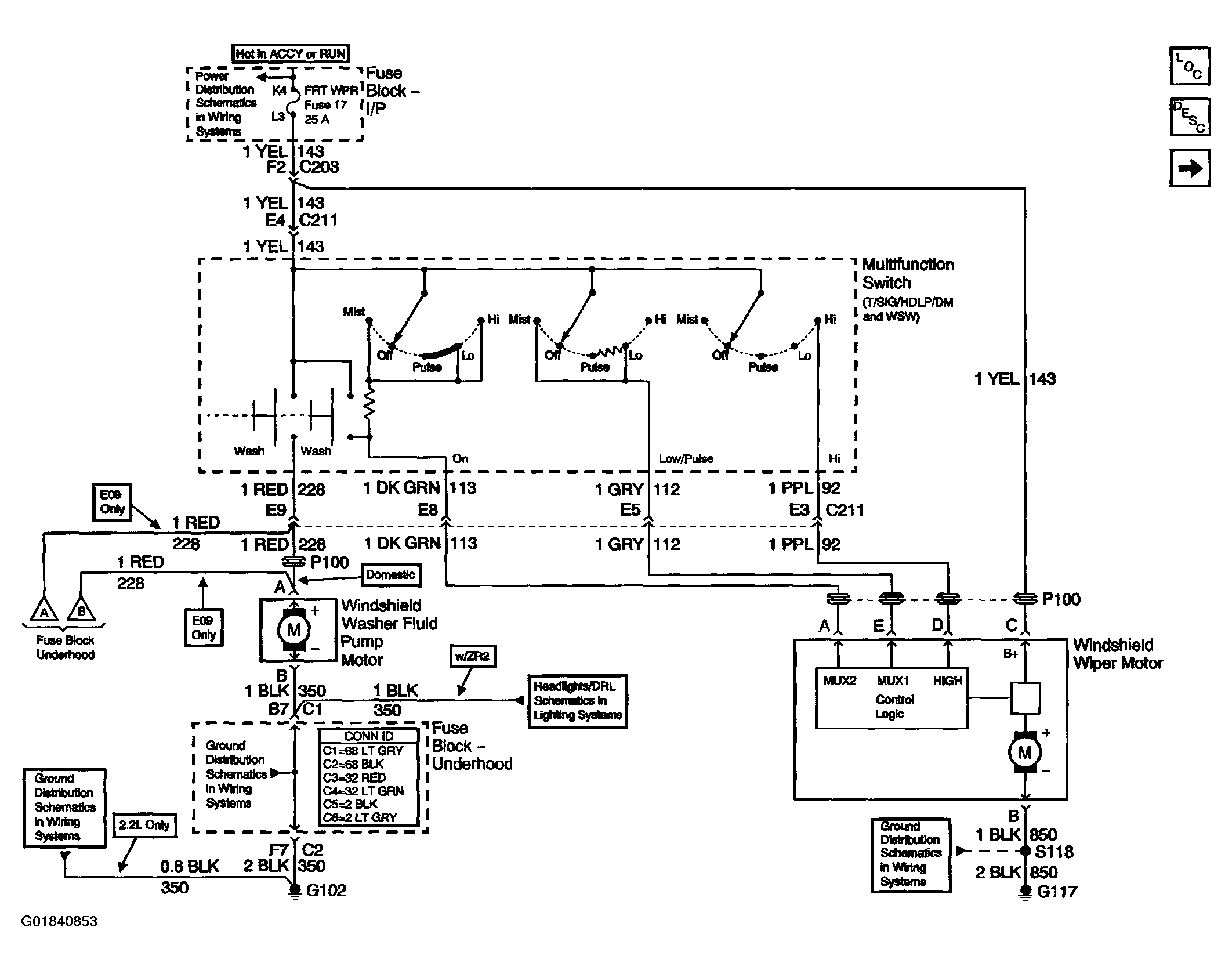

Fig 1: Wiper/Washer System Schematics (Pulse Wipers)
Courtesy of GENERAL MOTORS CORP.

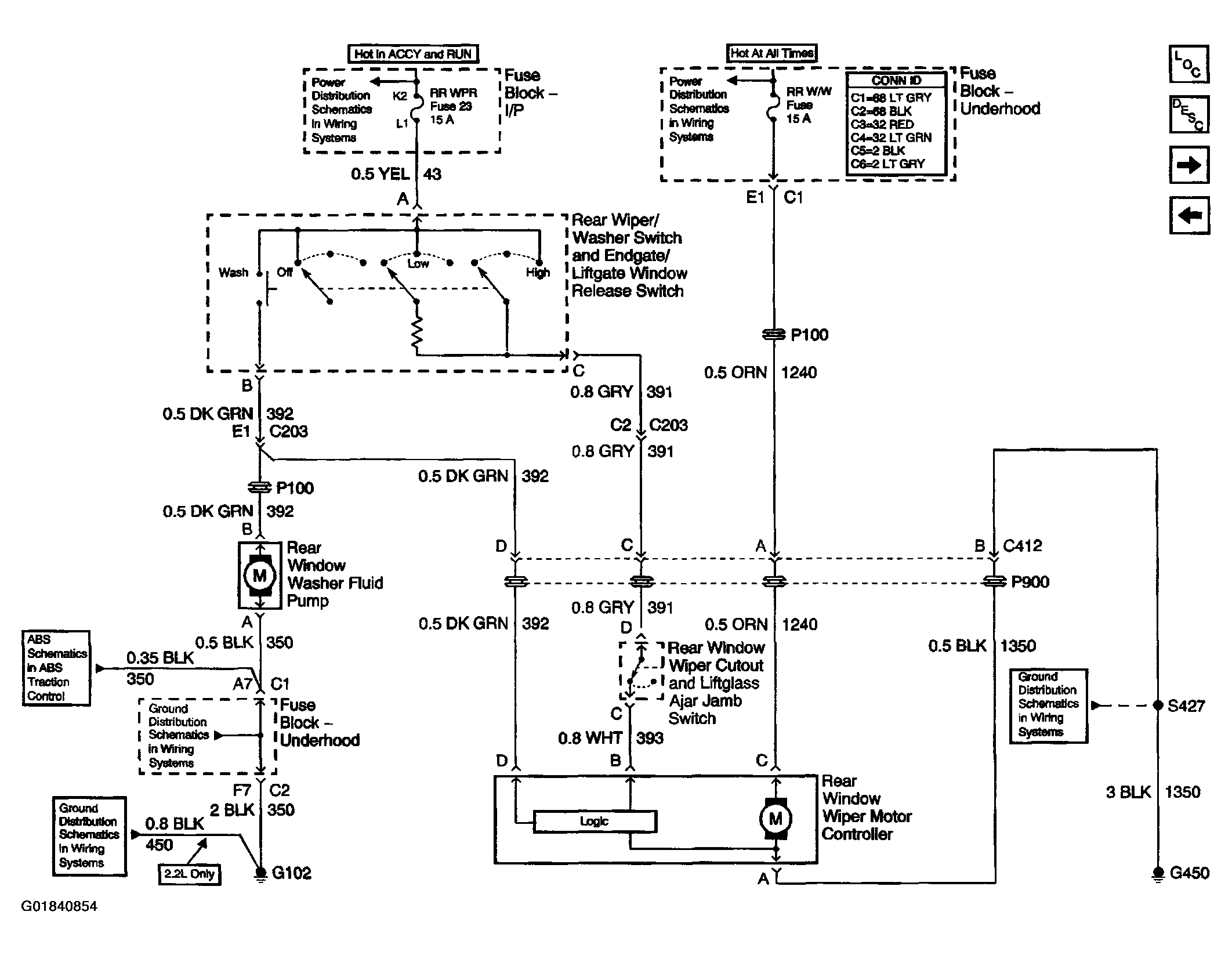

Fig 2: Wiper/Washer System Schematics (Rear Wipers)
Courtesy of GENERAL MOTORS CORP.

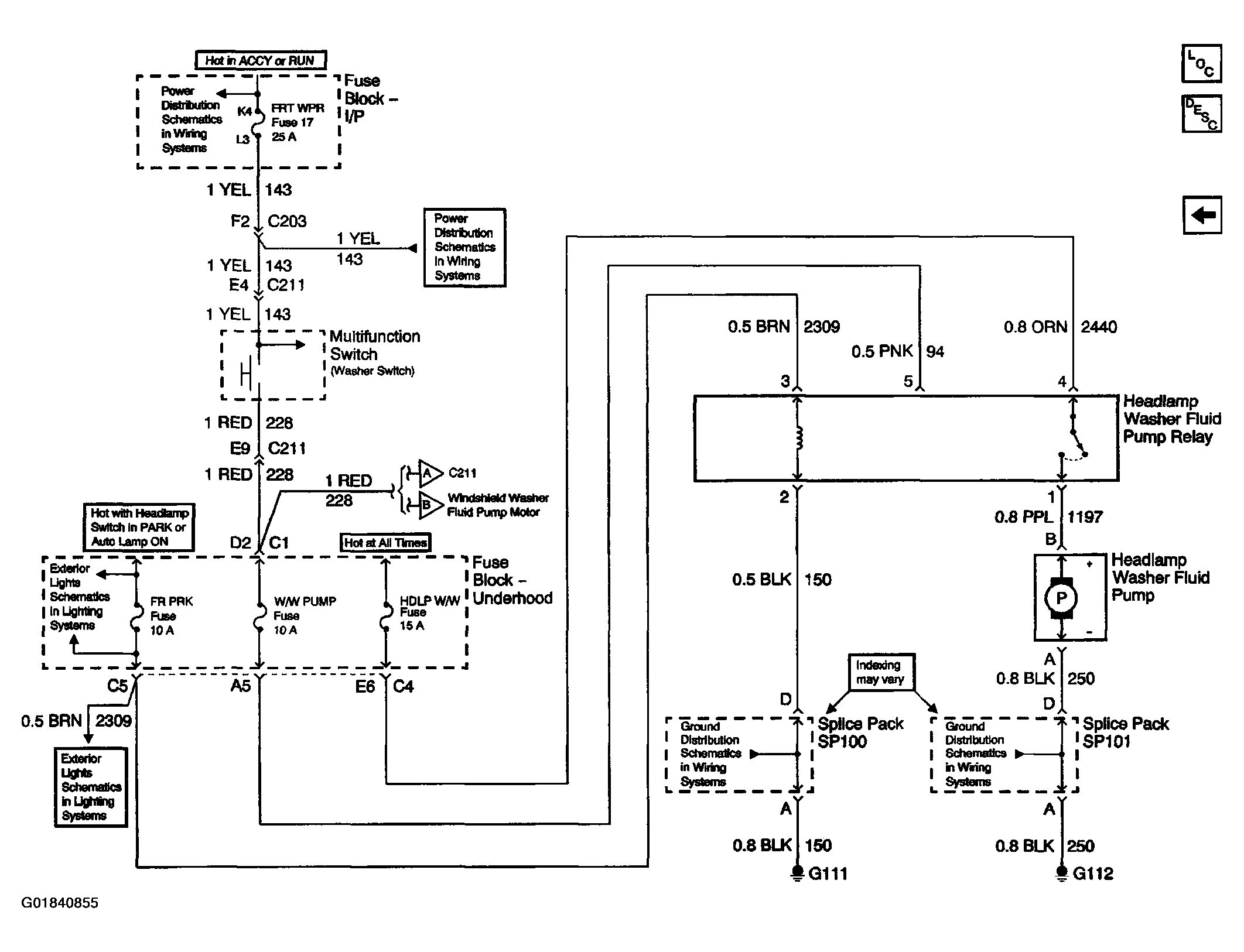

Fig 3: Wiper/Washer System Schematics (Headlamp Washer System - Export Only)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
