Removal Procedure

  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in BODY FRONT END article.
  3. Remove the transmission drive link from the wiper motor crank arm using the J 39232  .

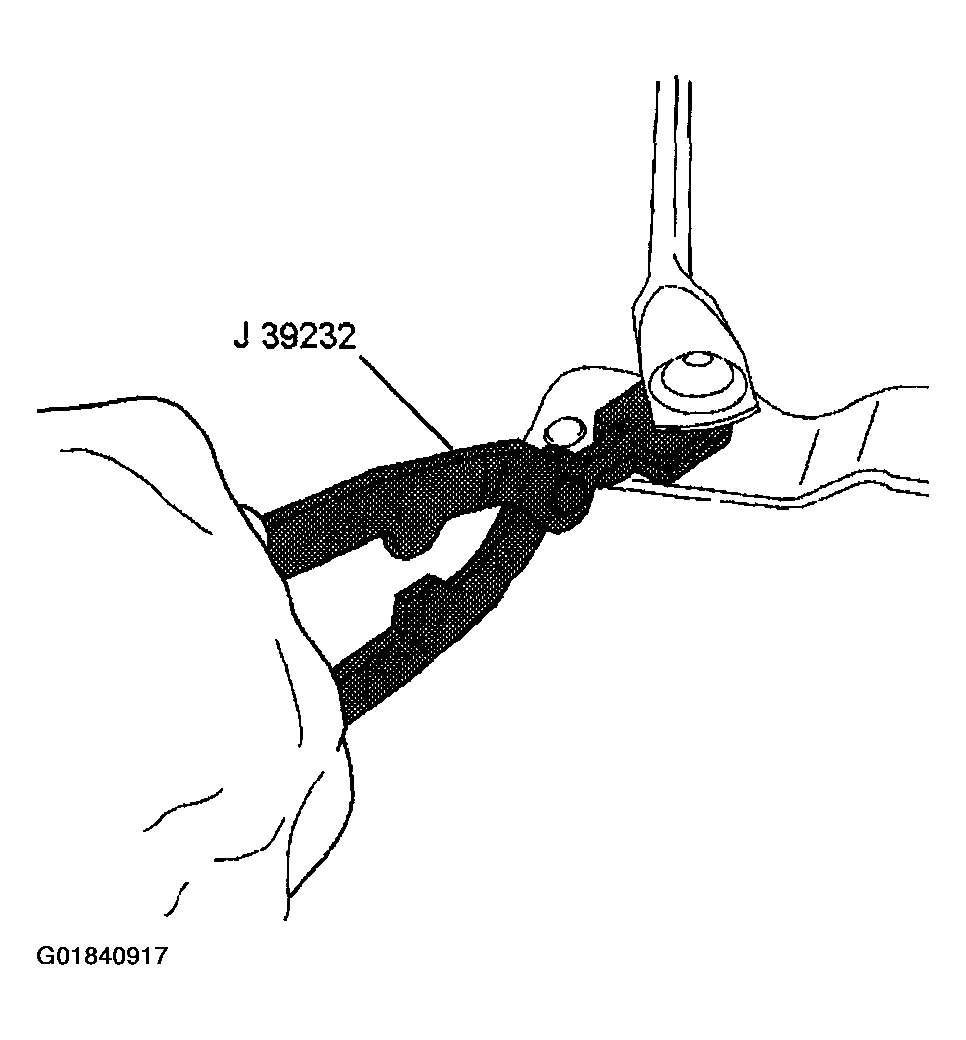

    Fig 1: Locating Wiper Motor Drive Link
    G01840917Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission screws.
  5. Remove the transmission from the vehicle through the access openings in the top of the cowl.

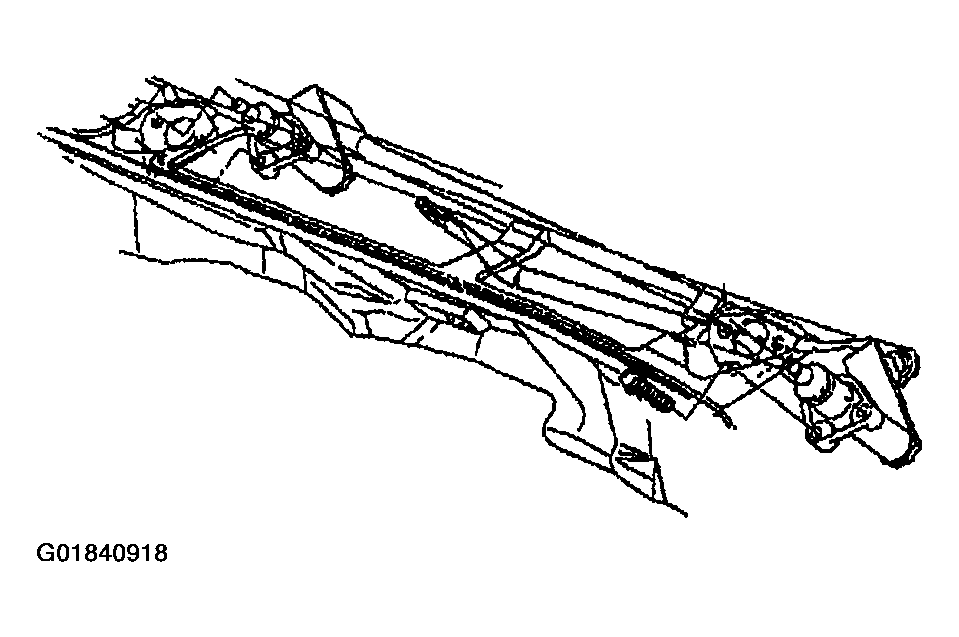

    Fig 2: Locating Transmission Assembly
    G01840918Courtesy of GENERAL MOTORS CORP.
