Removal Procedure

  1. Remove the interior trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE or TRIM PANEL REPLACEMENT - LIFT GATE in BODY REAR END article.
  2. Remove two screws and the wiper arm park ramp from the vehicle.

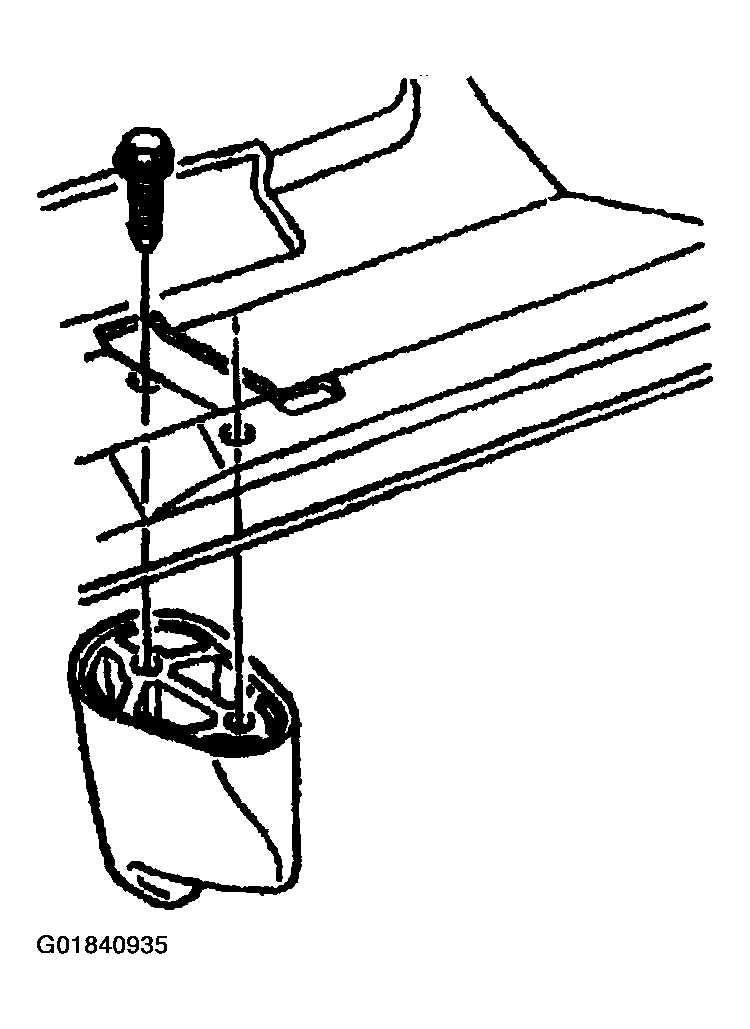

    Fig 1: Locating Rear Wiper Park Ramp
    G01840935Courtesy of GENERAL MOTORS CORP.
