Removal Procedure

  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in BODY FRONT END article.
  3. Remove the transmission from the wiper motor drive link using the J 39232  .

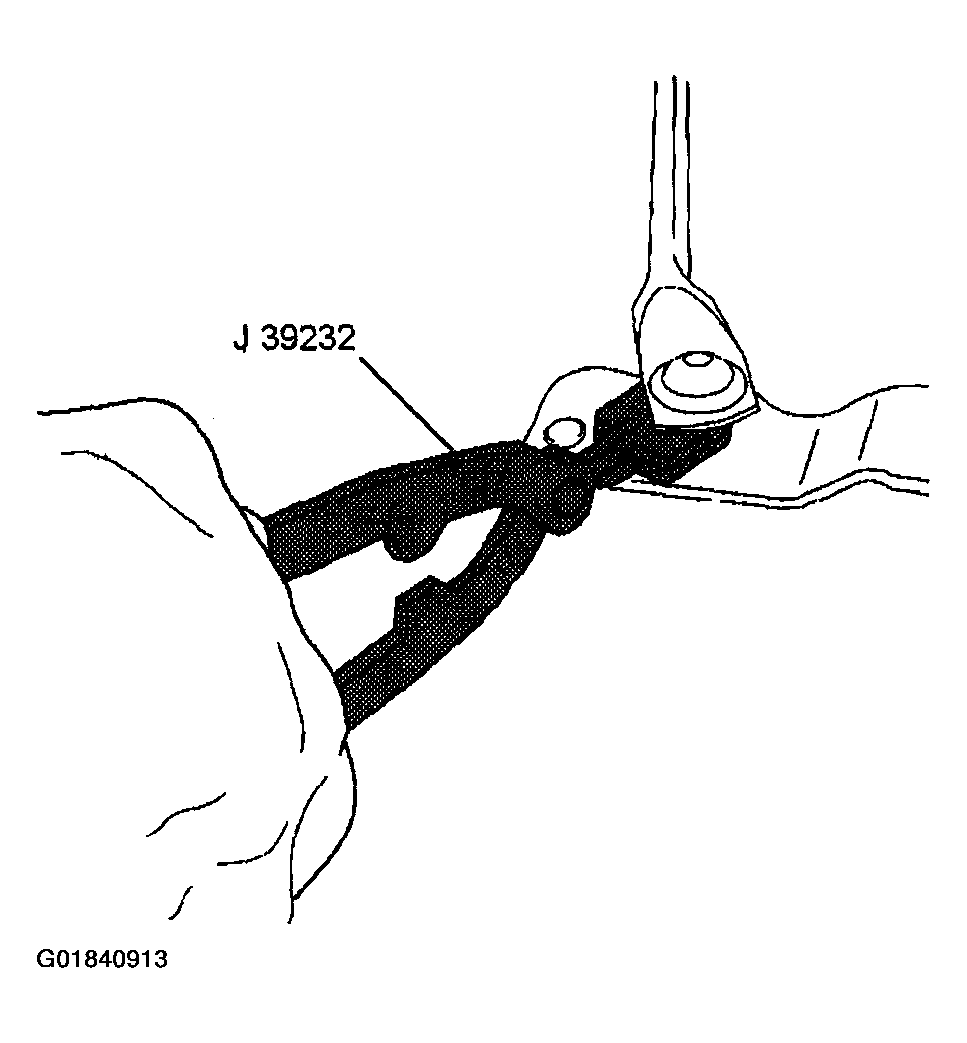

    Fig 1: Locating Wiper Motor Drive Link
    G01840913Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the wiper motor.
  5. Remove the three screws and wiper motor from the vehicle.

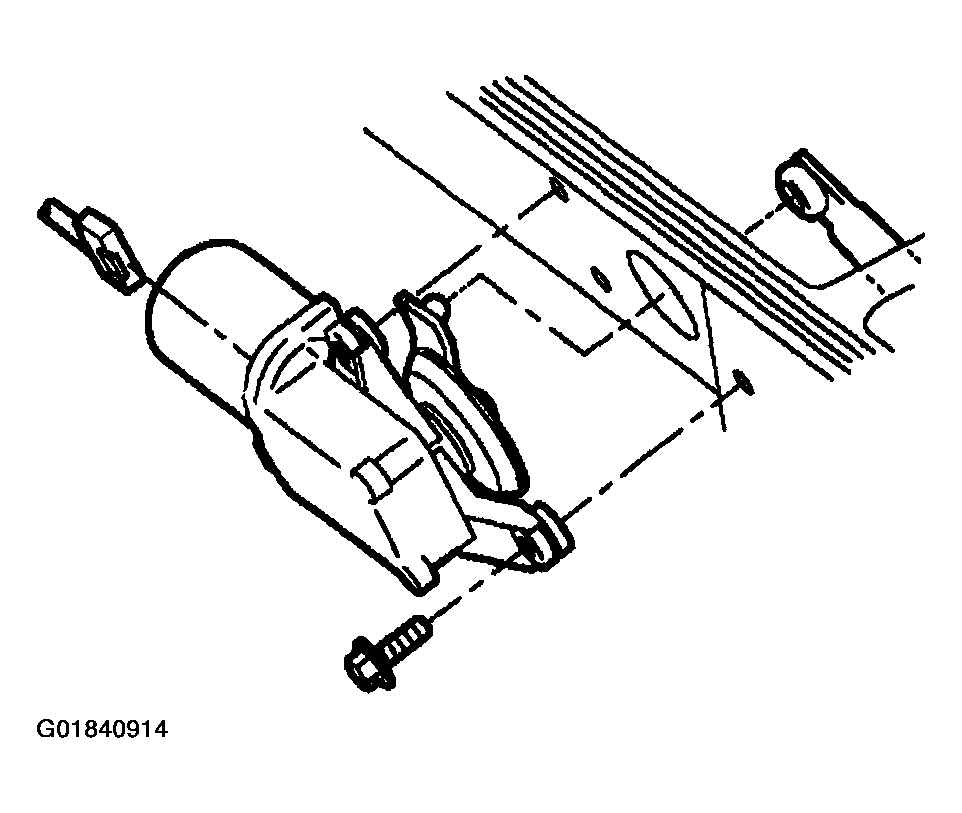

    Fig 2: Locating Wiper Motor Screws
    G01840914Courtesy of GENERAL MOTORS CORP.
