Installation Procedure

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.

Install the wiper motor onto the vehicle with three screws.
Tighten

Tighten the wiper motor mounting screws to 6.5 N.m (57 lb in).

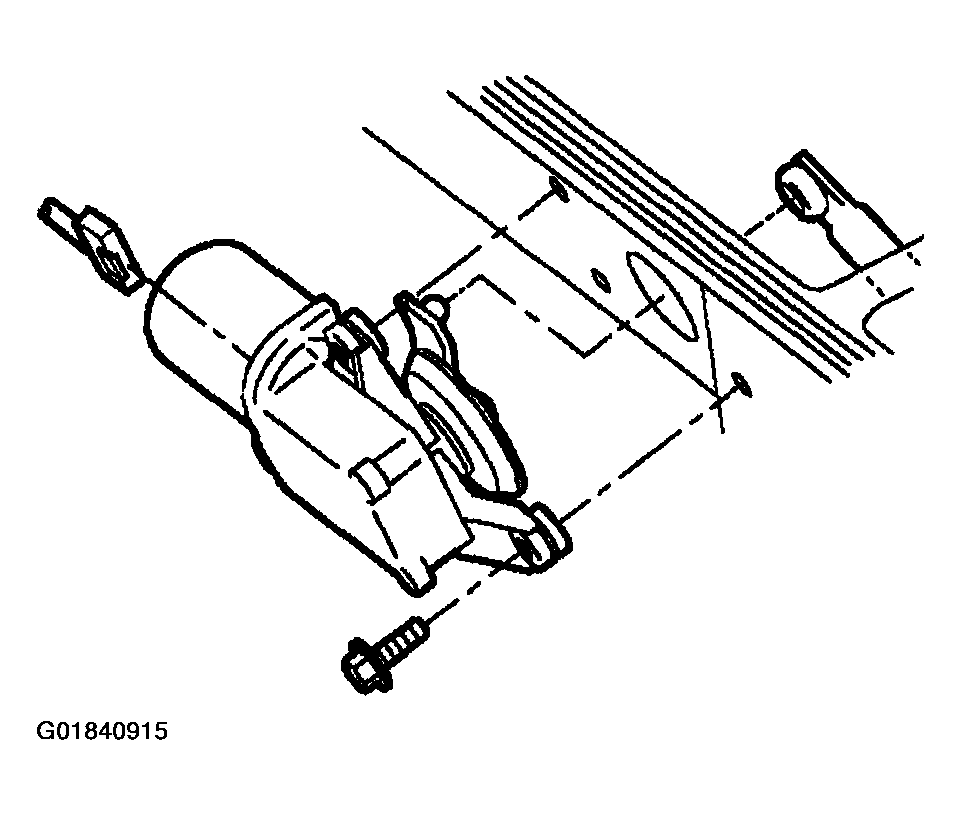

Fig 1: Locating Wiper Motor Screws
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
IMPORTANT:
- Lubricate the socket with white lithium grease (GM P/N 9985885) or equivalent.
- The wiper transmission must be assembled to the crank arm past the second detent so the seal is compressed to a maximum height of 2.5 mm (1 in).
Install the transmission drive link socket onto the crank arm ball of the wiper motor using the J 39529 .

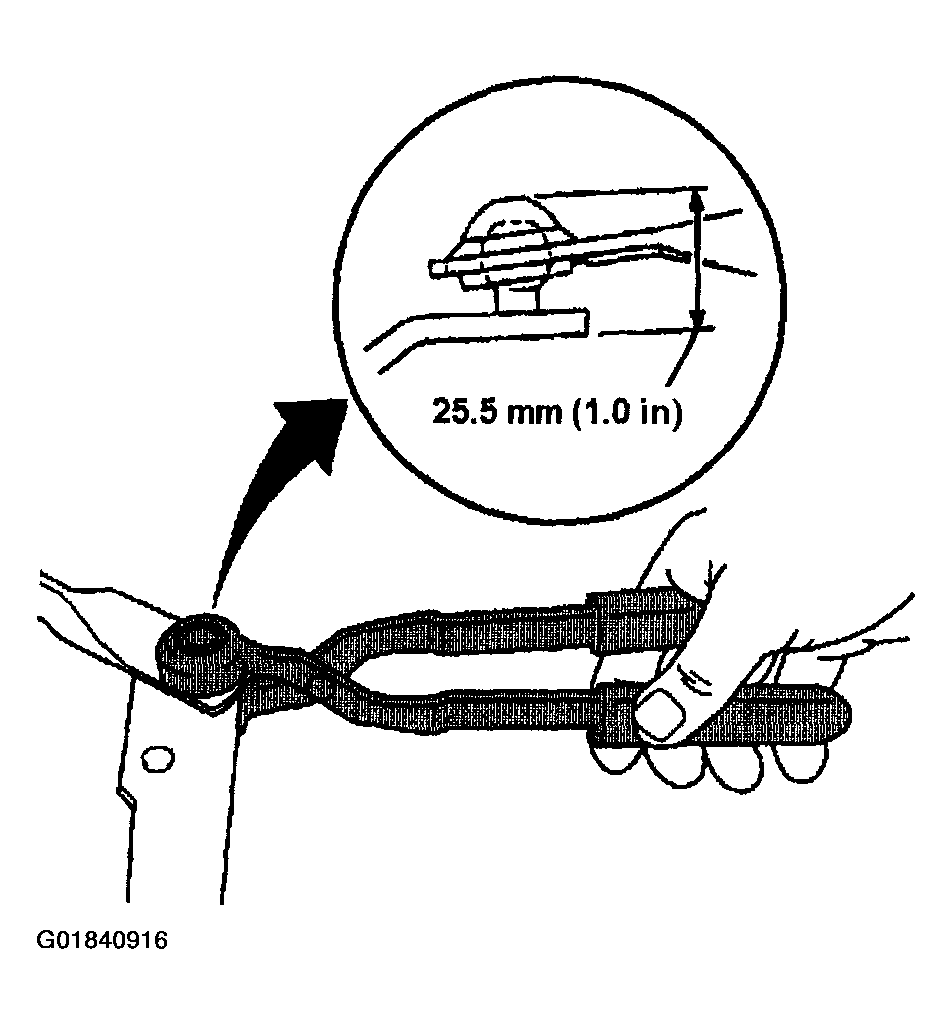

Fig 2: Installing Transmission Drive Link Socket Onto Wiper Motor Crank Arm Ball
Courtesy of GENERAL MOTORS CORP.
Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in BODY FRONT END article.
Install the wiper arms. Refer to WIPER ARM REPLACEMENT .
