Removal Procedure

  1. Remove the wiper arm from the shaft. Refer to WIPER ARM REPLACEMENT .
  2. Remove the nut and the spacer from the shaft.
    Fig 1: Locating Wiper Arm Shaft Nut & Spacer
    G01840931Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE or TRIM PANEL REPLACEMENT - LIFT GATE in BODY REAR END article.
  4. Disconnect the electrical connector from the controller.
  5. Remove two screws and the wiper motor from the vehicle.

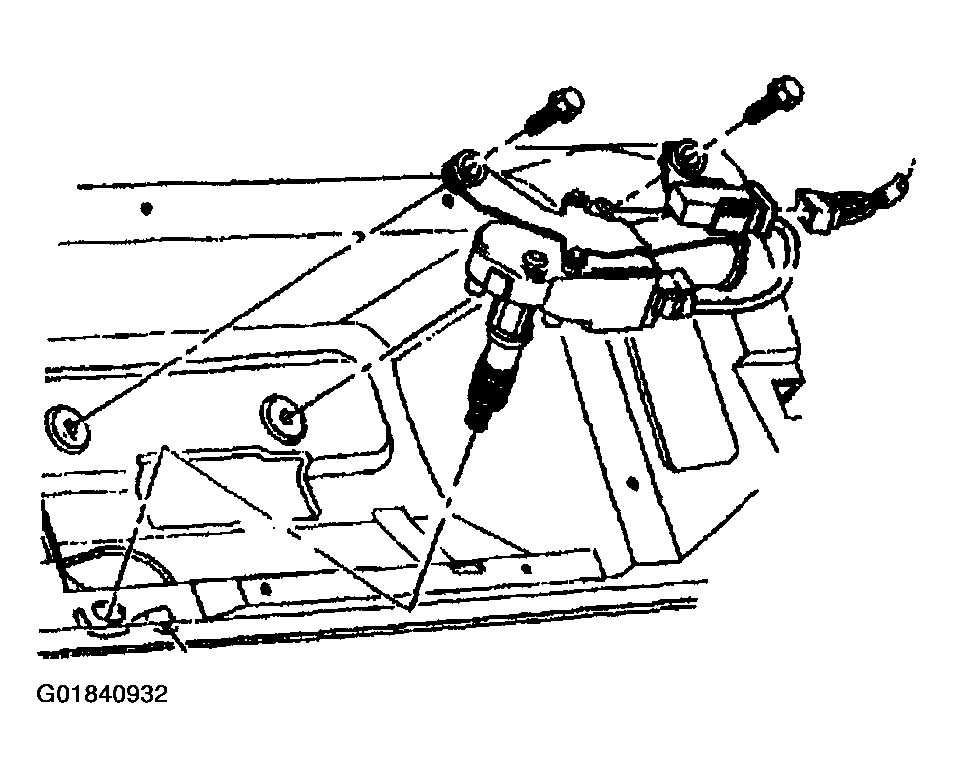

    Fig 2: Locating Rear Wiper Motor Components
    G01840932Courtesy of GENERAL MOTORS CORP.
