Removal Procedure

  1. Put the wiper arm in the park position.
  2. Remove the washer hose from the vehicle connector.
  3. Remove the cap from the wiper arm.
  4. Remove the nut from the wiper arm.

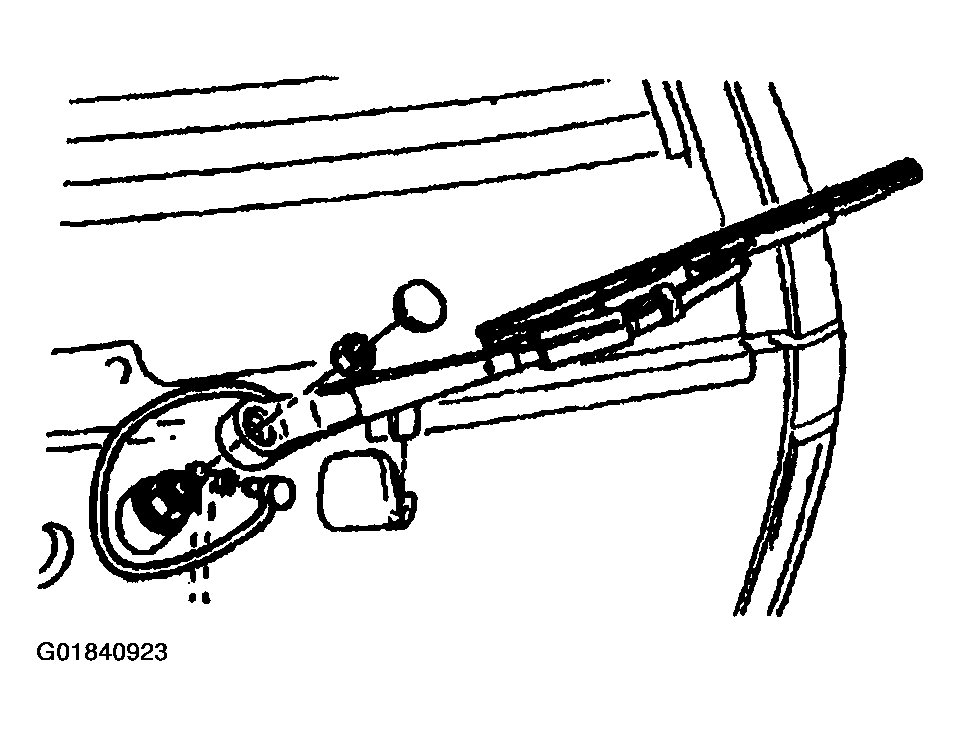

    Fig 1: Locating Rear Wiper Arm Components
    G01840923Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiper arm from the wiper motor shaft.
