Wiper Arm Blade Replacement - Rear: Notes

IMPORTANT: Do not to allow the wiper arm to fall back and strike the window.

Lift the wiper arm off of the window.
Push in the locking tab of the wiper blade clip and pull downward on the wiper blade.

Fig 1: Releasing Wiper Blade Clip Locking Tab
Courtesy of GENERAL MOTORS CORP.
Remove the wiper blade pivot from the inside radius of the wiper arm.
Bring the wiper arm out through the opening in the wiper blade.

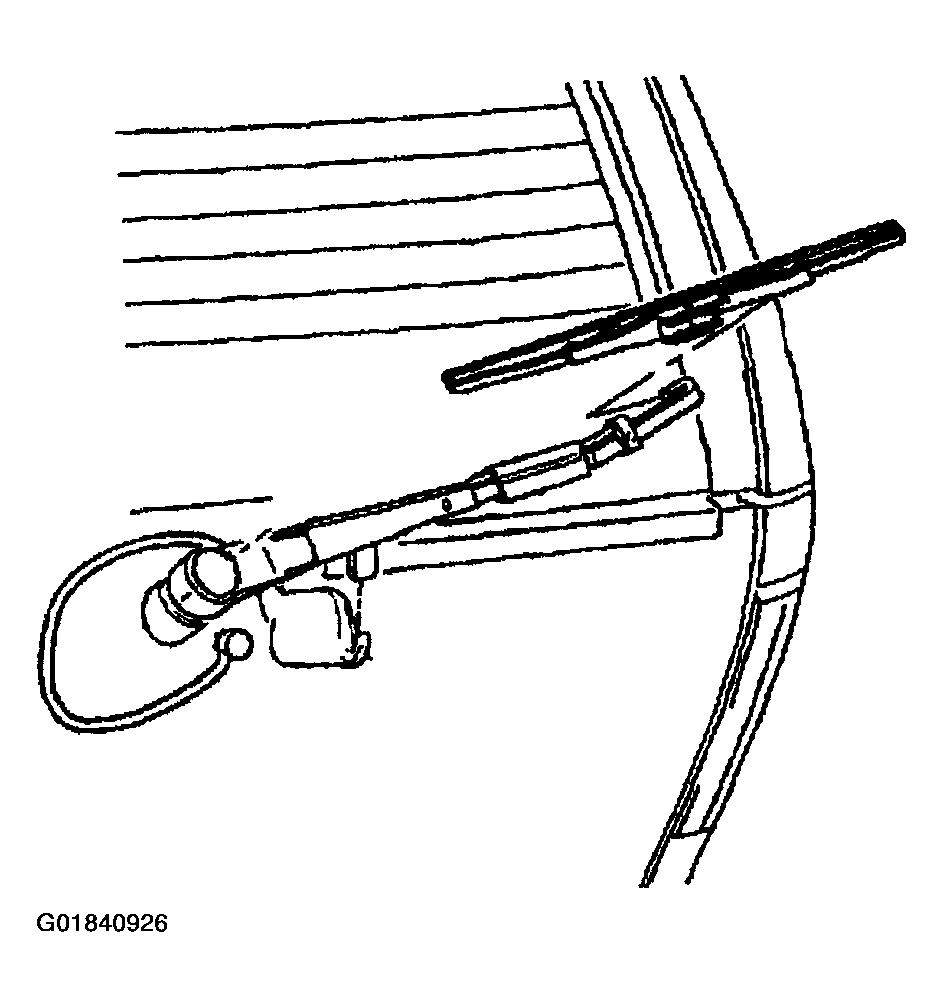

Fig 2: Locating Rear Wiper Arm Components
Courtesy of GENERAL MOTORS CORP.
