Removal Procedure

  1. Remove the washer solvent from the solvent container.
  2. Disconnect the electrical connectors from the washer pumps.
  3. Disconnect the hoses from the washer pumps.

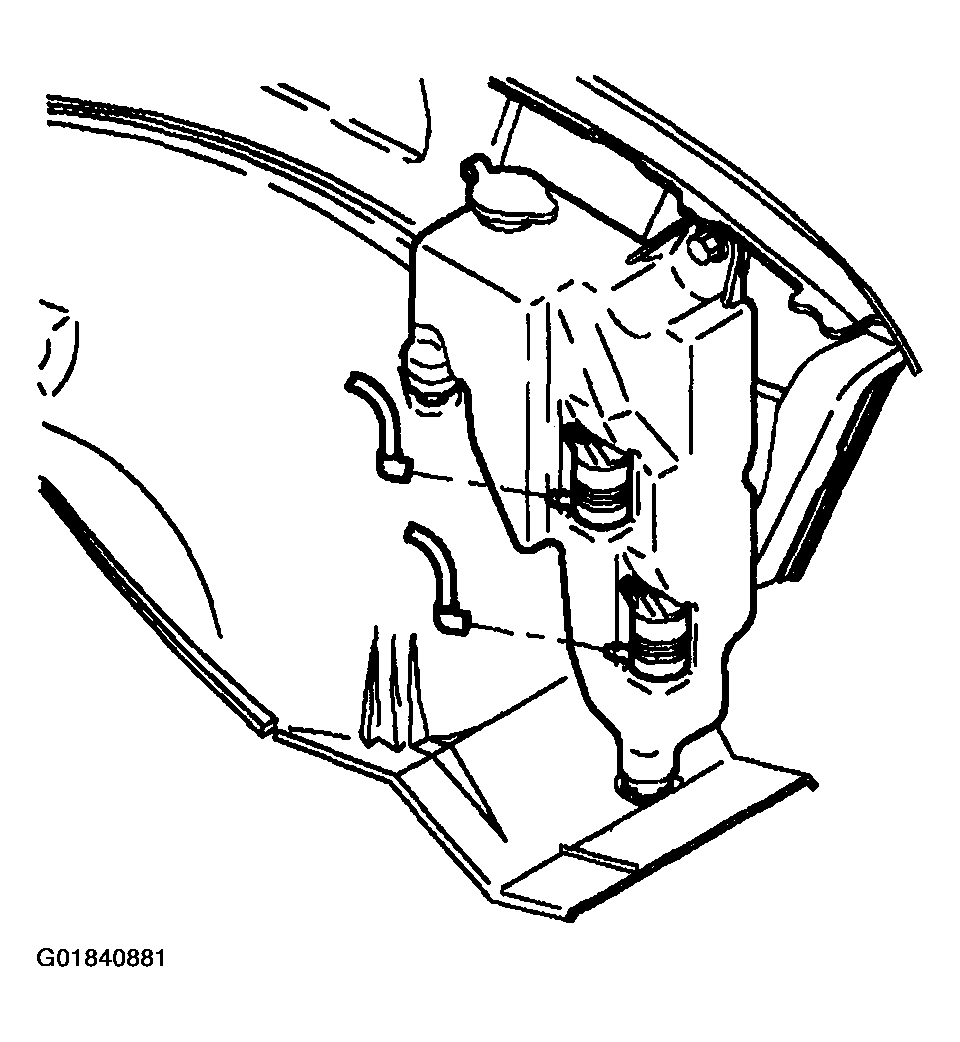

    Fig 1: Locating Washer Pumps Hoses
    G01840881Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw and the solvent container from the vehicle.

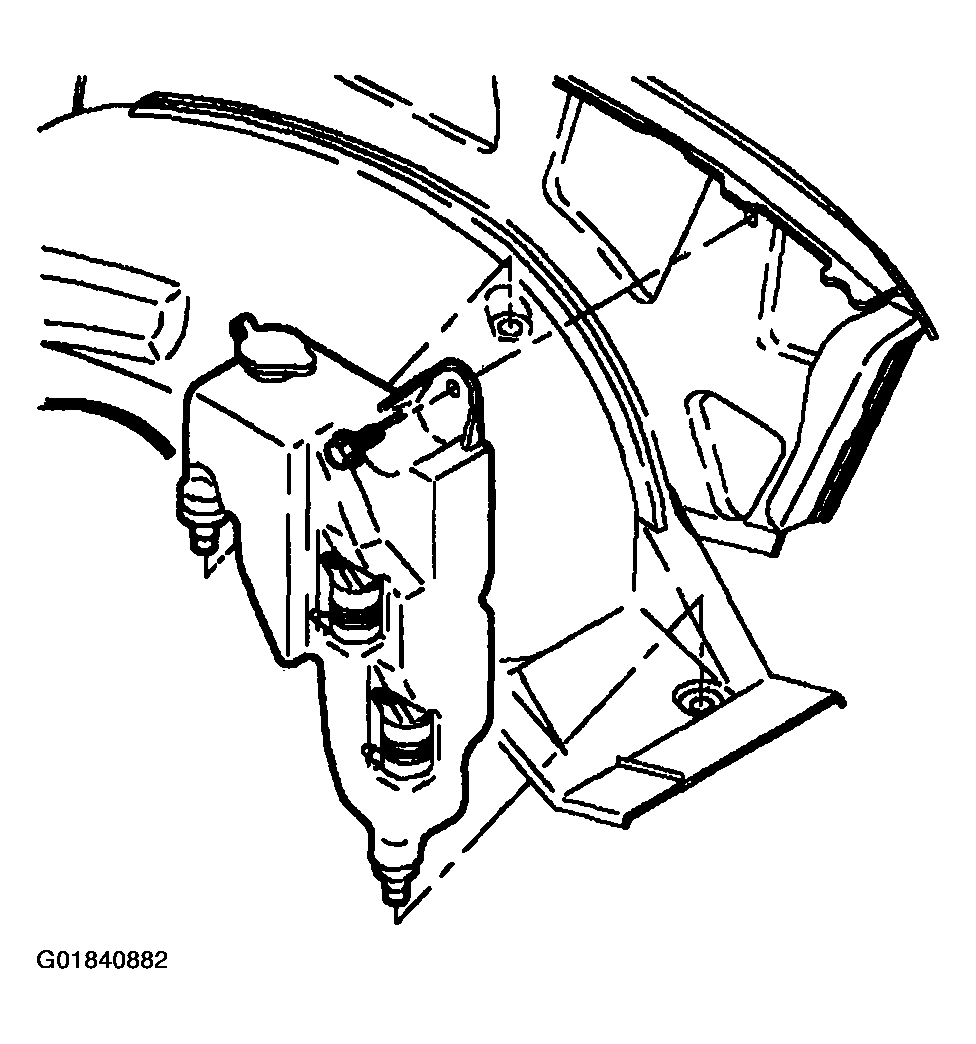

    Fig 2: Locating Solvent Container Screw
    G01840882Courtesy of GENERAL MOTORS CORP.
  5. Remove the washer pumps and grommets from the solvent container.

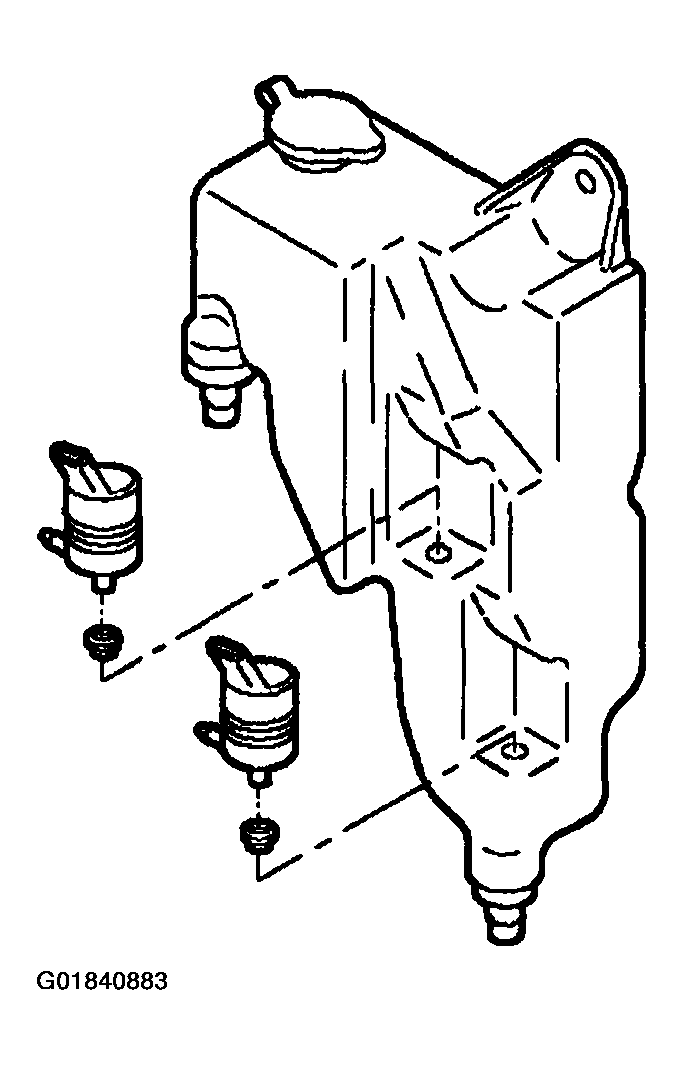

    Fig 3: Locating Solvent Container Washer Pumps & Grommets
    G01840883Courtesy of GENERAL MOTORS CORP.
