Installation Procedure

  1. Install the washer pumps and grommets onto the solvent container.

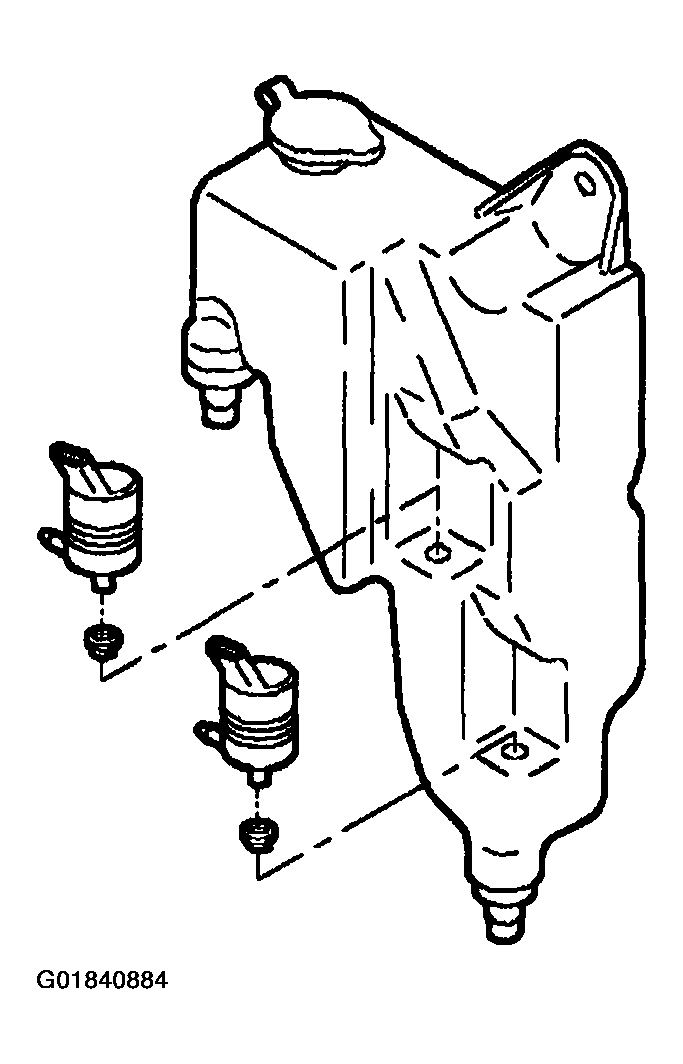

    Fig 1: Locating Solvent Container Washer Pumps & Grommets
    G01840884Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the solvent container onto the vehicle with the screw.

    Tighten

    Tighten the screw to 3 N.m (27 lb in).

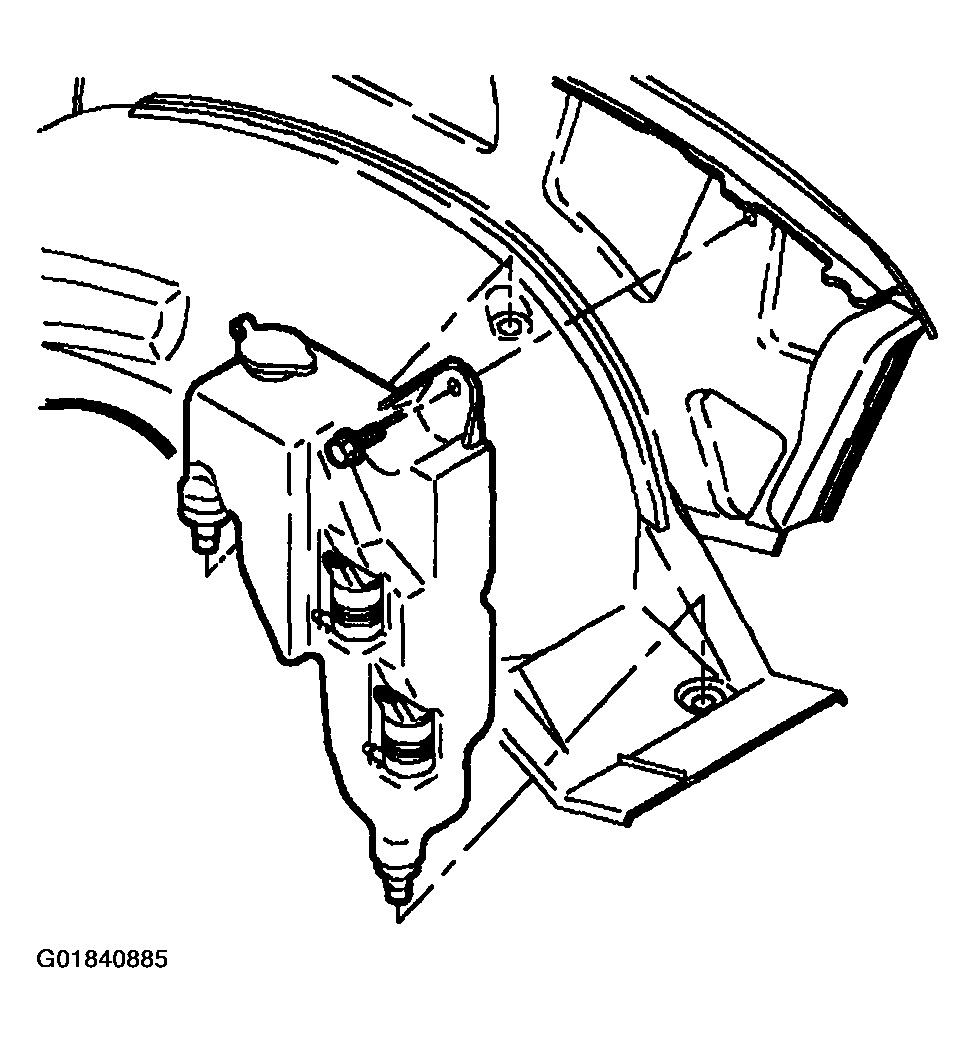

    Fig 2: Locating Solvent Container Screw
    G01840885Courtesy of GENERAL MOTORS CORP.
  3. Connect the hoses to the washer pumps.
  4. Connect the electrical connectors to the washer pumps.
  5. Refill the washer solvent in the solvent container.

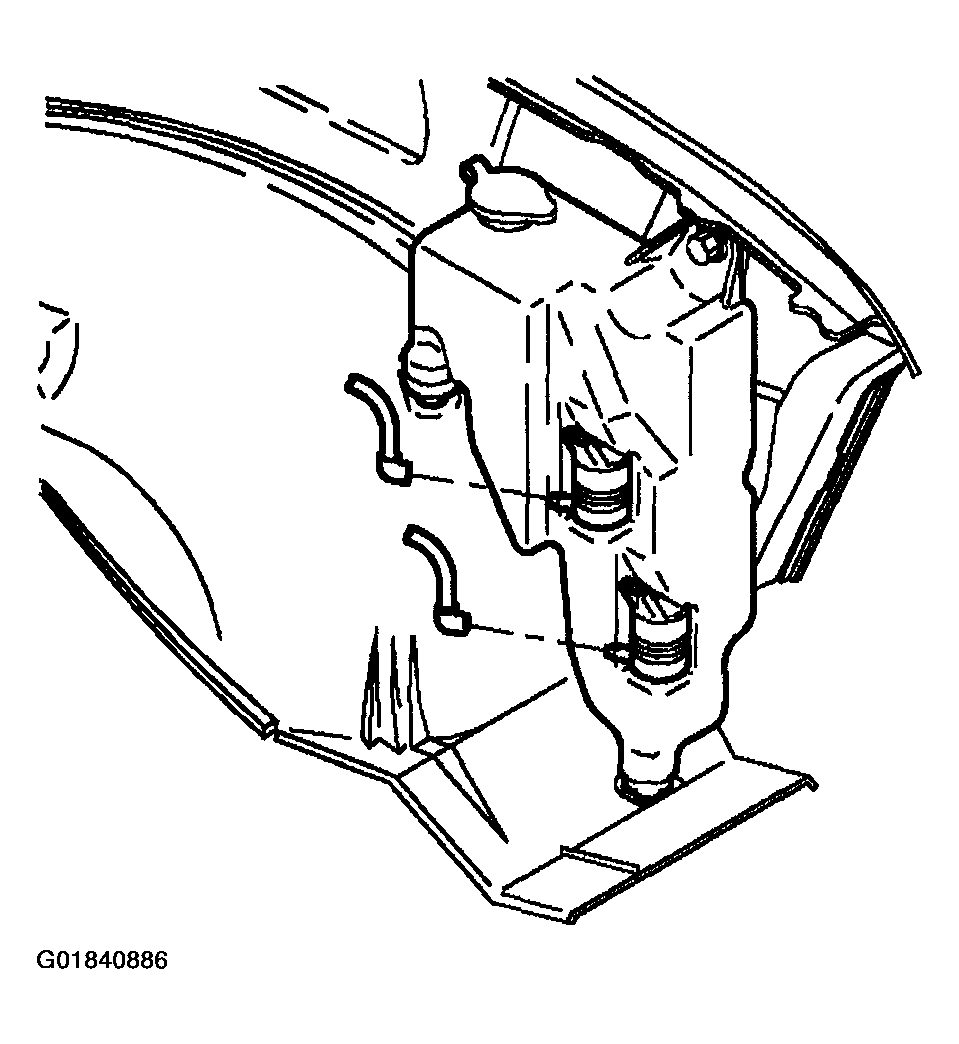

    Fig 3: Locating Washer Pumps Hoses
    G01840886Courtesy of GENERAL MOTORS CORP.
