Removal Procedure

  1. Raise and support the hood.
  2. Disconnect the washer hose from the nozzle.

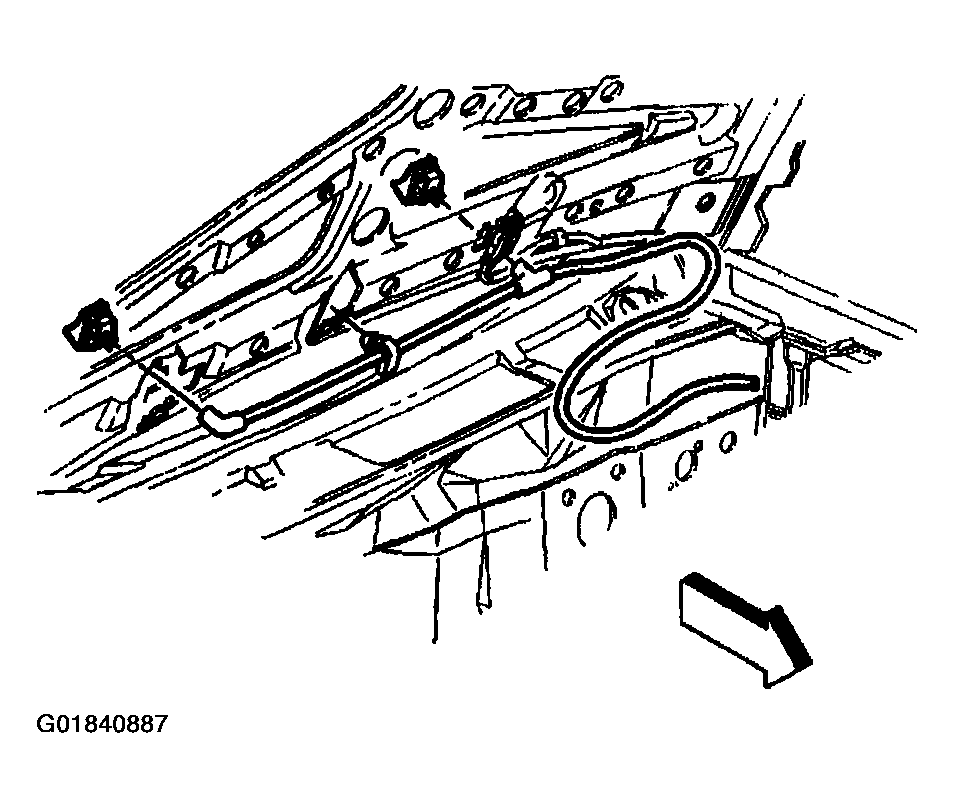

    Fig 1: Locating Washer Hose & Nozzles
    G01840887Courtesy of GENERAL MOTORS CORP.
  3. Remove the nozzle.
