Removal Procedure

  1. Remove the hose from the nozzles.
  2. Remove the hose clip from the hood.

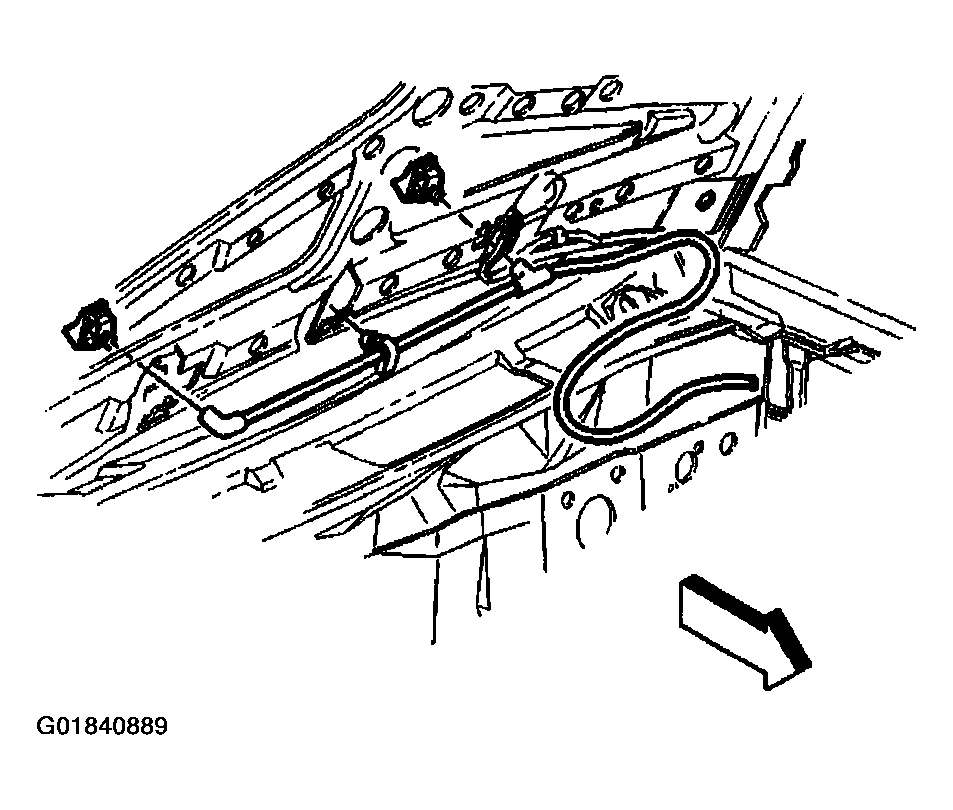

    Fig 1: Locating Washer Hose & Nozzles
    G01840889Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the hose from the pump.

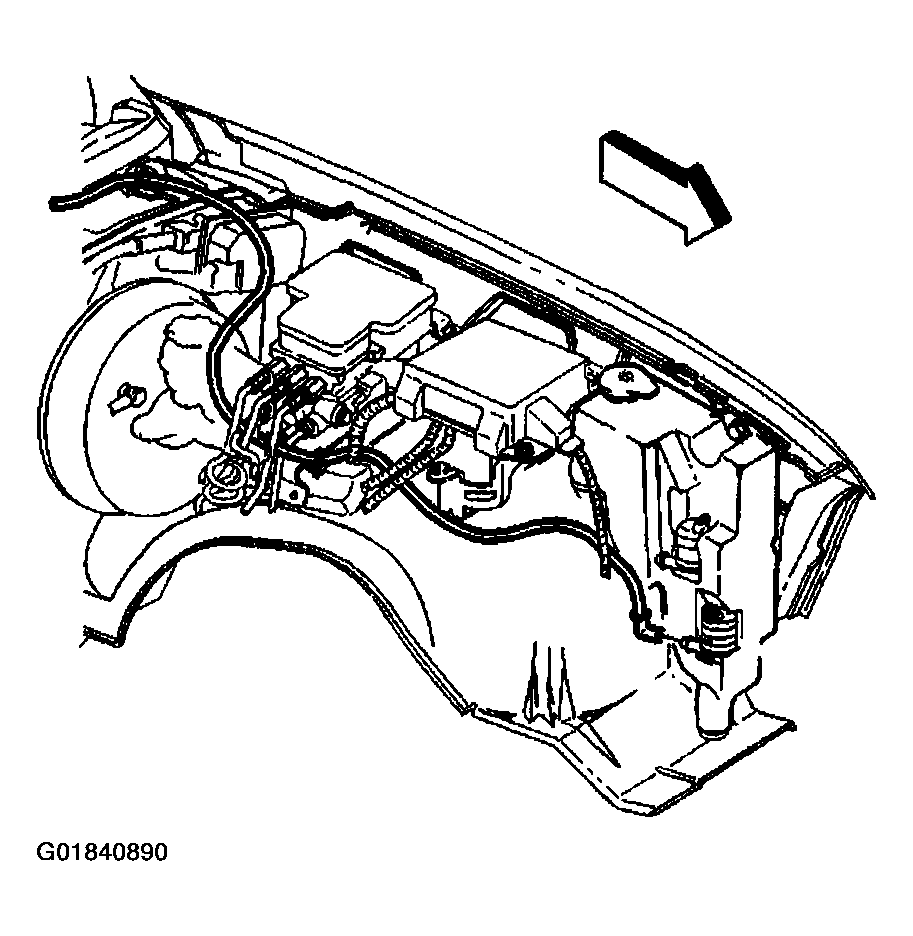

    Fig 2: Locating Washer Pump Hose
    G01840890Courtesy of GENERAL MOTORS CORP.
  4. Remove the hose.
