Installation Procedure

  1. Route the hose over the left wheelhouse panel.
  2. Apply lubricant to the hose.
  3. Install the hose to the pump.

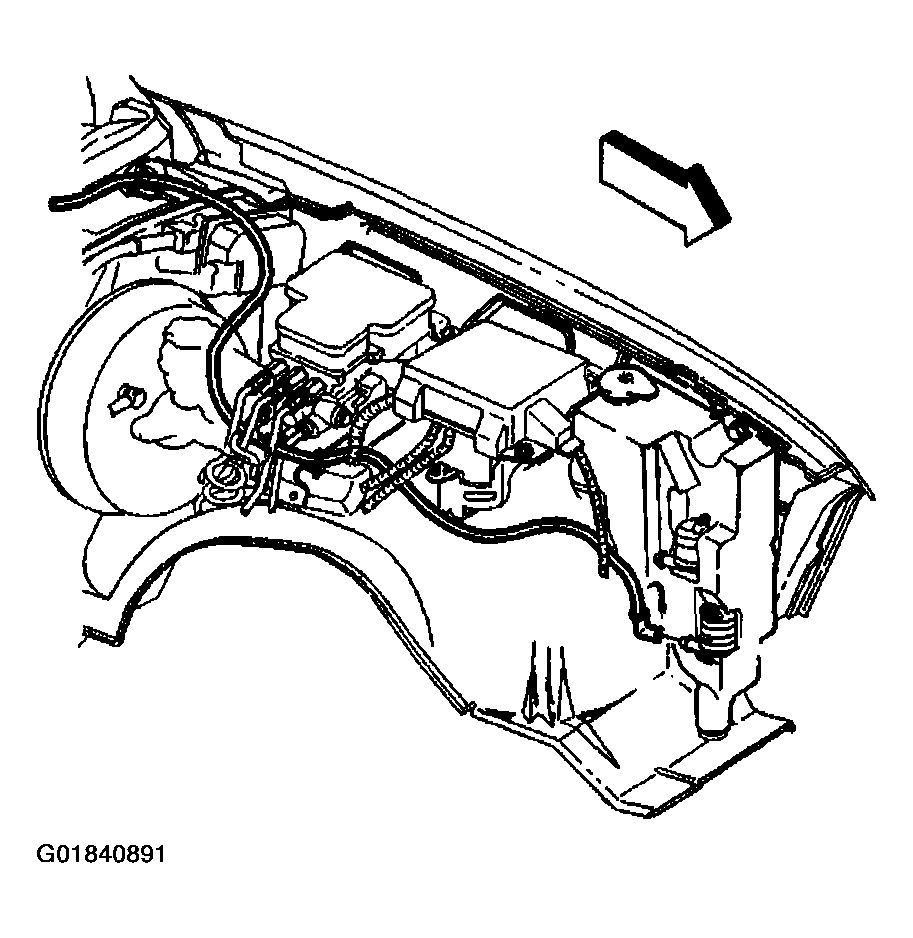

    Fig 1: Locating Washer Pump Hose
    G01840891Courtesy of GENERAL MOTORS CORP.
  4. Apply lubricant to the hose nozzle connections.
  5. Install the hose to the nozzles.

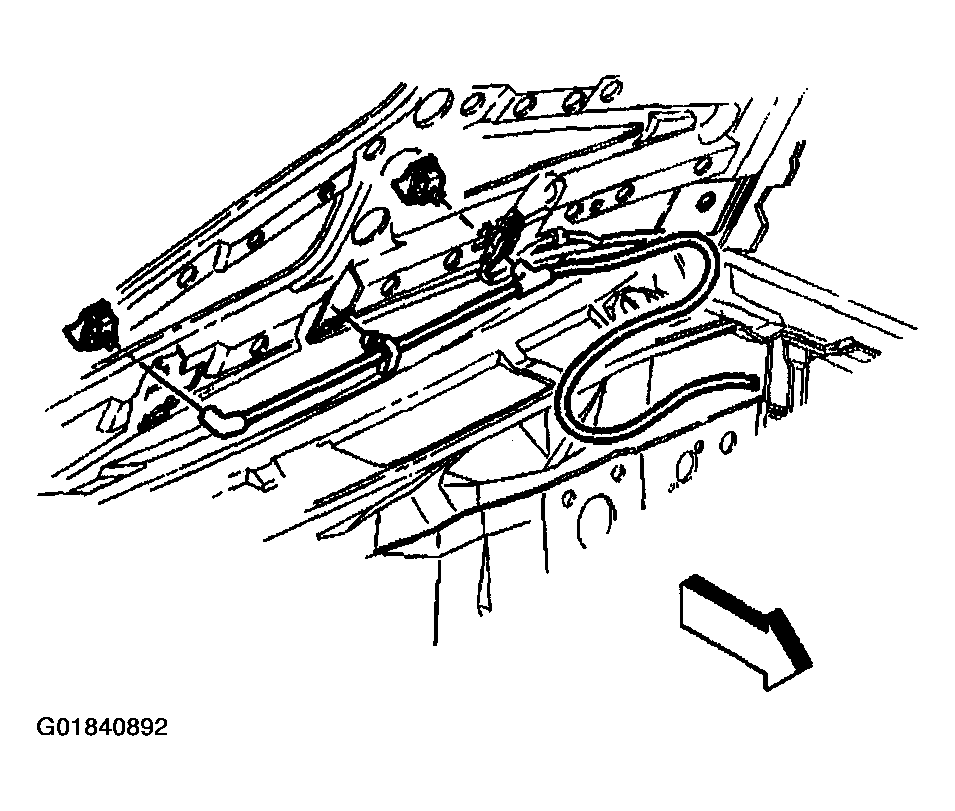

    Fig 2: Locating Washer Hose & Nozzles
    G01840892Courtesy of GENERAL MOTORS CORP.
  6. Install the hose clip to the hood.
