Removal Procedure

  1. Remove the left front seat. Refer to SEAT REPLACEMENT - BUCKET in SEATS article.
  2. Remove the rear seat. Refer to SEAT REPLACEMENT - REAR (2-DOOR UTILITY) , SEAT REPLACEMENT - REAR (4-DOOR UTILITY) or SEAT REPLACEMENT - REAR (CREW CAB) in SEATS article.
  3. Remove the endgate/liftgate door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE or DOOR SILL PLATE REPLACEMENT - END GATE in INTERIOR TRIM article.
  4. Remove the left front and left rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT in INTERIOR TRIM article.
  5. Remove the left body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in INTERIOR TRIM article.
  6. Remove the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT HINGE PILLAR in INTERIOR TRIM article.
  7. Fold over the left side of the carpet to allow access to the body harness. Refer to MAT/CARPET REPLACEMENT - FRONT FLOOR (PICKUP) , MAT/CARPET REPLACEMENT - FRONT FLOOR (EXTENDED CAB) or MAT/CARPET REPLACEMENT - FRONT FLOOR (UTILITY) and CARPET REPLACEMENT - REAR in INTERIOR TRIM article.
  8. Disconnect the washer hose connection (1) from the body harness (2) at the endgate.

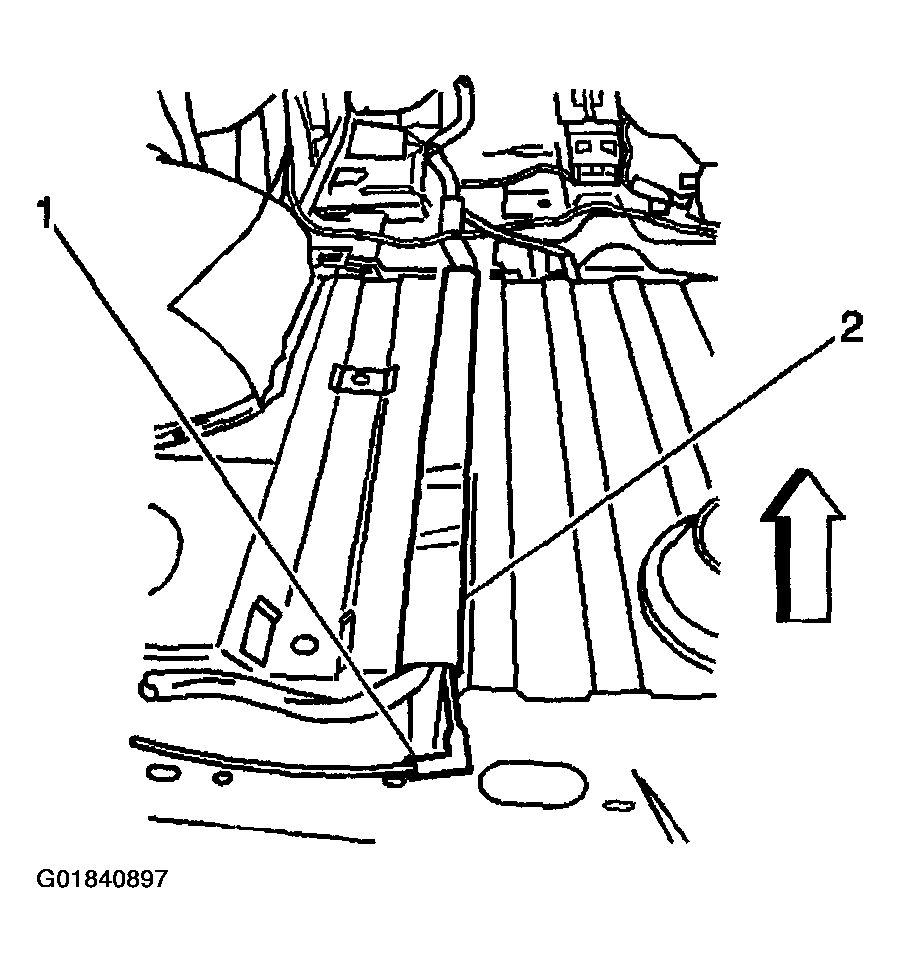

    Fig 1: Locating Endgate Washer Hose Connection & Body Harness
    G01840897Courtesy of GENERAL MOTORS CORP.
  9. Remove the air cleaner assembly.
  10. Disconnect the hose (1) from the rear washer pump.

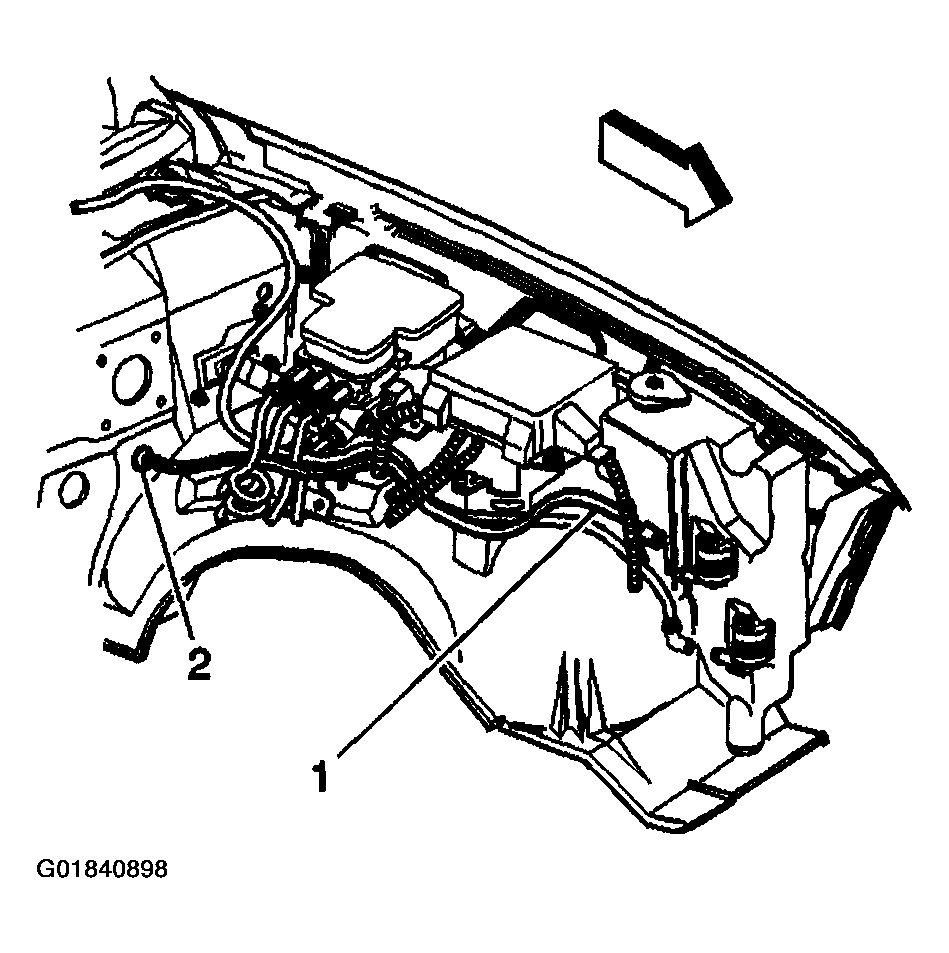

    Fig 2: Locating Rear Washer Pump Hose & Hose Grommet
    G01840898Courtesy of GENERAL MOTORS CORP.
  11. Install a plug to the rear washer pump nozzle to prevent washer fluid loss.
  12. Push the hose grommet (2) in through the bulkhead.

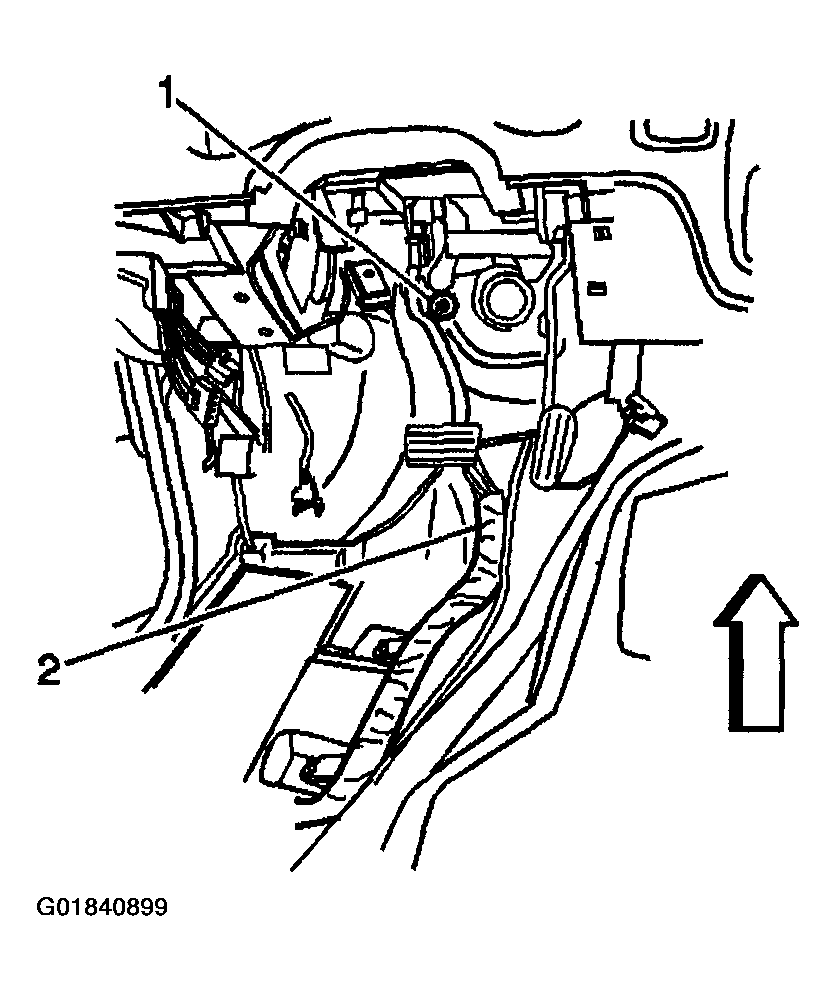

    Fig 3: Locating Washer Hose & Hose Bulkhead Grommet
    G01840899Courtesy of GENERAL MOTORS CORP.
  13. Pull the washer hose (1) into the vehicle though the bulkhead.
  14. Cut the old washer hose off where it enters the body wiring harness (2).
  15. Remove the hose end from the vehicle.
