Installation Procedure

  1. Install the hose to the vehicle.
  2. Route the hose (1) out though the bulkhead.
  3. Route the hose along the body harness (2), and tape the hose to the body harness with 3 wraps of electrical tape every 100 mm (4 in).

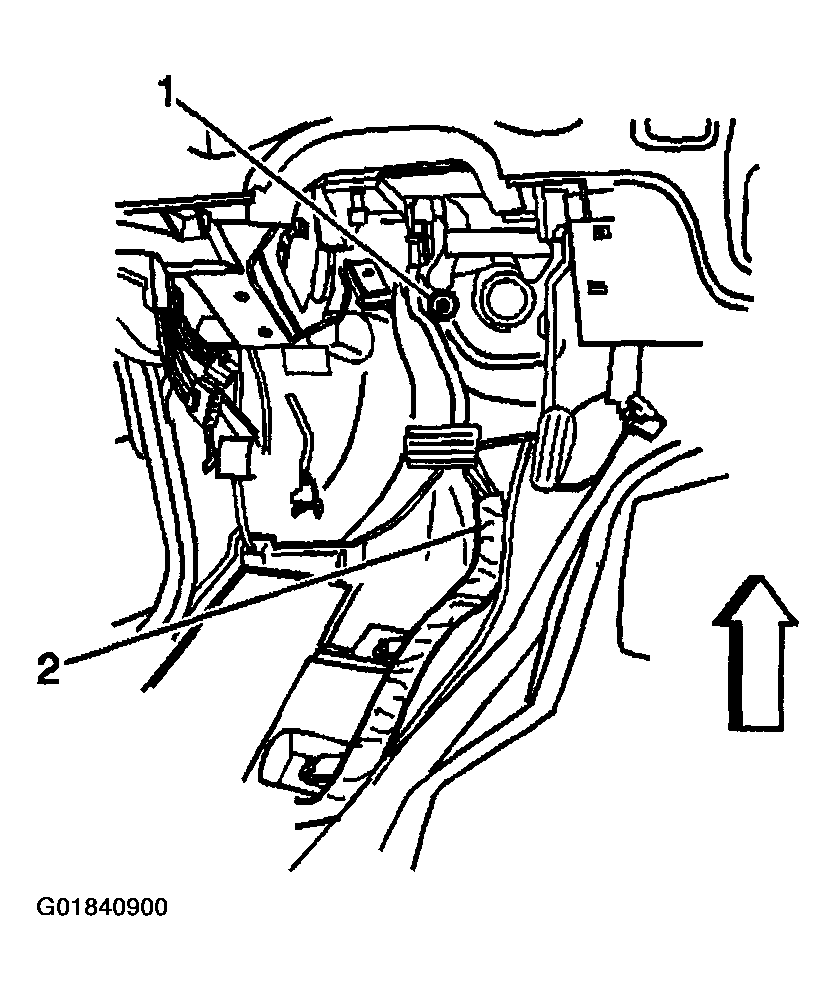

    Fig 1: Locating Washer Hose & Hose Bulkhead Grommet
    G01840900Courtesy of GENERAL MOTORS CORP.
  4. Seat the hose grommet (2) into the bulkhead.
  5. Remove the plug from the rear washer pump nozzle.
  6. Connect the hose (1) to the rear washer pump.
  7. Install the air cleaner assembly.

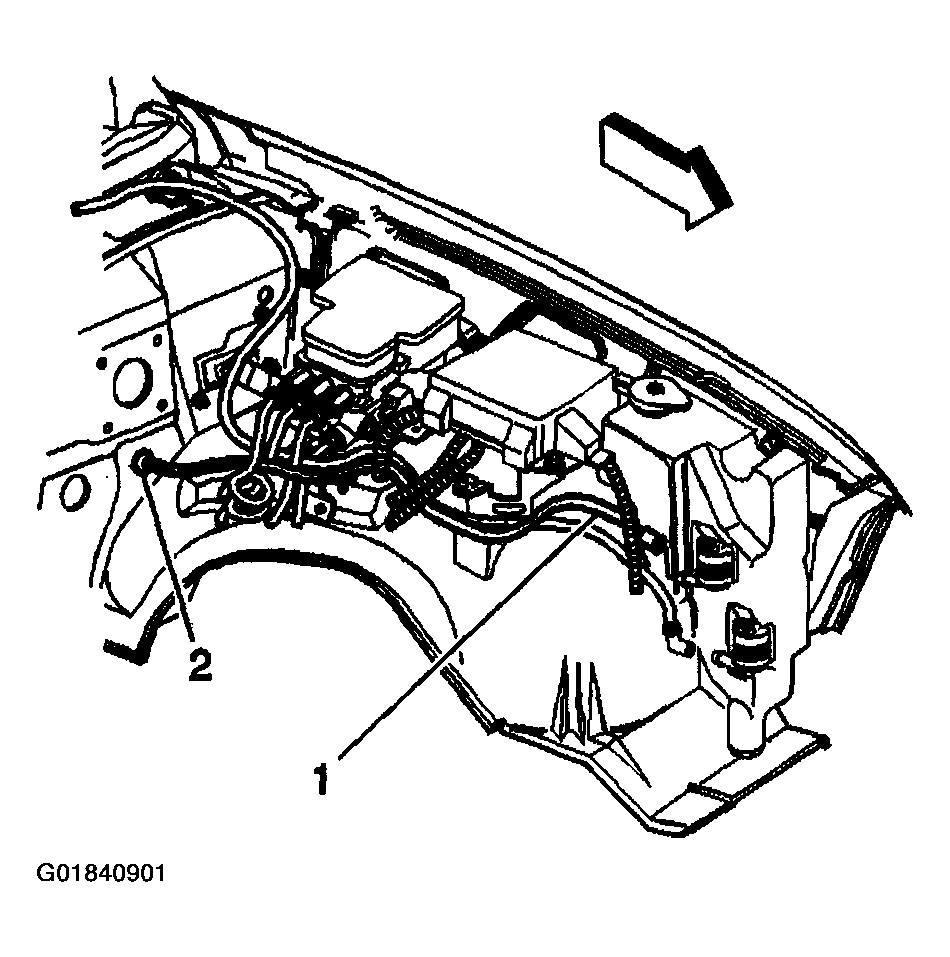

    Fig 2: Locating Rear Washer Pump Hose & Hose Grommet
    G01840901Courtesy of GENERAL MOTORS CORP.
  8. Connect the washer hose connection (1) at the endgate.

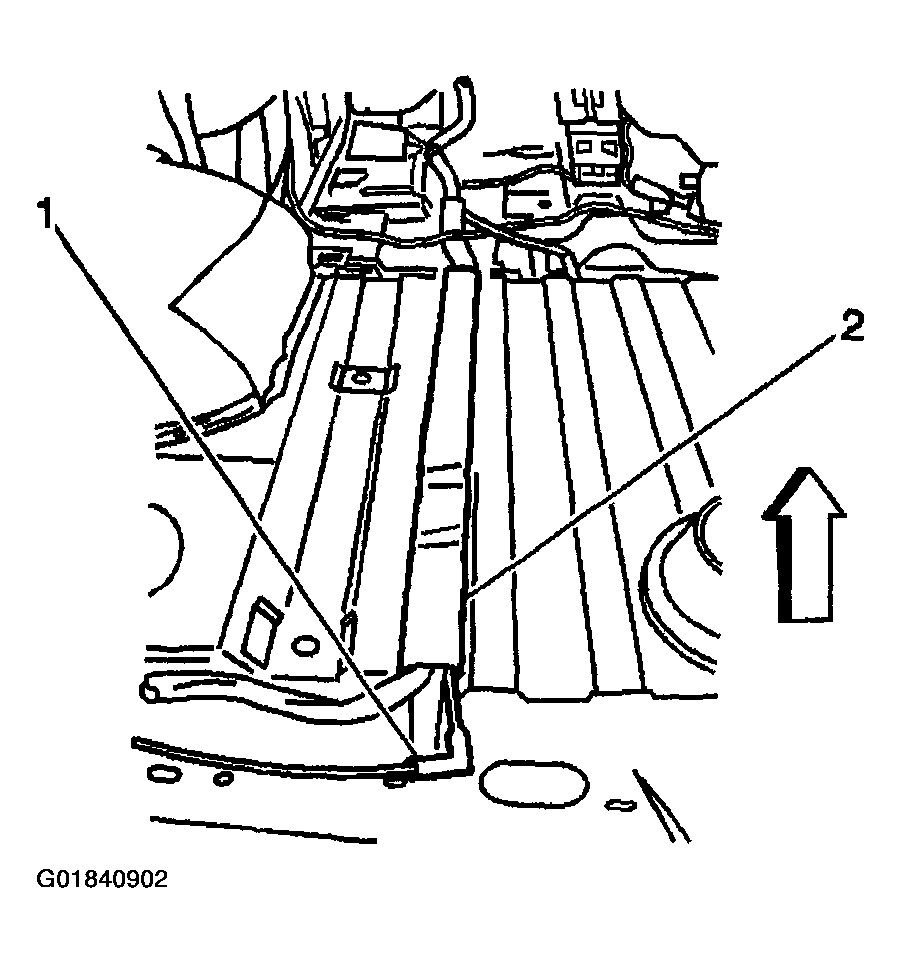

    Fig 3: Locating Endgate Washer Hose Connection & Body Harness
    G01840902Courtesy of GENERAL MOTORS CORP.
  9. Install the carpet. Refer to MAT/CARPET REPLACEMENT - FRONT FLOOR (PICKUP) , MAT/CARPET REPLACEMENT - FRONT FLOOR (EXTENDED CAB) or MAT/CARPET REPLACEMENT - FRONT FLOOR (UTILITY) and CARPET REPLACEMENT - REAR in INTERIOR TRIM article.
  10. Install the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT HINGE PILLAR in INTERIOR TRIM article.
  11. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in INTERIOR TRIM article.
  12. Install the left front and left rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT in INTERIOR TRIM article.
  13. Install the endgate/liftgate door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE or DOOR SILL PLATE REPLACEMENT - END GATE in INTERIOR TRIM article.
  14. Install the rear seat. Refer to SEAT REPLACEMENT - REAR (2-DOOR UTILITY) , SEAT REPLACEMENT - REAR (4-DOOR UTILITY) or SEAT REPLACEMENT - REAR (CREW CAB) in SEATS article.
  15. Install the left front seat. Refer to SEAT REPLACEMENT - BUCKET in SEATS article.
