Removal Procedure

  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE in BODY REAR END article.
  2. Disconnect the hose from the liftgate harness.

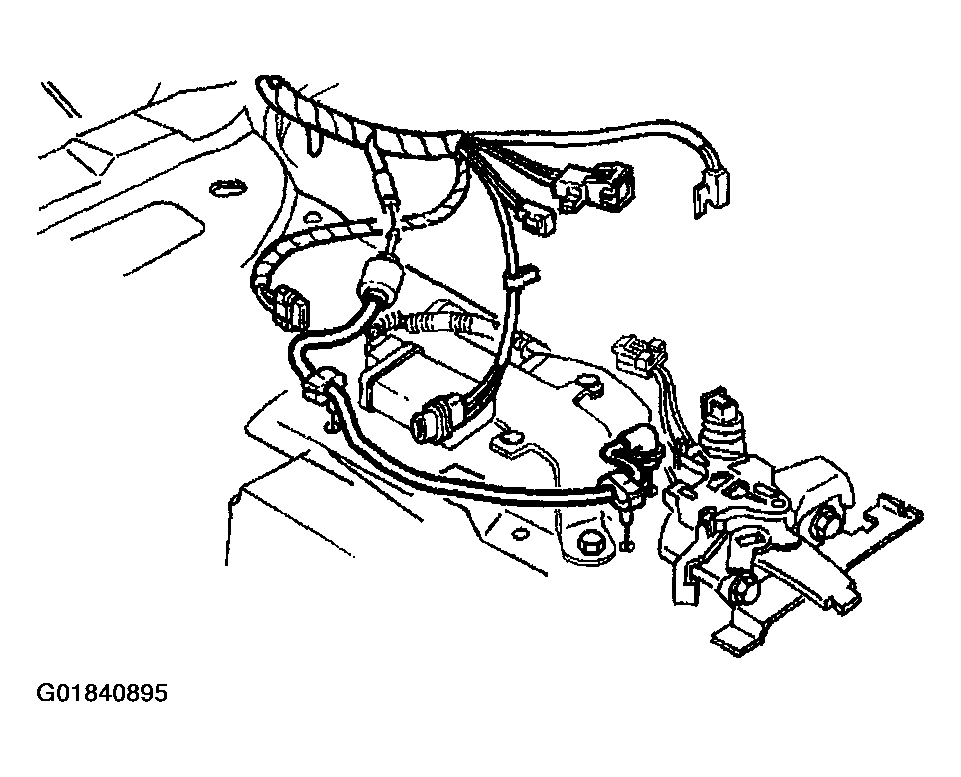

    Fig 1: Locating Rear Window Liftgate Harness & Washer Hose
    G01840895Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the hose from the liftgate inner panel.
  4. Remove the 2 clips that secure the hose to the liftgate.
