Installation Procedure

  1. Apply lubricant to both ends of the hose.
  2. Install the hose to the liftgate inner panel using 2 hose clips.
  3. Connect the hose to the liftgate harness.

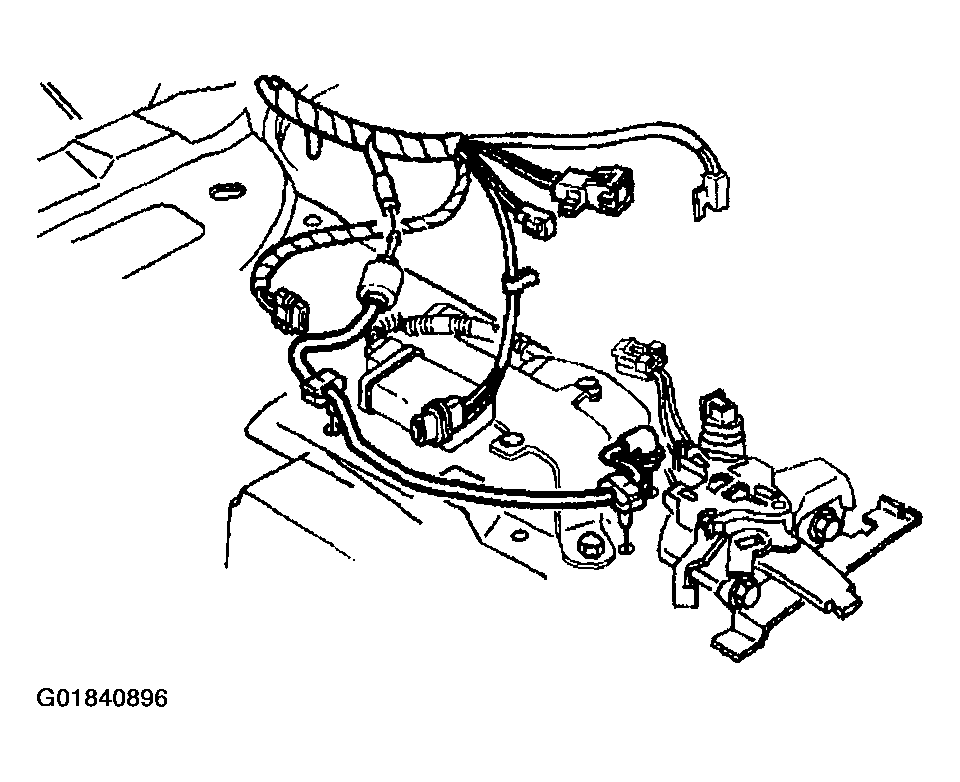

    Fig 1: Locating Rear Window Liftgate Harness & Washer Hose
    G01840896Courtesy of GENERAL MOTORS CORP.
  4. Connect the hose to the liftgate inner panel.
  5. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE in BODY REAR END article.
