Installation Procedure

  1. Install the hose clips into the body.
  2. Apply lubricant to both of the hose connections.
  3. Install the hose to the liftgate harness.

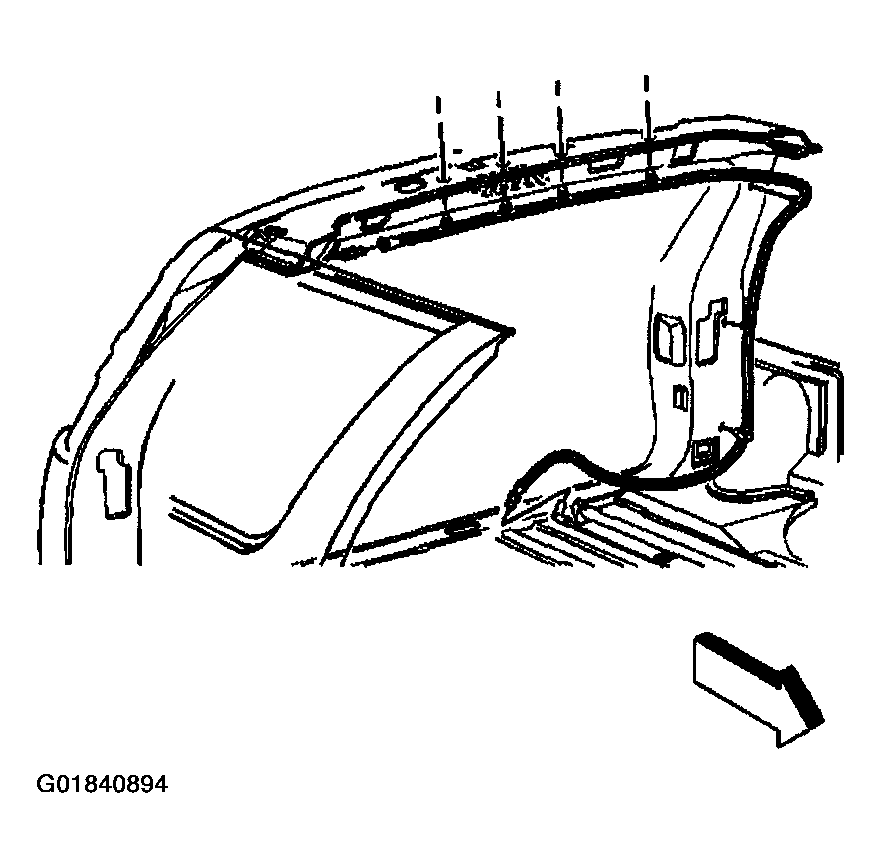

    Fig 1: Locating Body To Liftgate Rear Window Hose & Washer Nozzle
    G01840894Courtesy of GENERAL MOTORS CORP.
  4. Install the hose to the body harness.
  5. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in INTERIOR TRIM article.
  6. Install the liftgate door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE or DOOR SILL PLATE REPLACEMENT - END GATE in INTERIOR TRIM article.
  7. Install the upper rear garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER in INTERIOR TRIM article.
