Wipers Inoperative - All Modes
Wipers Inoperative - All Modes

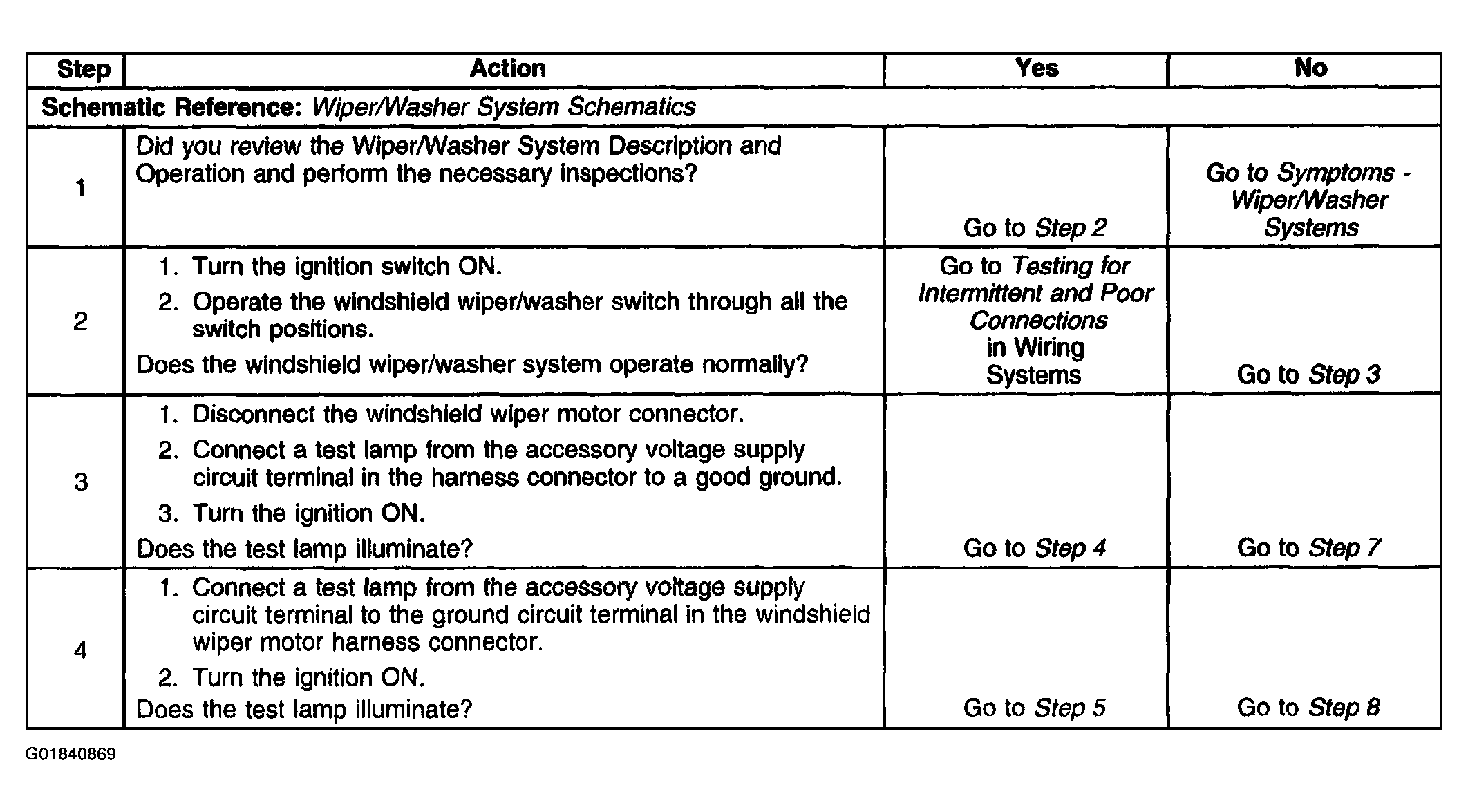

Fig 1: Wipers Inoperative Symptom Diagnostic Procedure - All Modes (Steps 1-4)
Courtesy of GENERAL MOTORS CORP.

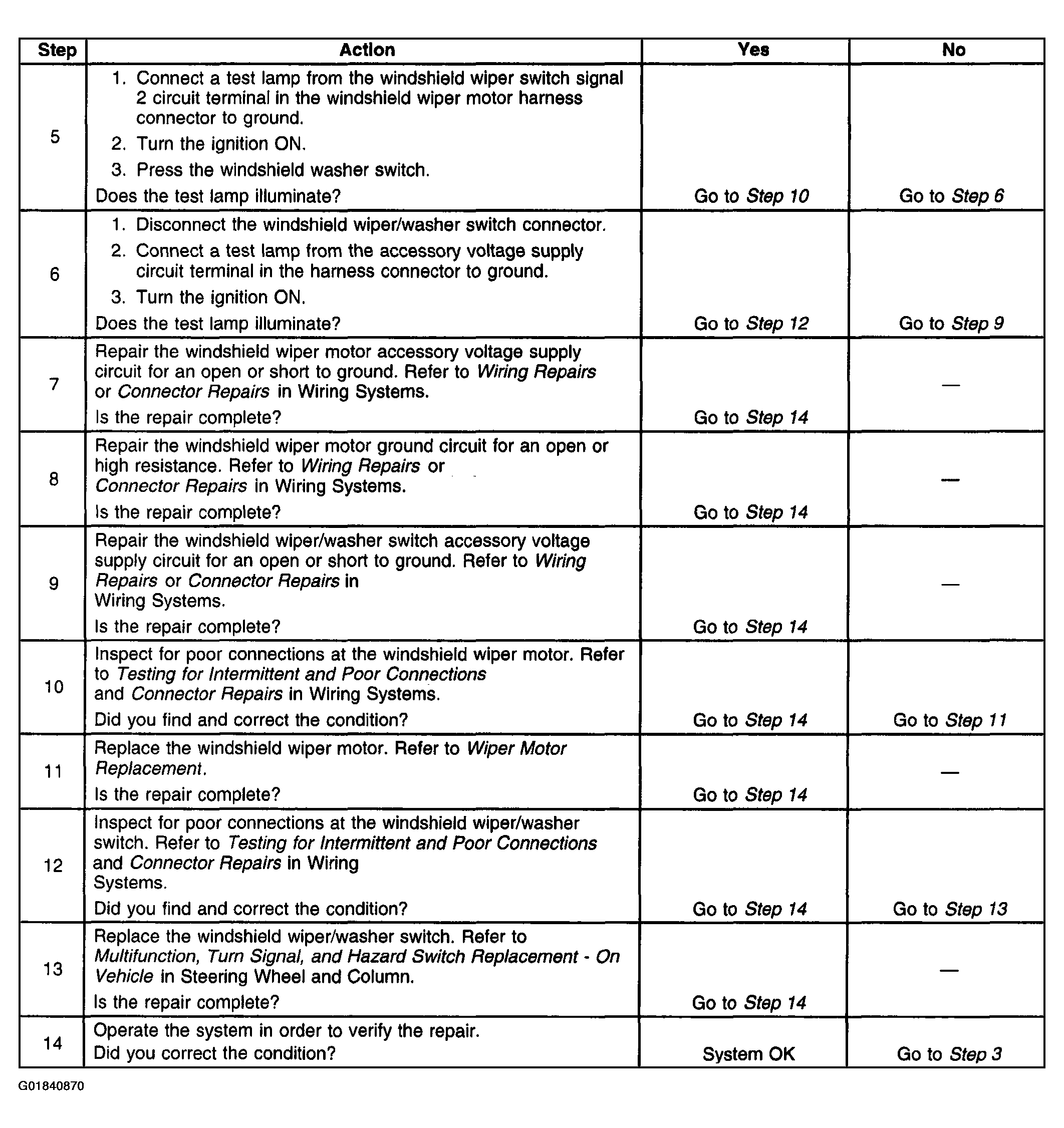

Fig 2: Wipers Inoperative Symptom Diagnostic Procedure - All Modes (Steps 5-14)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
