Wiper Inoperative - Rear

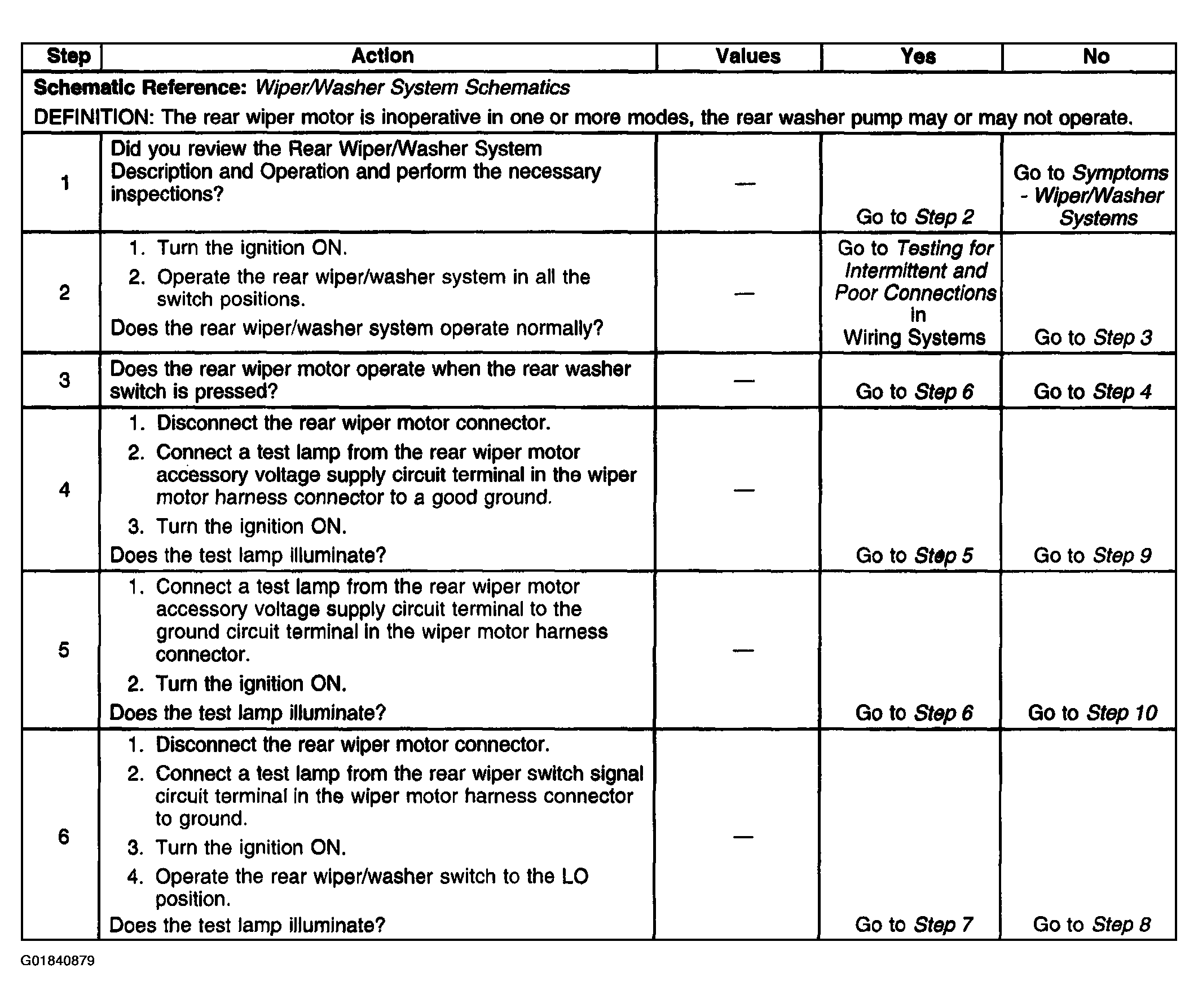

Fig 1: Wiper Inoperative Diagnostic Table - Rear (Steps 1-6)
G01840879Courtesy of GENERAL MOTORS CORP.

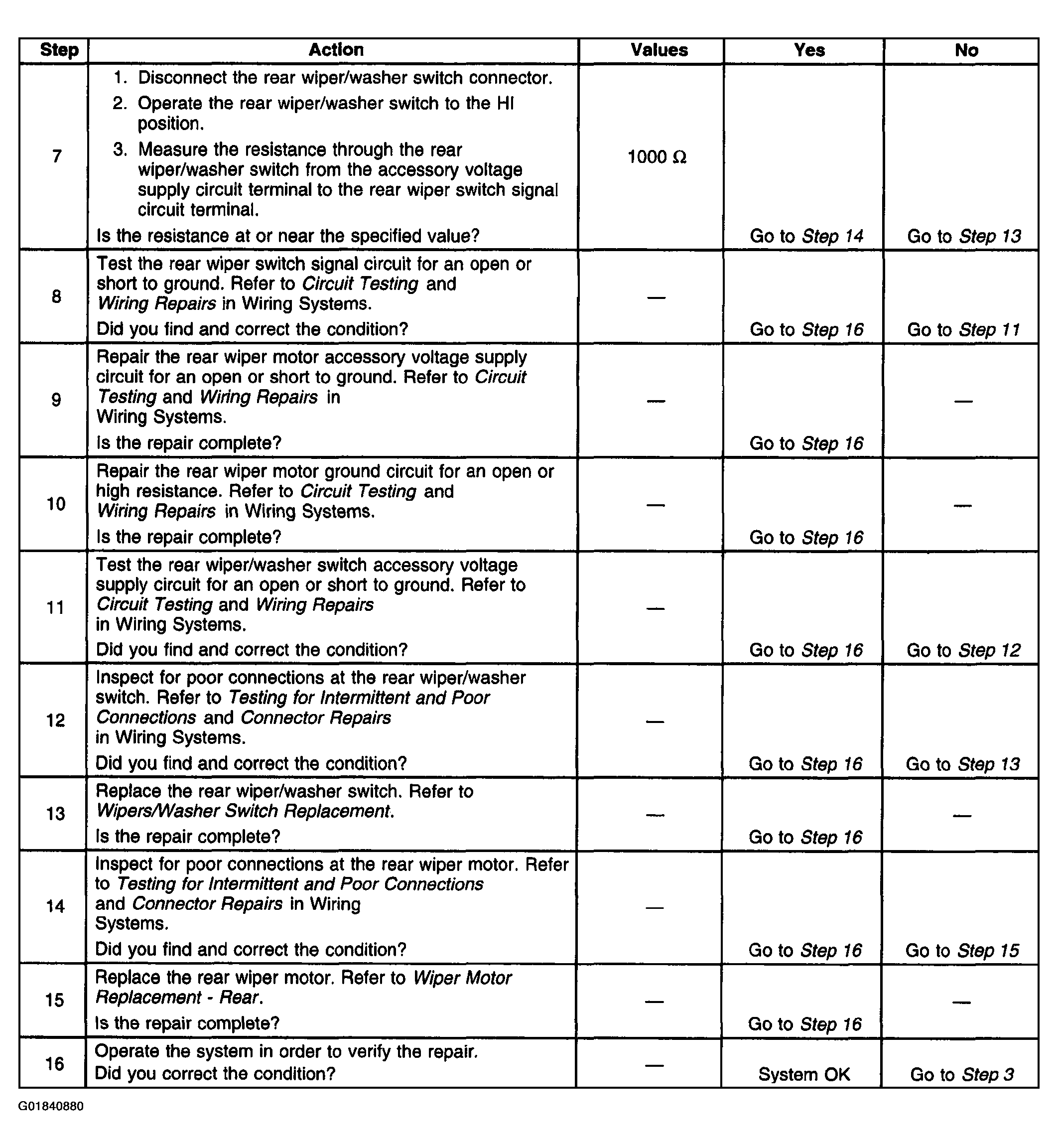

Fig 2: Wiper Inoperative Diagnostic Table - Rear (Steps 7-16)
G01840880Courtesy of GENERAL MOTORS CORP.
