Wiper Always On - Rear
Wiper Always On - Rear

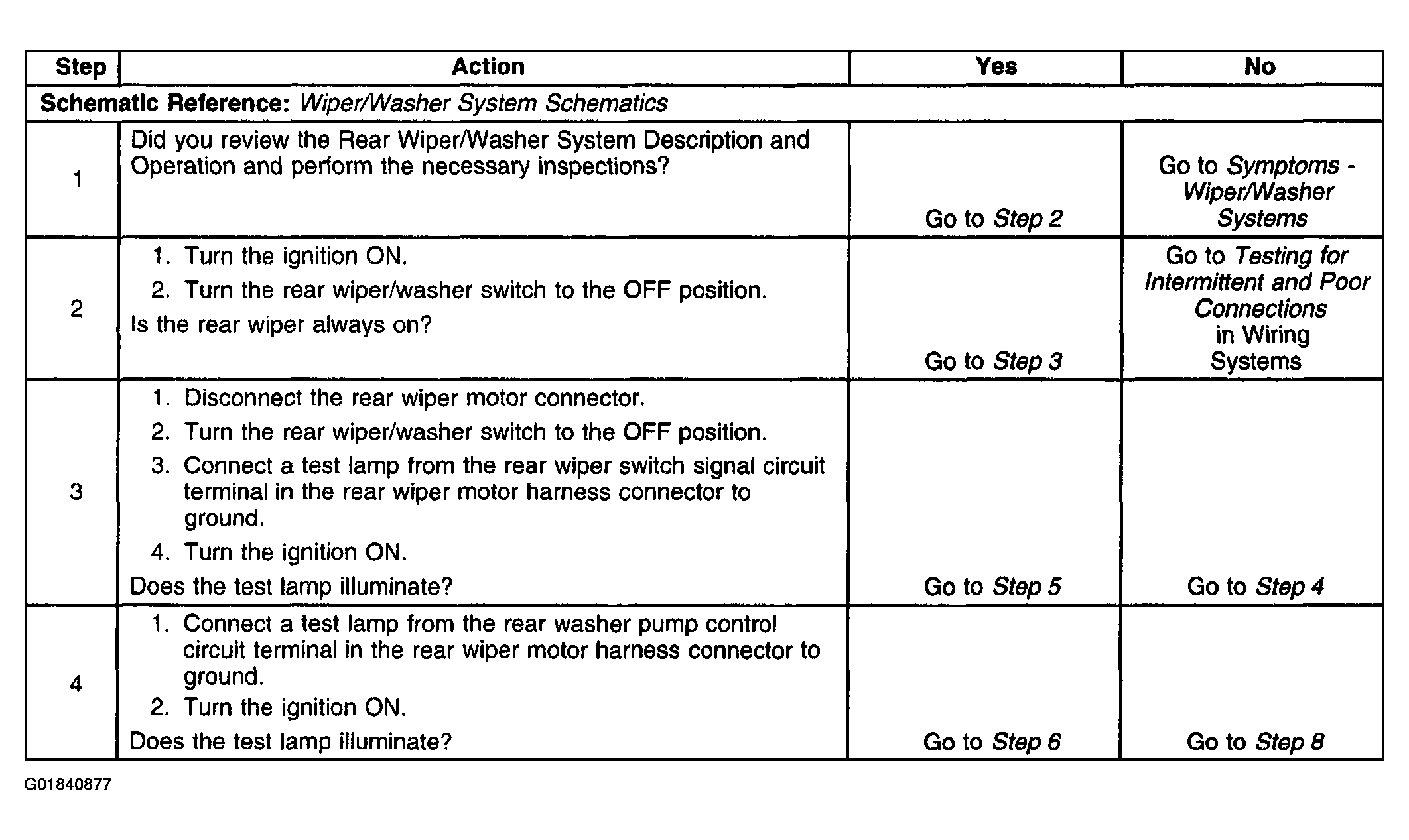

Fig 1: Wiper Always On Diagnostic Table - Rear (Steps 1-4)
Courtesy of GENERAL MOTORS CORP.

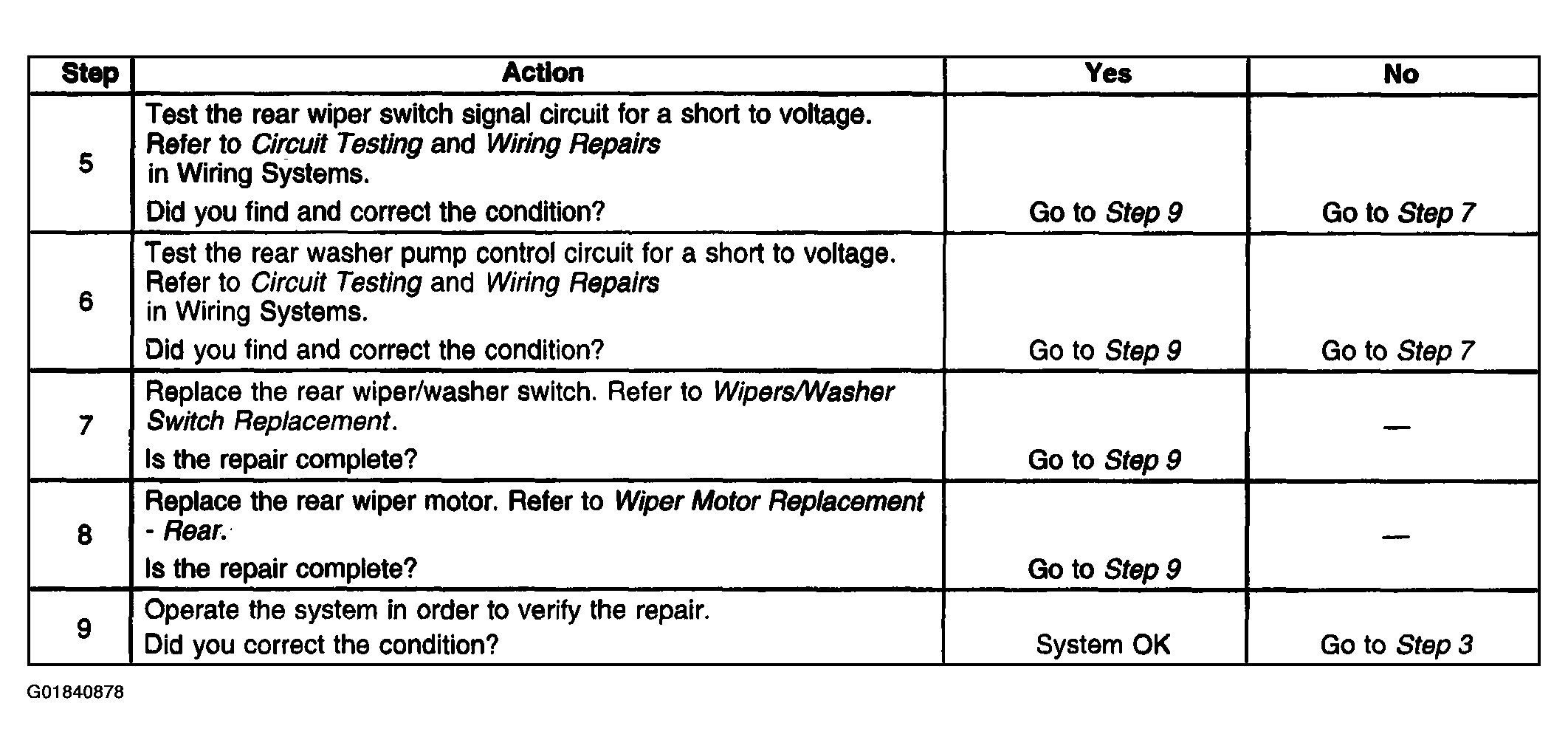

Fig 2: Wiper Always On Diagnostic Table - Rear (Steps 5-9)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
