Home
>>
Chevrolet
>>
2002
>>
Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System And Washer System
>>
Diagnostic Information & Procedures
>>
Washers Inoperative
Washers Inoperative

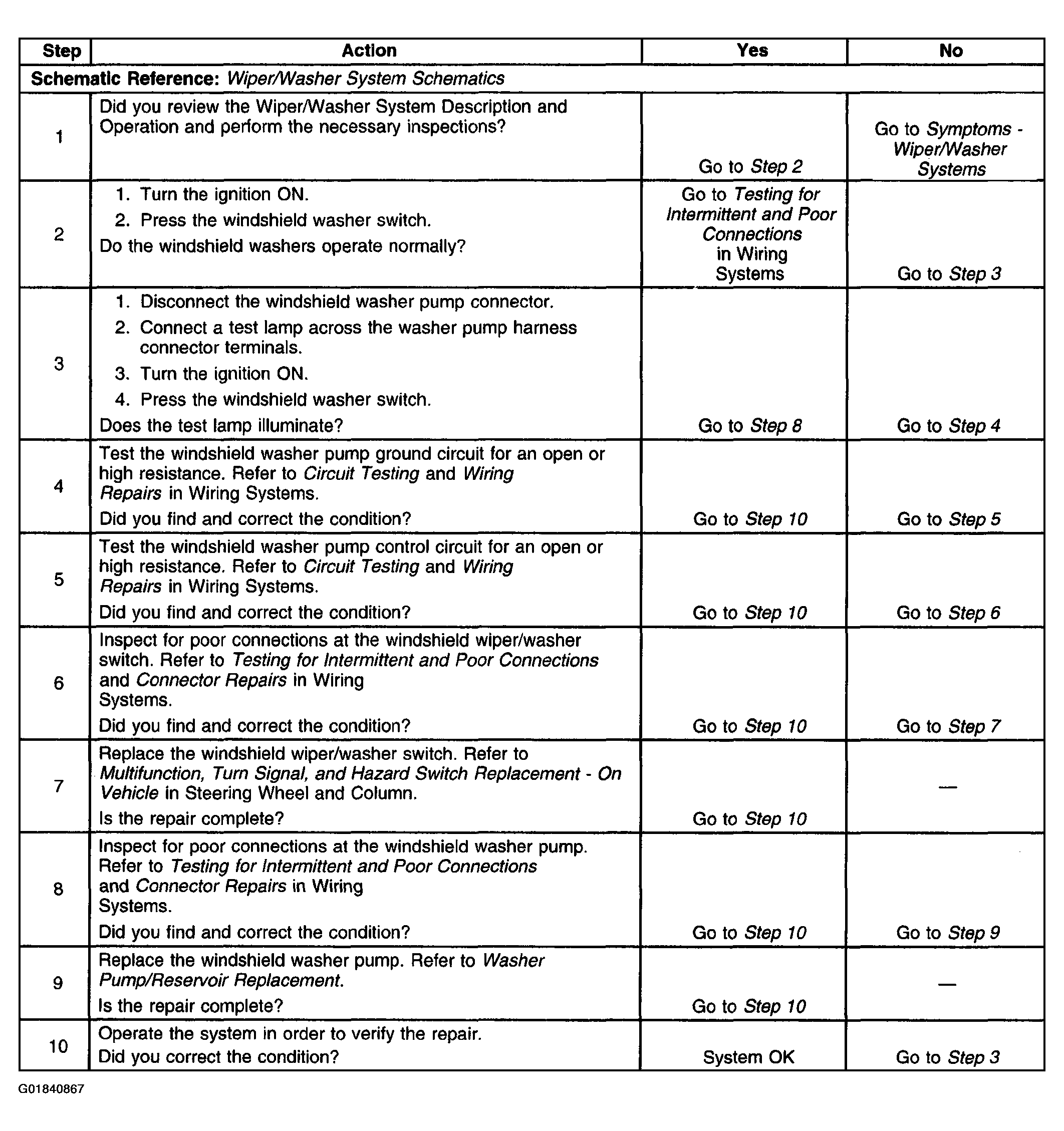

Fig 1: Washers Inoperative Symptom Diagnostic Procedure
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
