Washer Inoperative - Rear

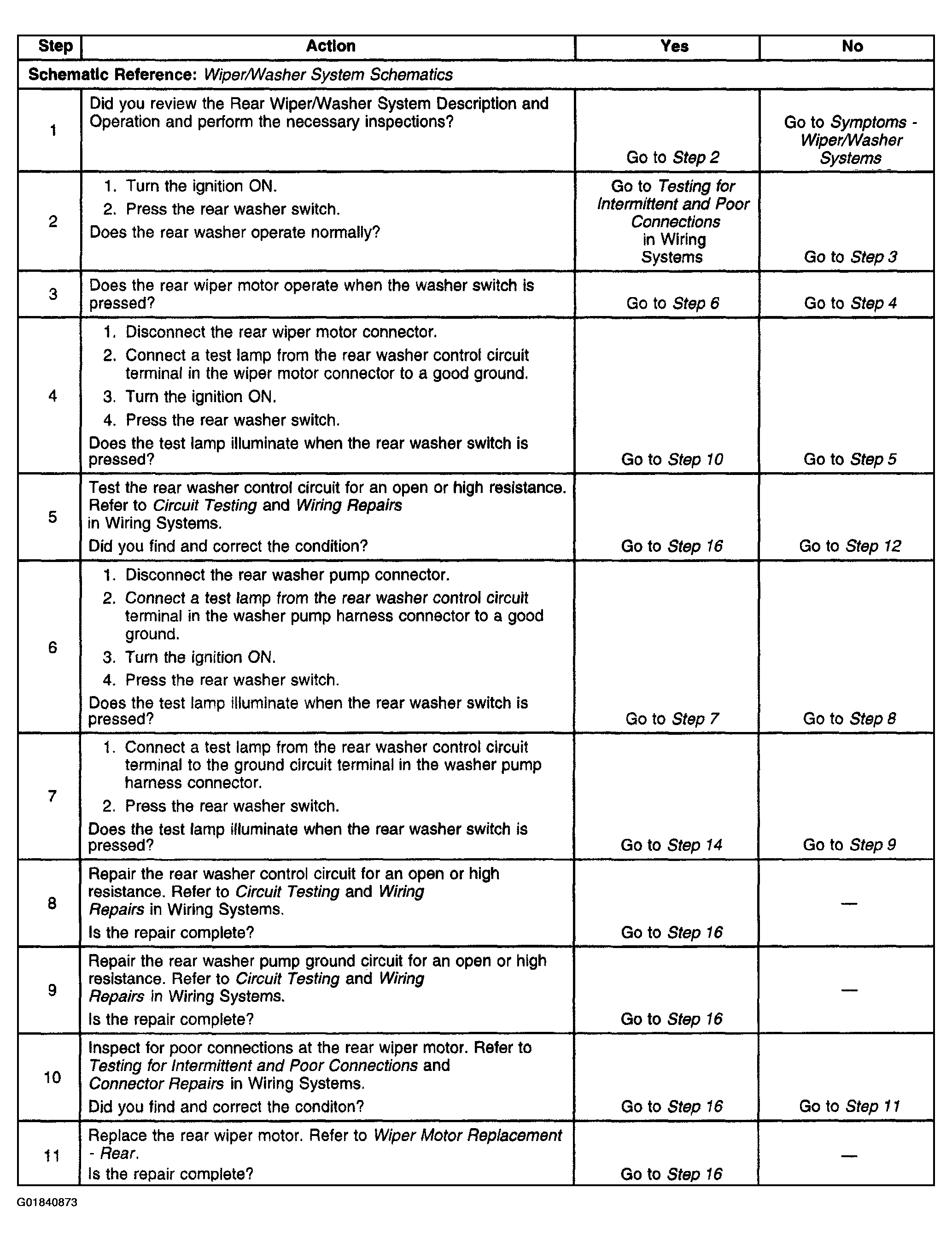

Fig 1: Washer Inoperative - Rear (Steps 1-11)
Courtesy of GENERAL MOTORS CORP.

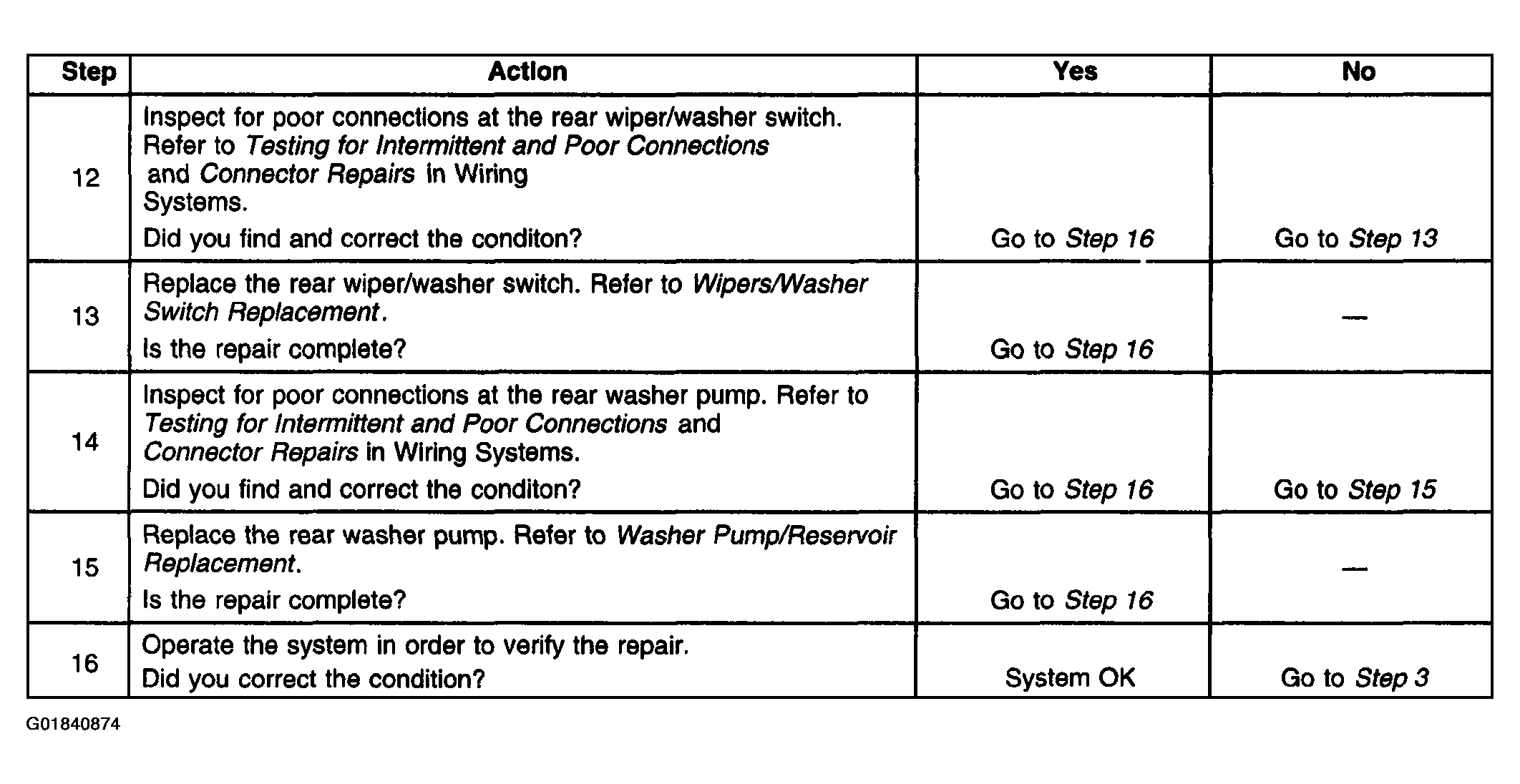

Fig 2: Washer Inoperative - Rear (Steps 12-16)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
