Rear Door Jamb & Liftglass Ajar Jamb Switches

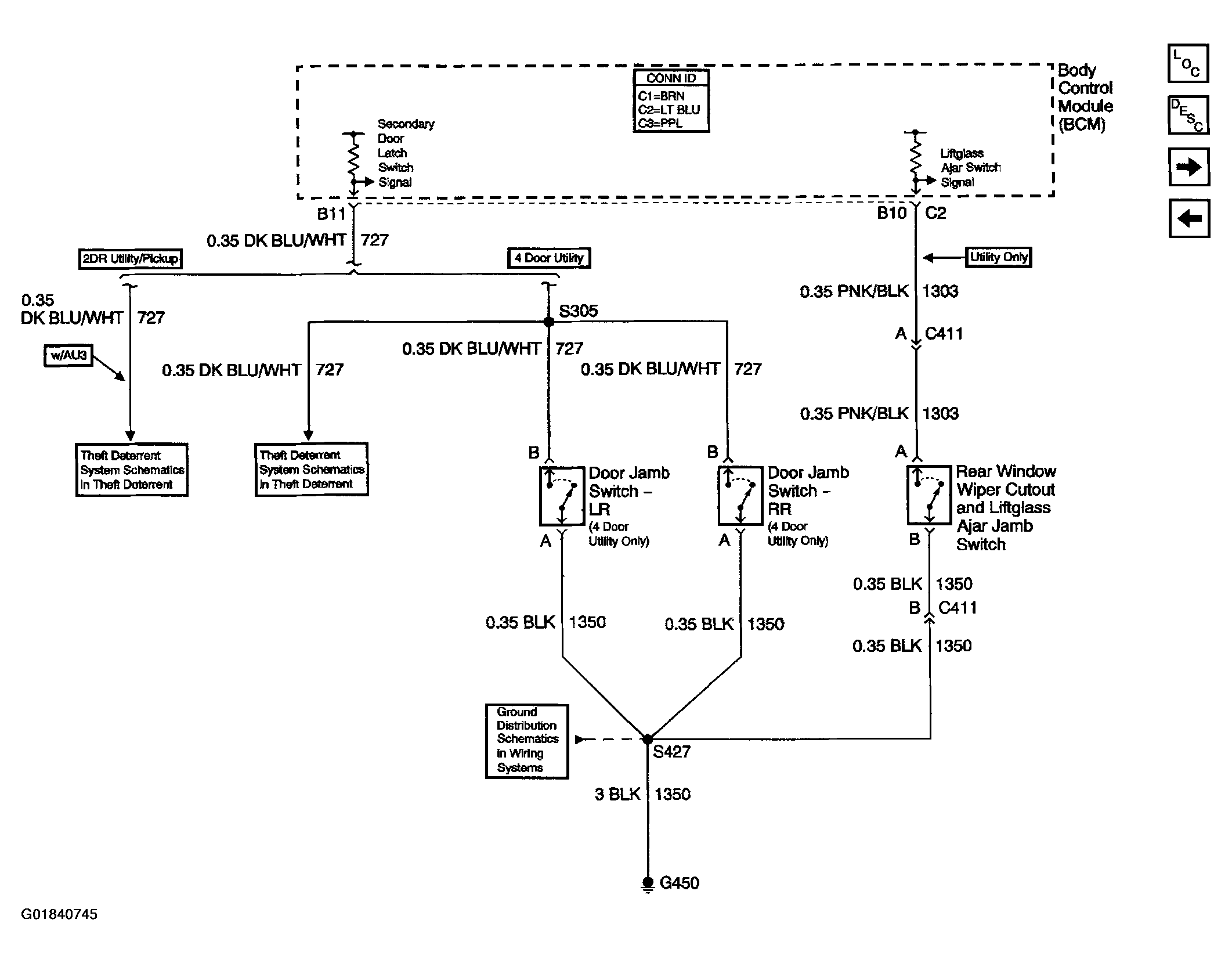

Fig 1: Interior Lights Schematics - Rear Door Jamb & Liftglass Ajar Jamb Switches

G01840745

Courtesy of GENERAL MOTORS CORP.
