Driver Information Display Module (Utility w/ Sunroof)

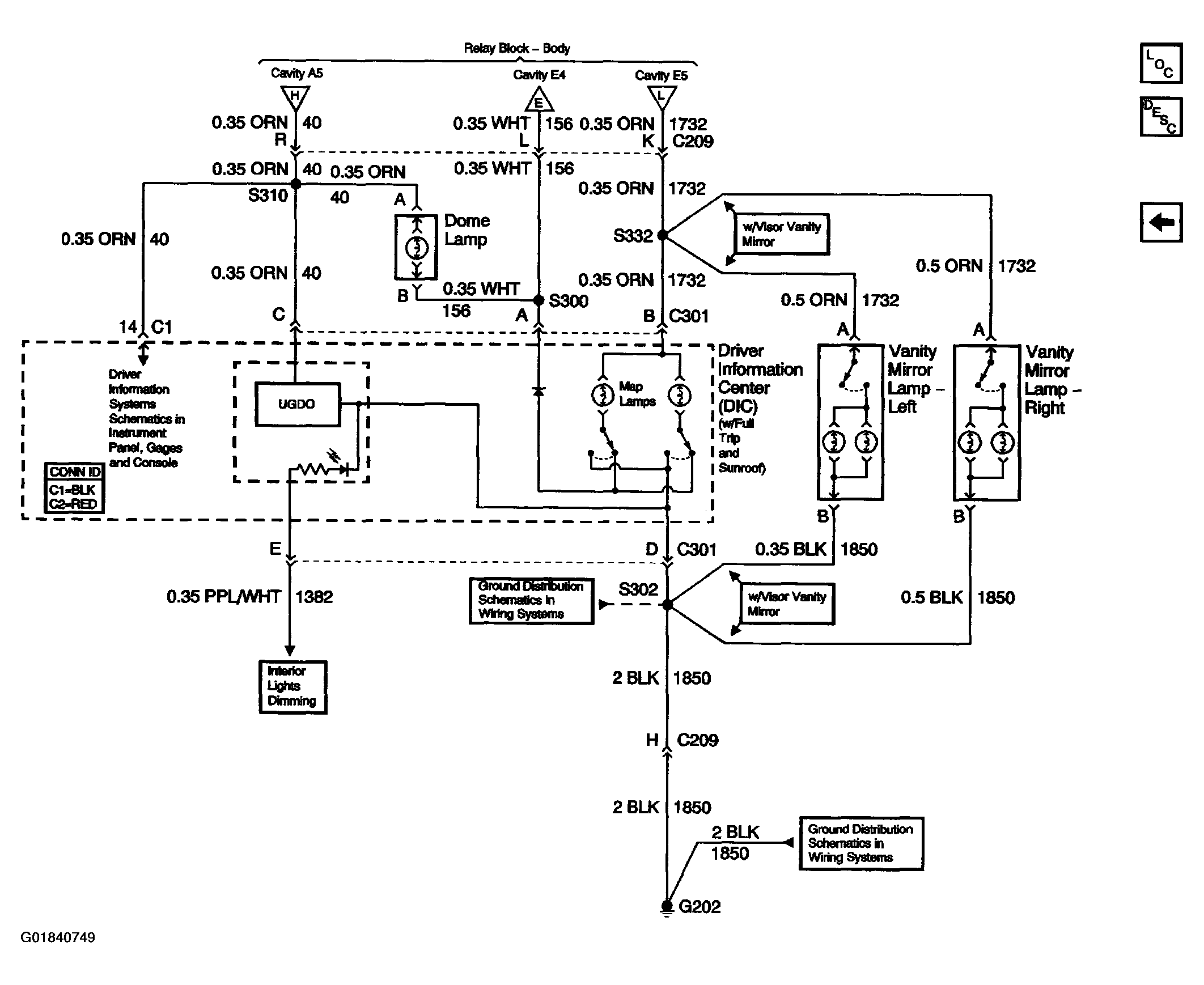

Fig 1: Interior Lights Schematics - Driver Information Display Module (Utility w/ Sunroof)

G01840749

Courtesy of GENERAL MOTORS CORP.
