Driver Information Center (Utility w/o Sunroof)

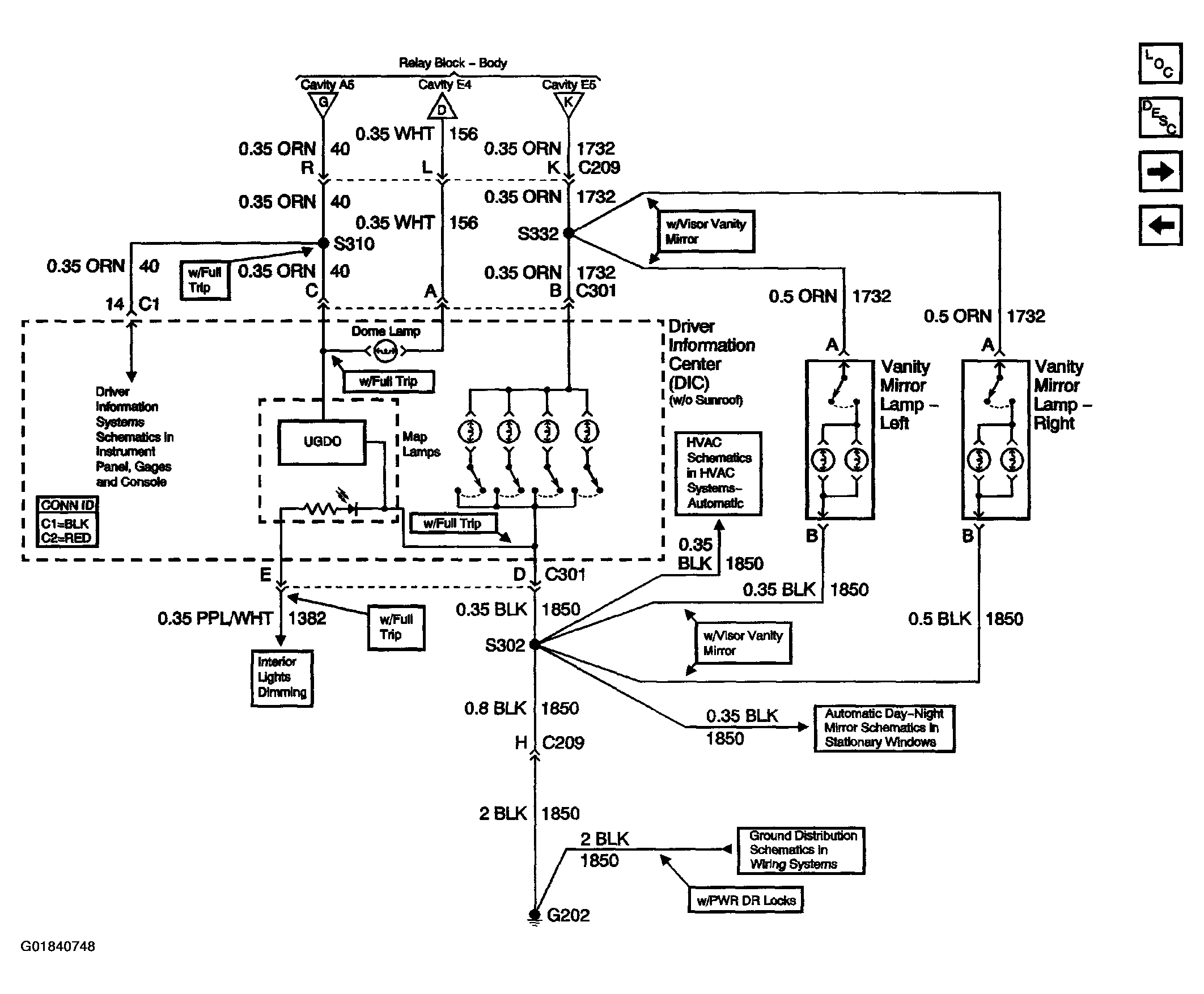

Fig 1: Interior Lights Schematics - Driver Information Center (Utility w/o Sunroof)

G01840748

Courtesy of GENERAL MOTORS CORP.
