Instrument Panel Cluster, BCM & Automatic Transmission Indicators

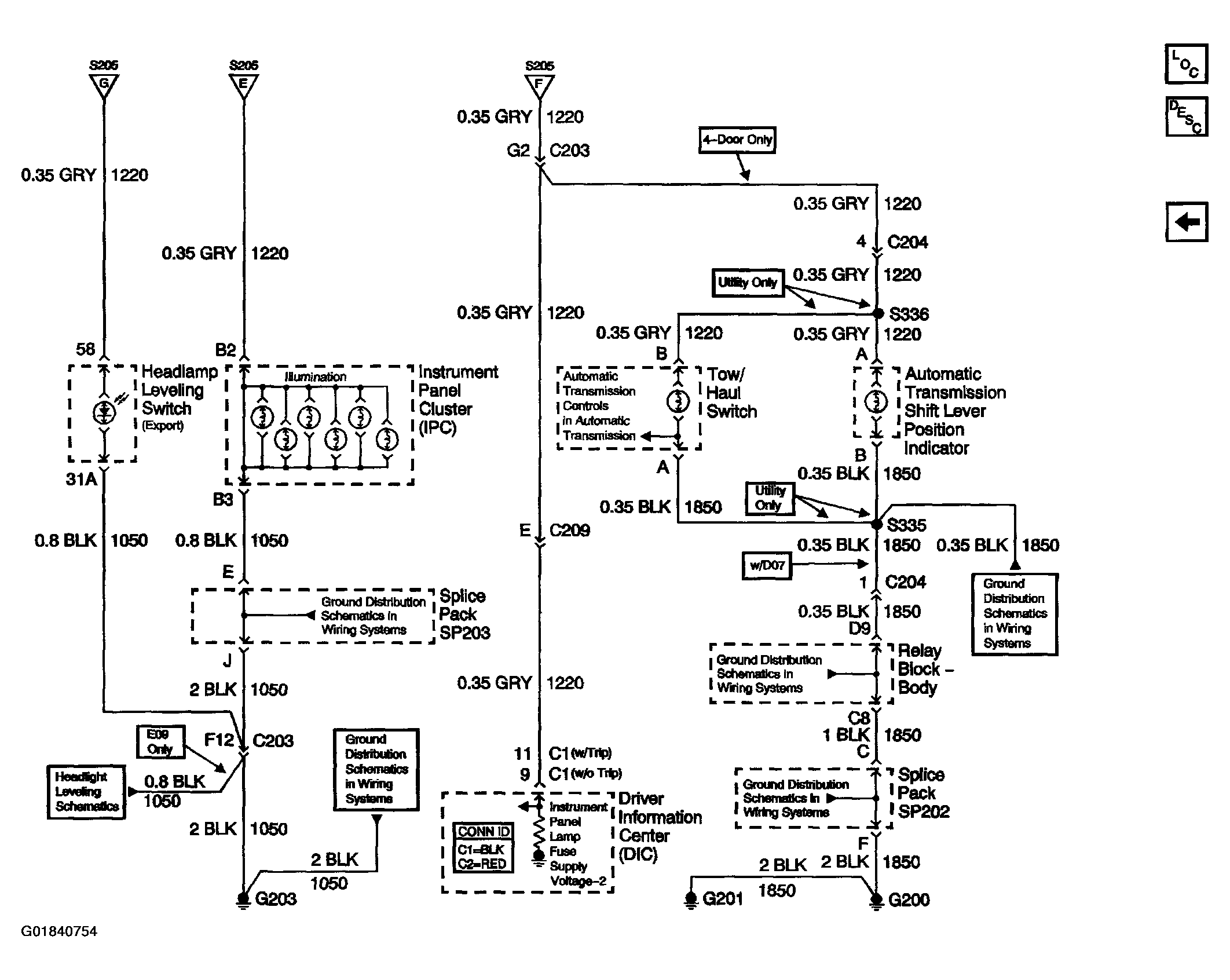

Fig 1: Interior Lights Dimming Schematics - Instrument Panel Cluster, BCM & Automatic Transmission Indicators
G01840754Courtesy of GENERAL MOTORS CORP.
