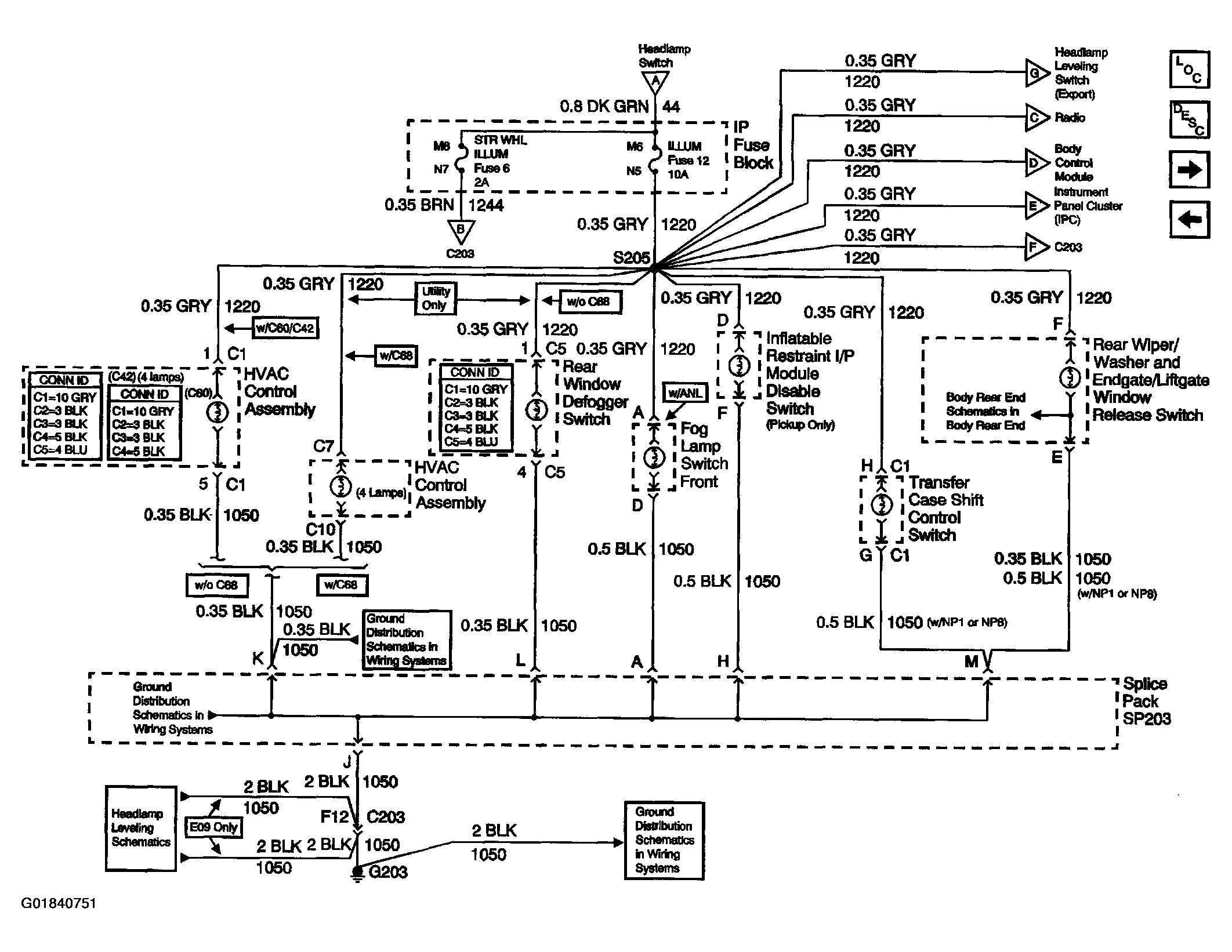

Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic & Routing Diagrams >> Interior Lights Dimming Schematics >> ILLUM Fuse 12
