Headlamp Switch, Ambient Light Sensor & BCM

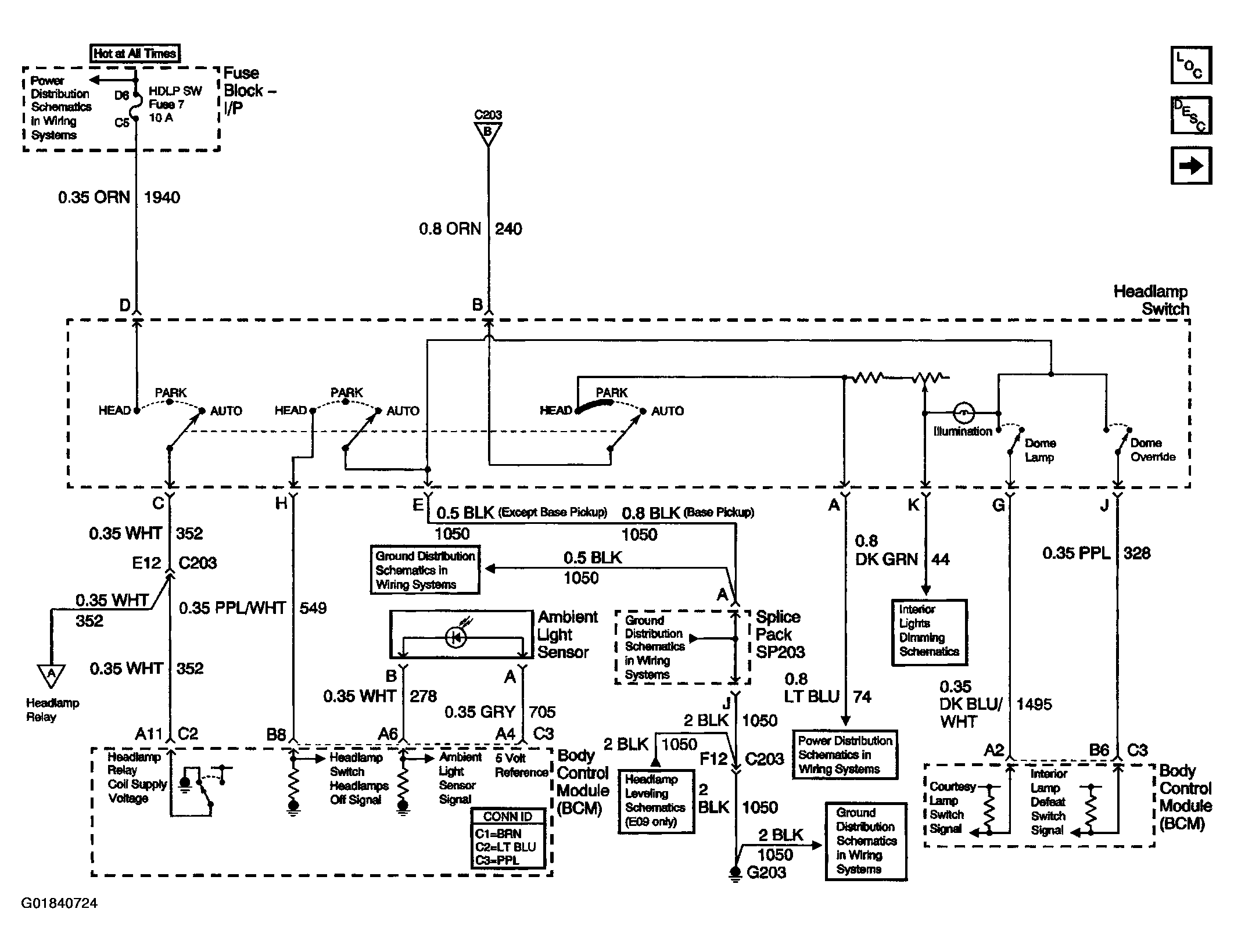

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics - Headlamp Switch, Ambient Light Sensor & BCM

G01840724

Courtesy of GENERAL MOTORS CORP.
