Flash-To-Pass Switch, DRL Relay (ZR2) & BCM

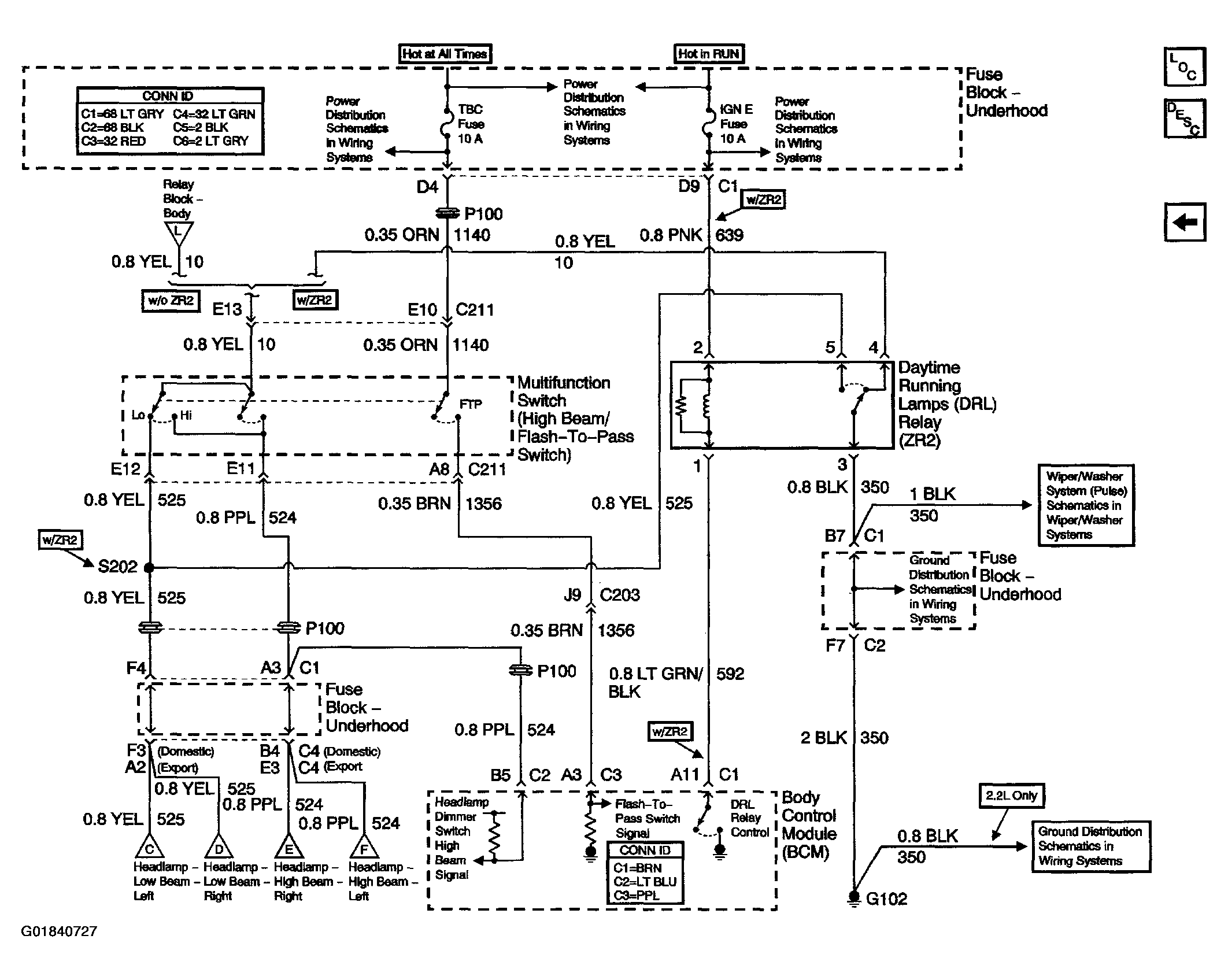

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics - Flash-To-Pass Switch, DRL Relay (ZR2) & BCM

G01840727

Courtesy of GENERAL MOTORS CORP.
