Exterior Lights Schematics
>>
Underhood Fuse Block
Underhood Fuse Block

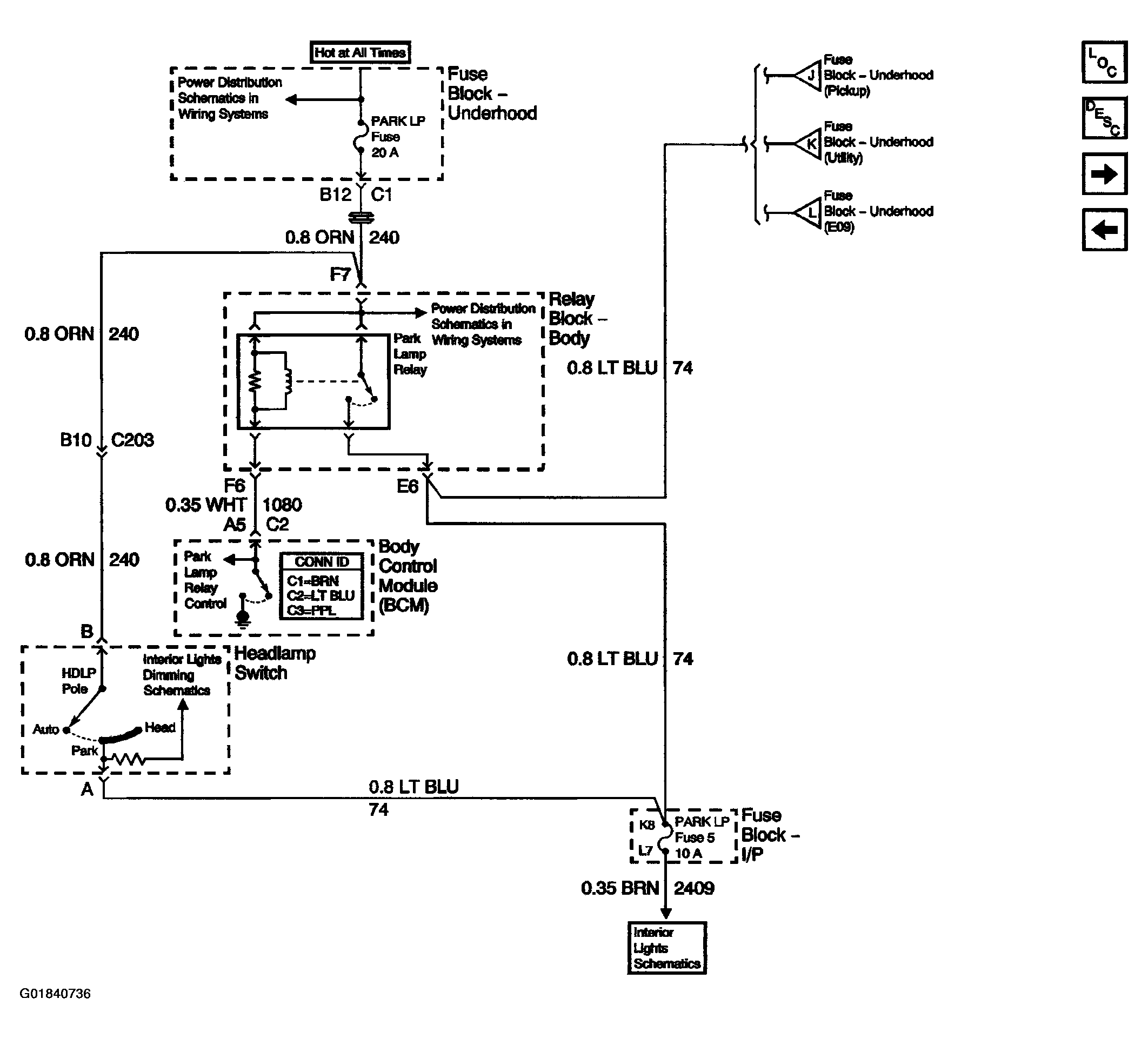

Fig 1: Exterior Lights Schematics - Fuse Block (Underhood)
Courtesy of GENERAL MOTORS CORP.
