Multifunction Switch & Turn Signal Lamp Flasher

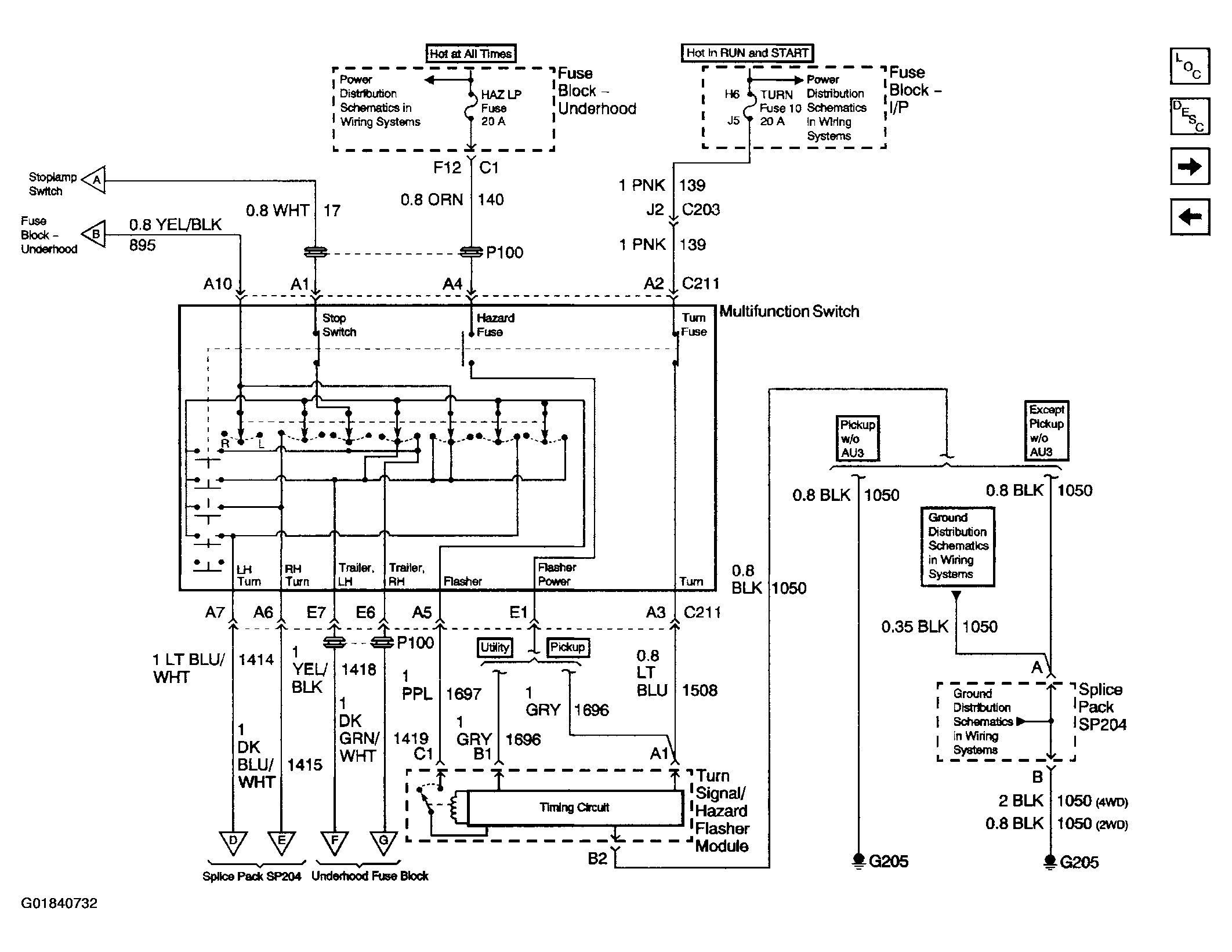

Fig 1: Exterior Lights Schematics - Multifunction Switch & Turn Signal Lamp Flasher

G01840732

Courtesy of GENERAL MOTORS CORP.
