Instrument Cluster Turn Signal Indicators

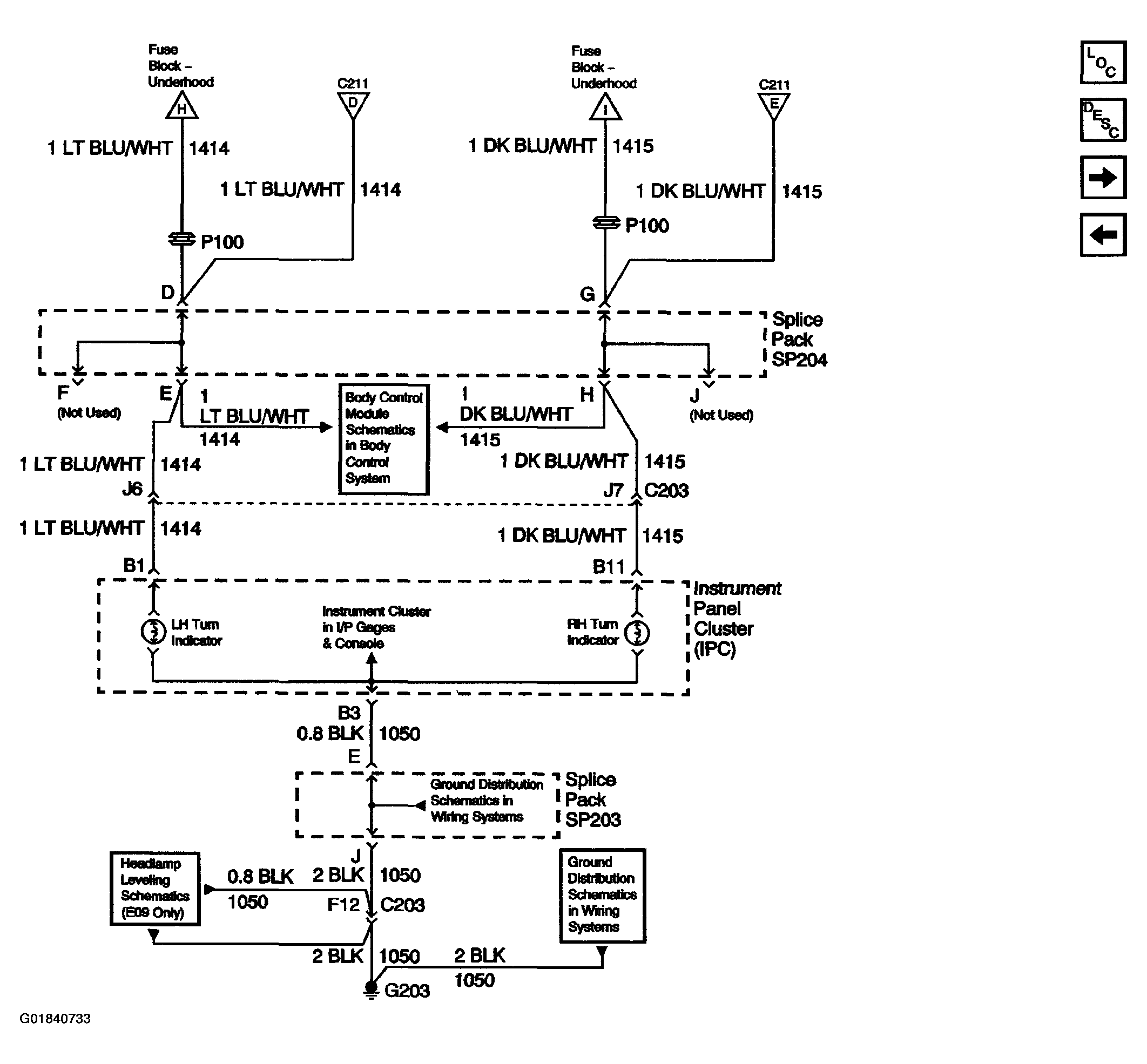

Fig 1: Exterior Lights Schematics - Instrument Cluster Turn Signal Indicators

G01840733

Courtesy of GENERAL MOTORS CORP.
