Removal Procedure

  1. Perform the following steps in order to remove the lens from the sunshade:

    1. 1.1

      Insert a flat-bladed tool into the center slot at the bottom of the lens.

    2. 1.2

      Gently pry downward in order to lift out the lens.

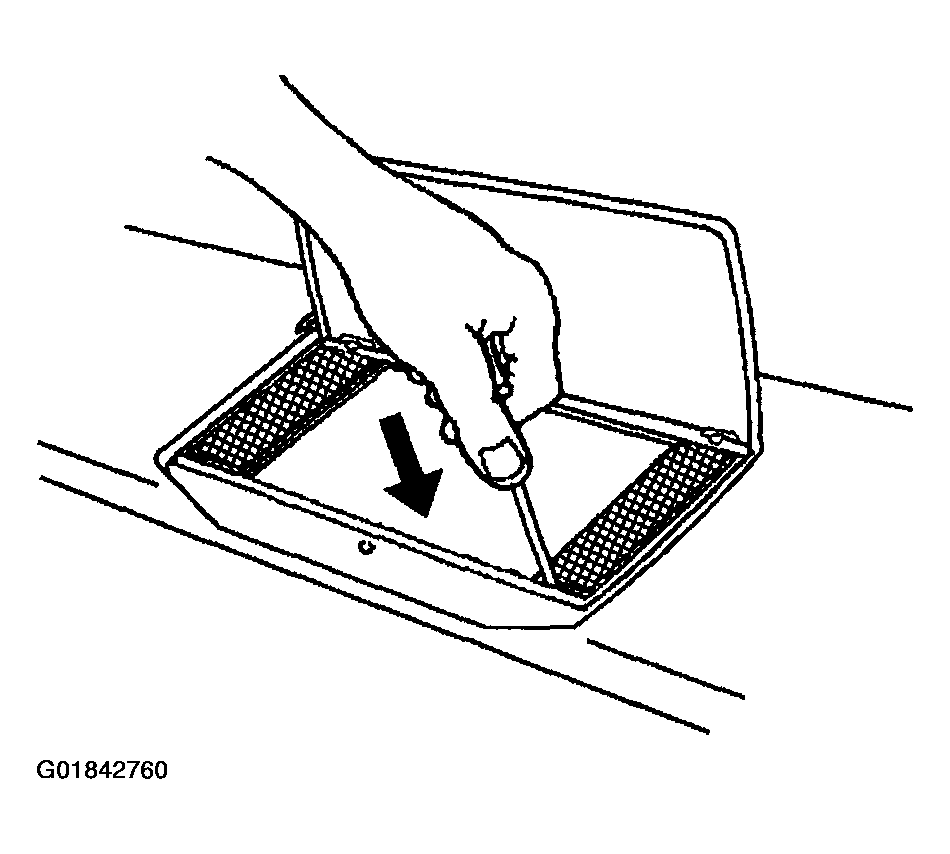

    Fig 1: Removing Sunshade Lens
    G01842760Courtesy of GENERAL MOTORS CORP.
  2. Pry out the bulb.
