Installation Procedure

  1. Install the bulbs into the sockets.
  2. Install the bulb sockets to the tail lamp assembly by rotating the sockets 1/4 turn clockwise.
  3. Install the tail lamp assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.

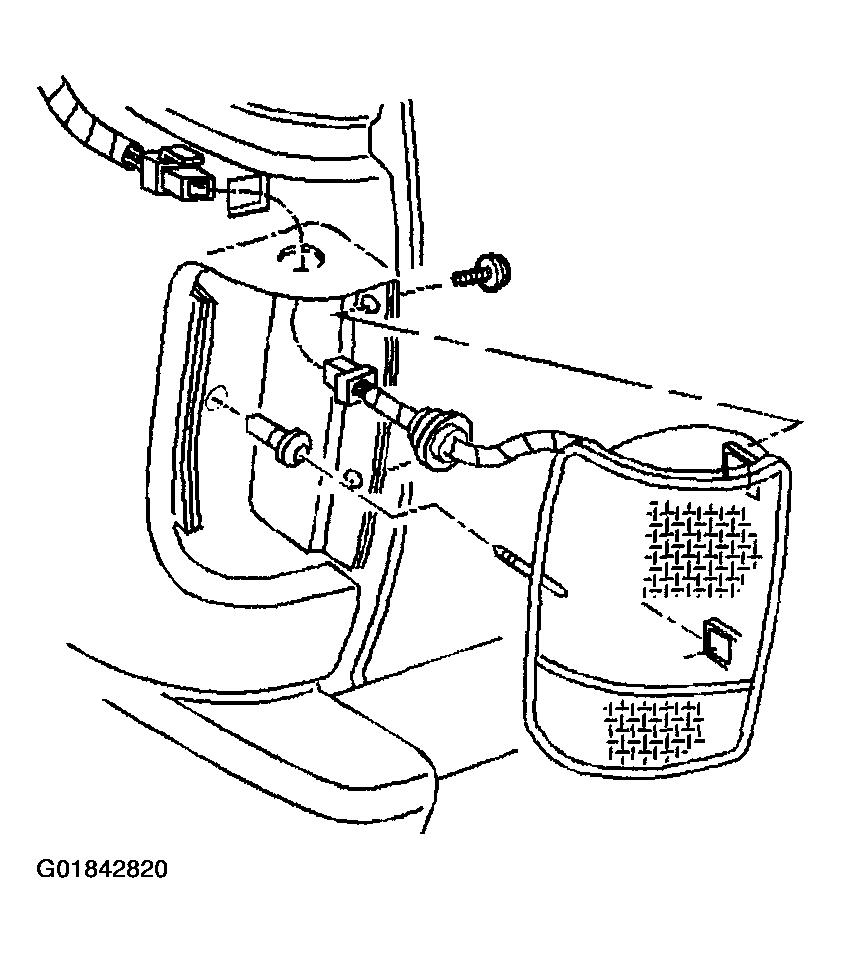

    Fig 1: Identifying Tail Lamp Components (Utility)
    G01842820Courtesy of GENERAL MOTORS CORP.
  4. Install the screws that retain the tail lamp assembly to the vehicle.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).
