Removal Procedure

  1. Open the endgate or liftgate.
  2. Remove the screws that retain the tail lamp assembly to the vehicle.

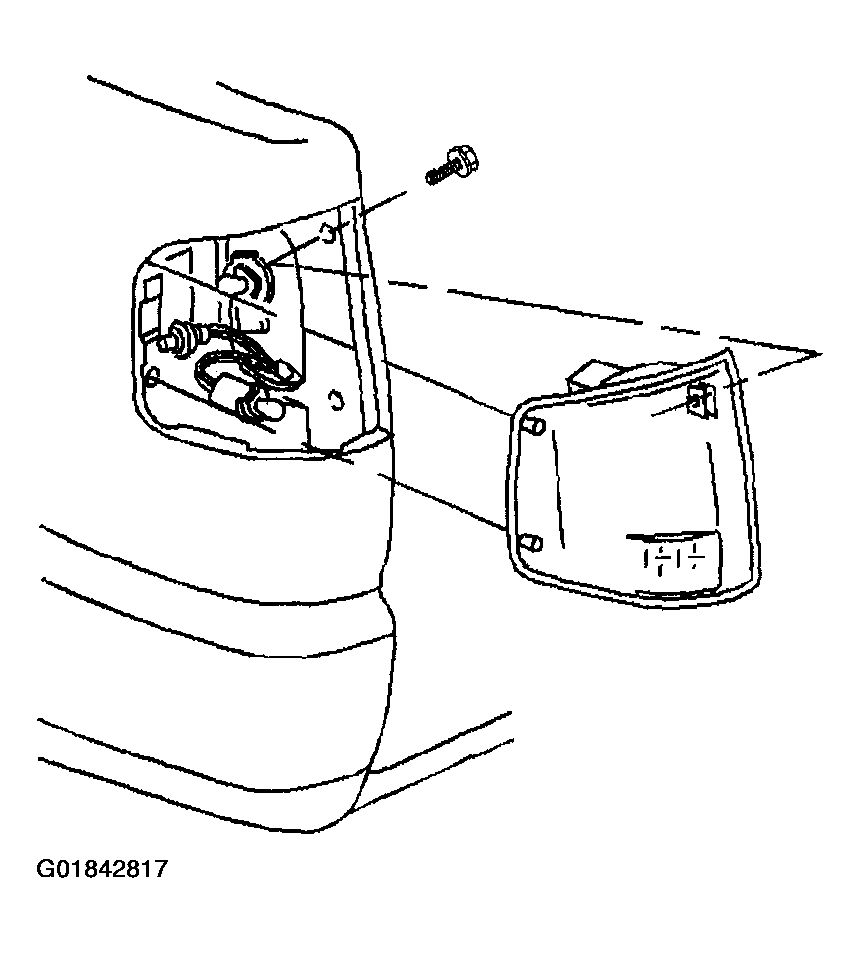

    Fig 1: Identifying Tail Lamp Components (Pickup)
    G01842817Courtesy of GENERAL MOTORS CORP.
  3. Rotate the bulb sockets 1/4 turn counter-clockwise in order to remove the bulb sockets from the tail lamp assembly.
  4. Remove the bulbs from the sockets by pulling out the bulbs.
