Installation Procedure

  1. Install the bulbs into the sockets.
  2. Install the bulb sockets to the tail lamp assembly by rotating the sockets 1/4 turn clockwise.
  3. Install the tail lamp assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  4. Install the screws that retain the tail lamp assembly to the vehicle.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

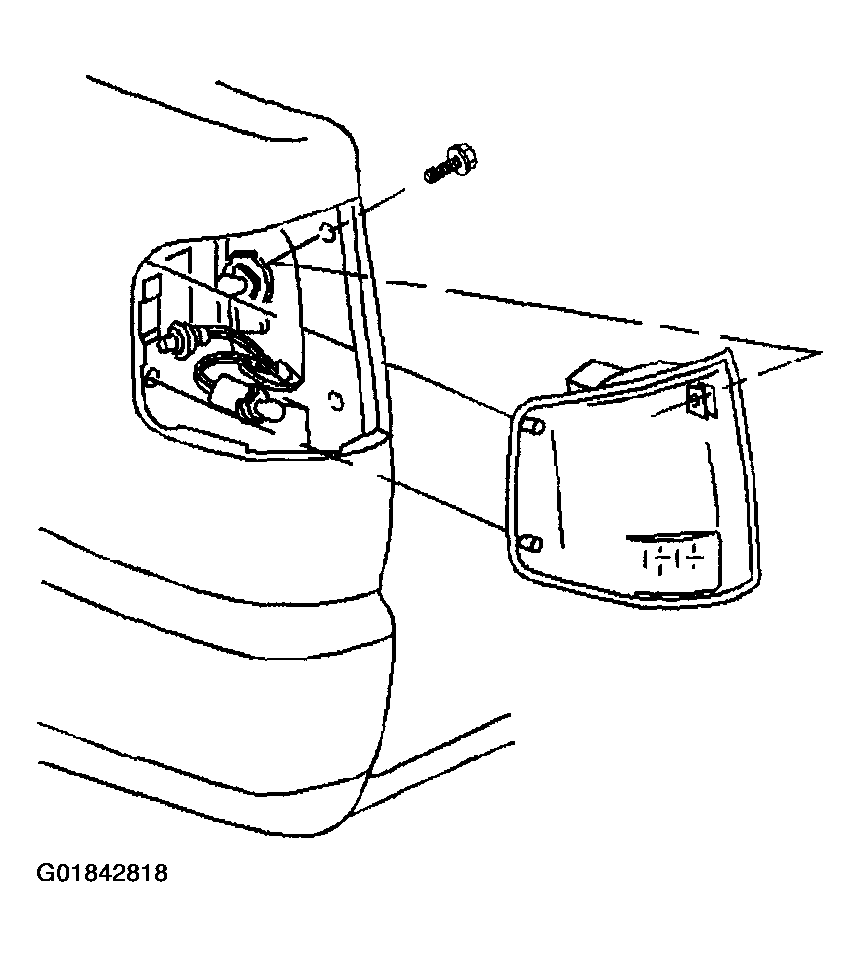

    5. Fig 1: Identifying Tail Lamp Components (Pickup)
    G01842818Courtesy of GENERAL MOTORS CORP.
