Removal Procedure

  1. Ensure that the headlamp switch is in the OFF position.
  2. Ensure that the ignition switch is in the OFF position.
  3. Remove the headlamp retainers.

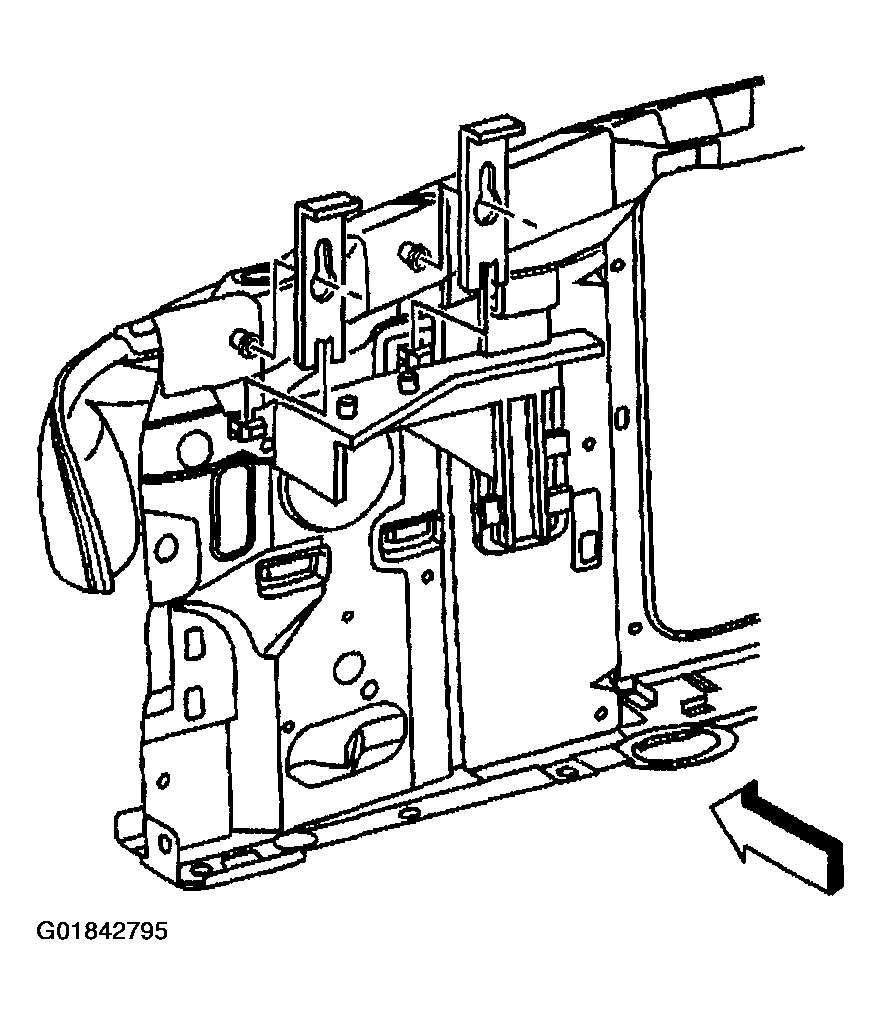

    Fig 1: Removing Headlamp Retainers
    G01842795Courtesy of GENERAL MOTORS CORP.
  4. Remove the headlamp from the vehicle. Refer to HEADLAMP REPLACEMENT .

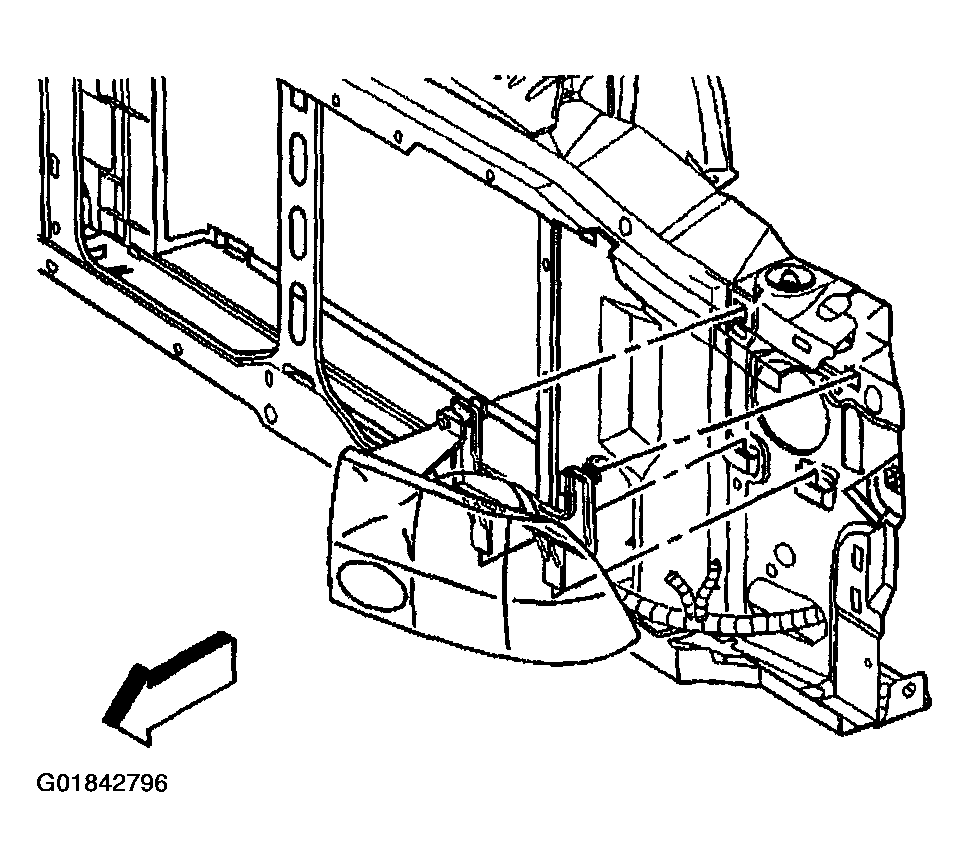

    Fig 2: Removing/Installing Headlamp
    G01842796Courtesy of GENERAL MOTORS CORP.
  5. Remove the bulb and socket from the headlamp.
  6. Remove the bulb from the socket.

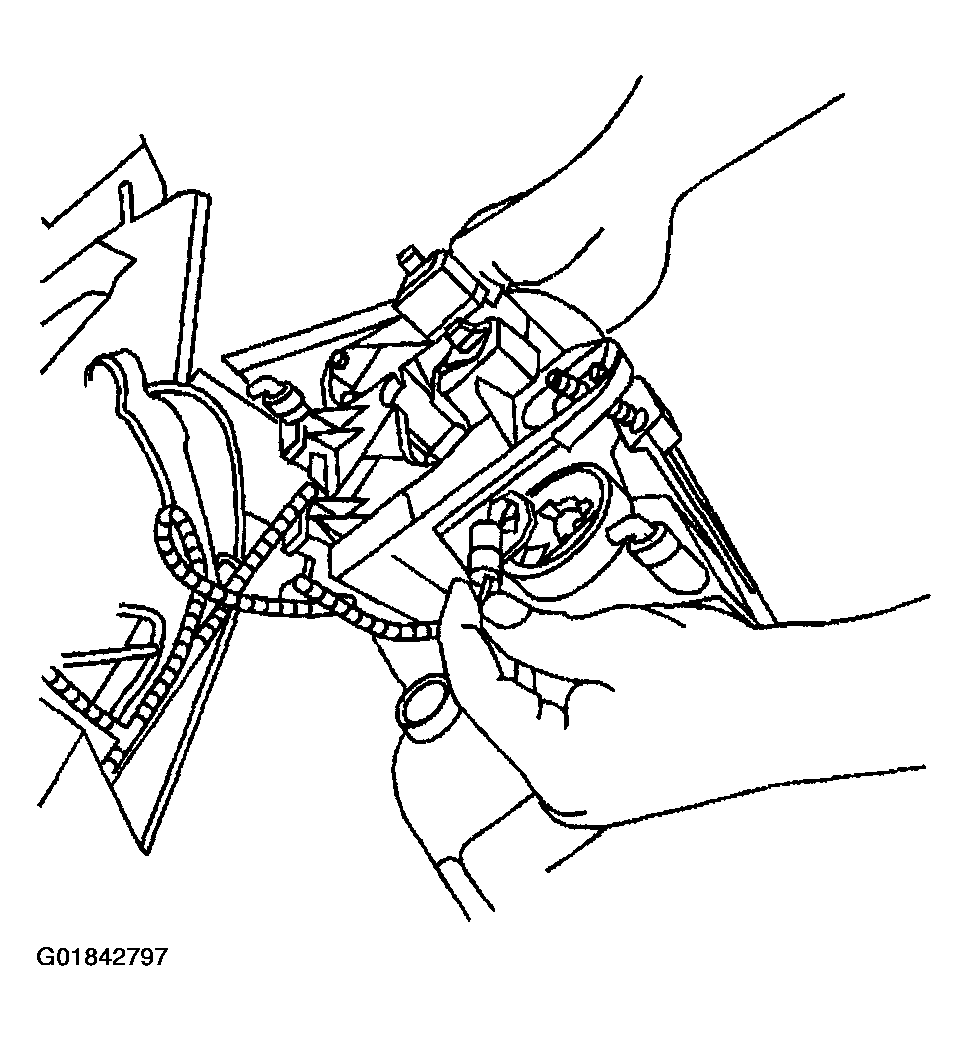

    Fig 3: Locating Headlamp Electrical Connectors
    G01842797Courtesy of GENERAL MOTORS CORP.
