Installation Procedure

  1. Install the bulb to the socket.
  2. Install the bulb and socket to the headlamp.

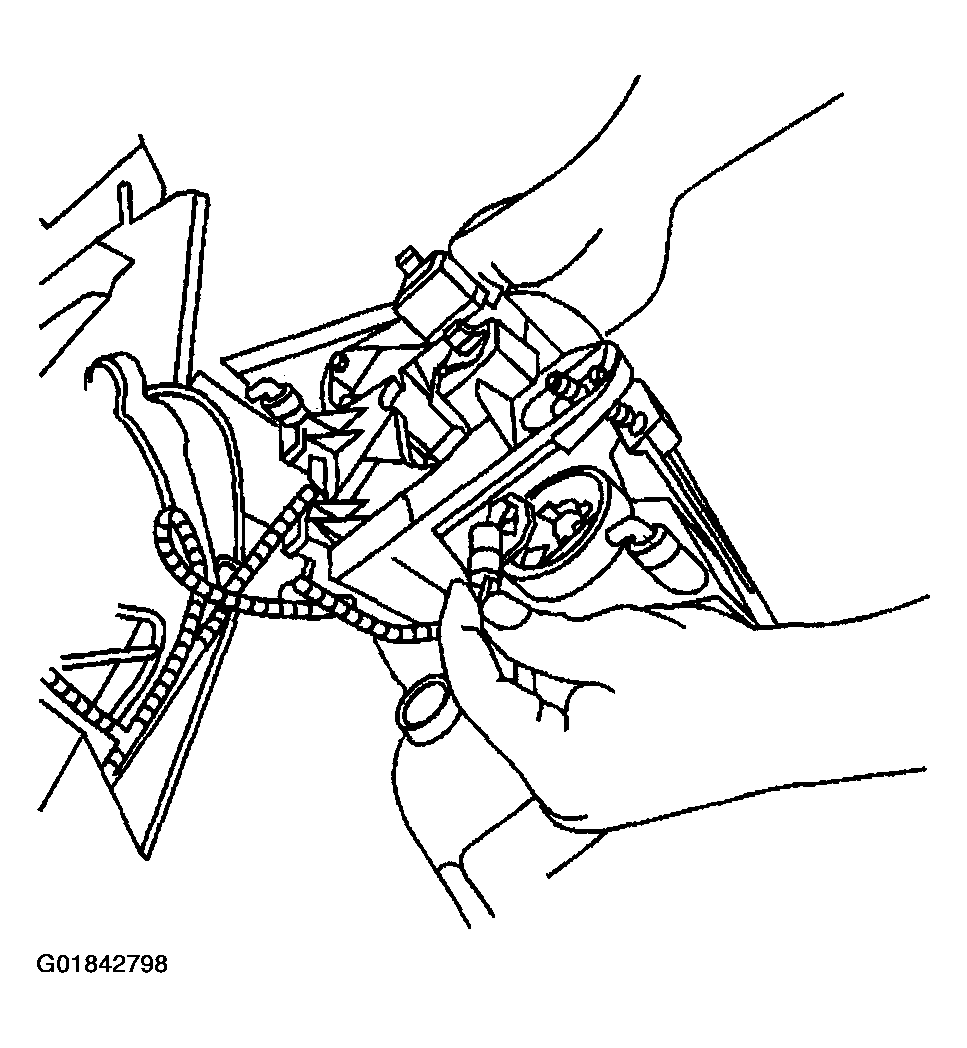

    Fig 1: Locating Headlamp Electrical Connectors
    G01842798Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp to the vehicle. Refer to HEADLAMP REPLACEMENT .

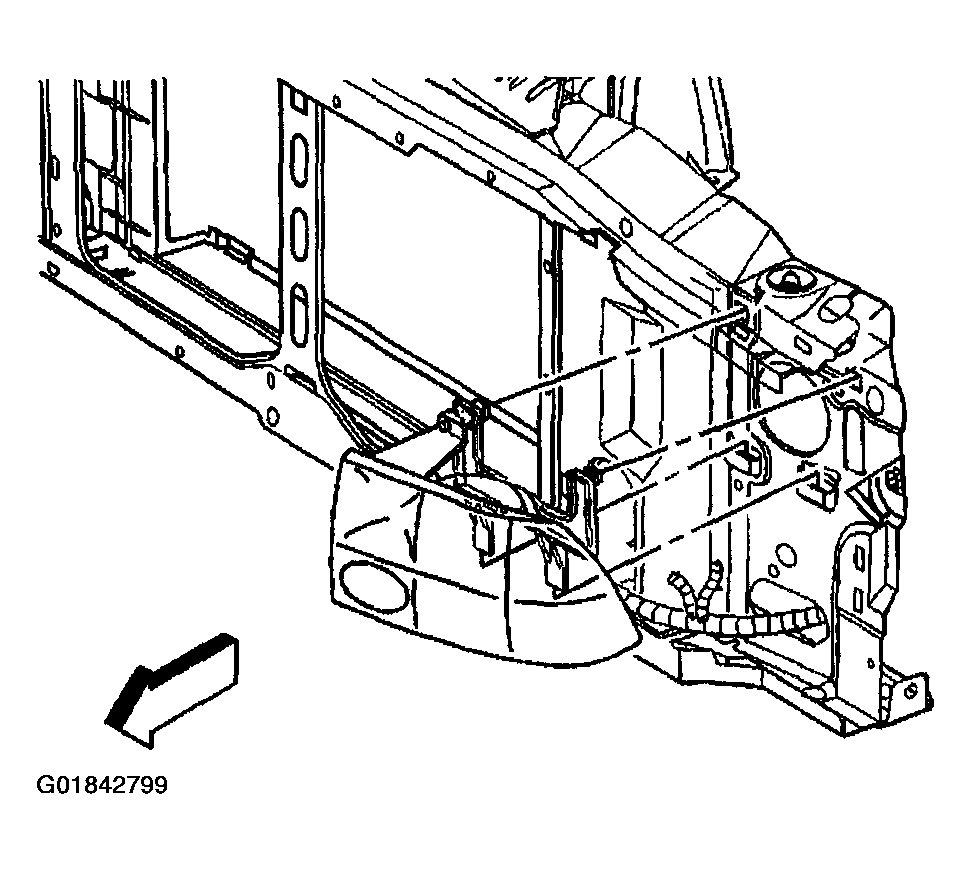

    Fig 2: Removing/Installing Headlamp
    G01842799Courtesy of GENERAL MOTORS CORP.
  4. Install the headlamp retainers.

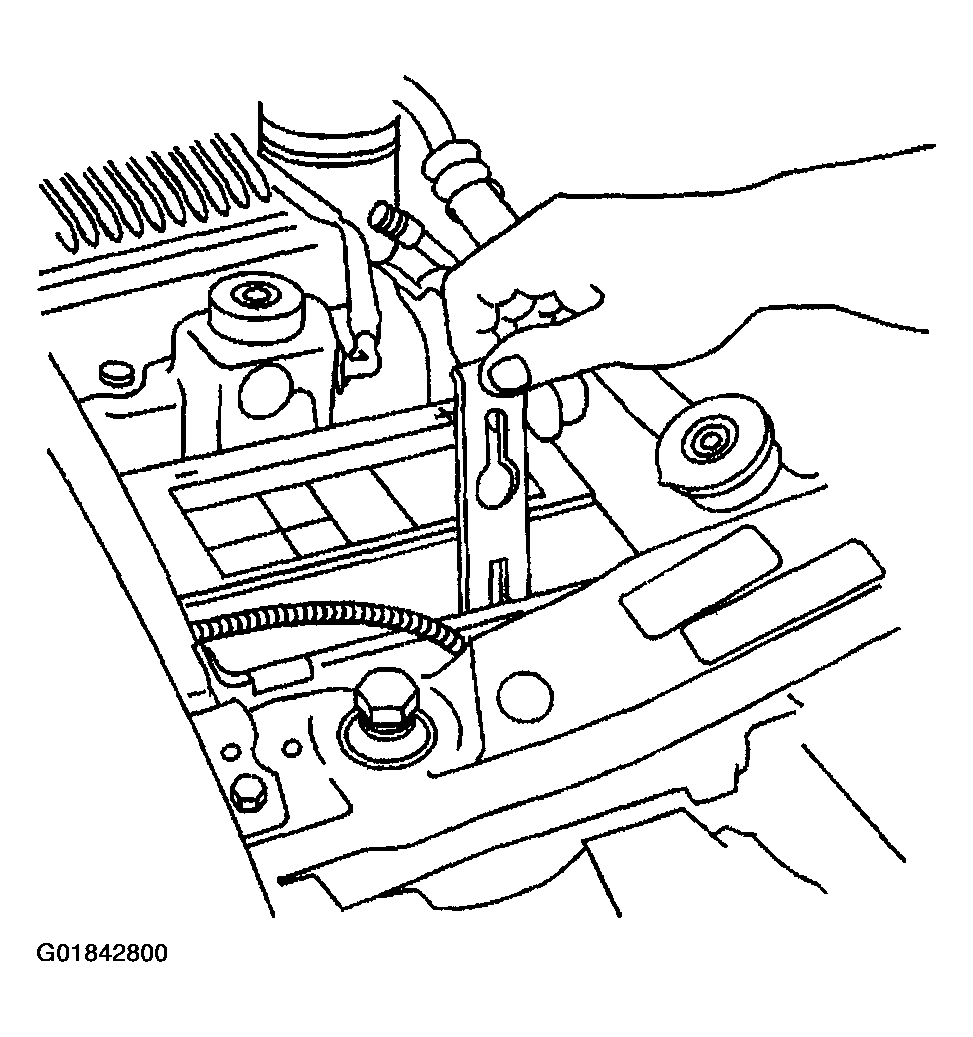

    Fig 3: Installing Headlamp Retainers
    G01842800Courtesy of GENERAL MOTORS CORP.
