Removal Procedure

  1. Ensure that the headlamp switch is in the OFF position.
  2. Ensure that the ignition switch is in the LOCK position.
  3. Rotate the bulb and socket 1/4 turn counter-clockwise in order to remove the bulb and socket from the vehicle.

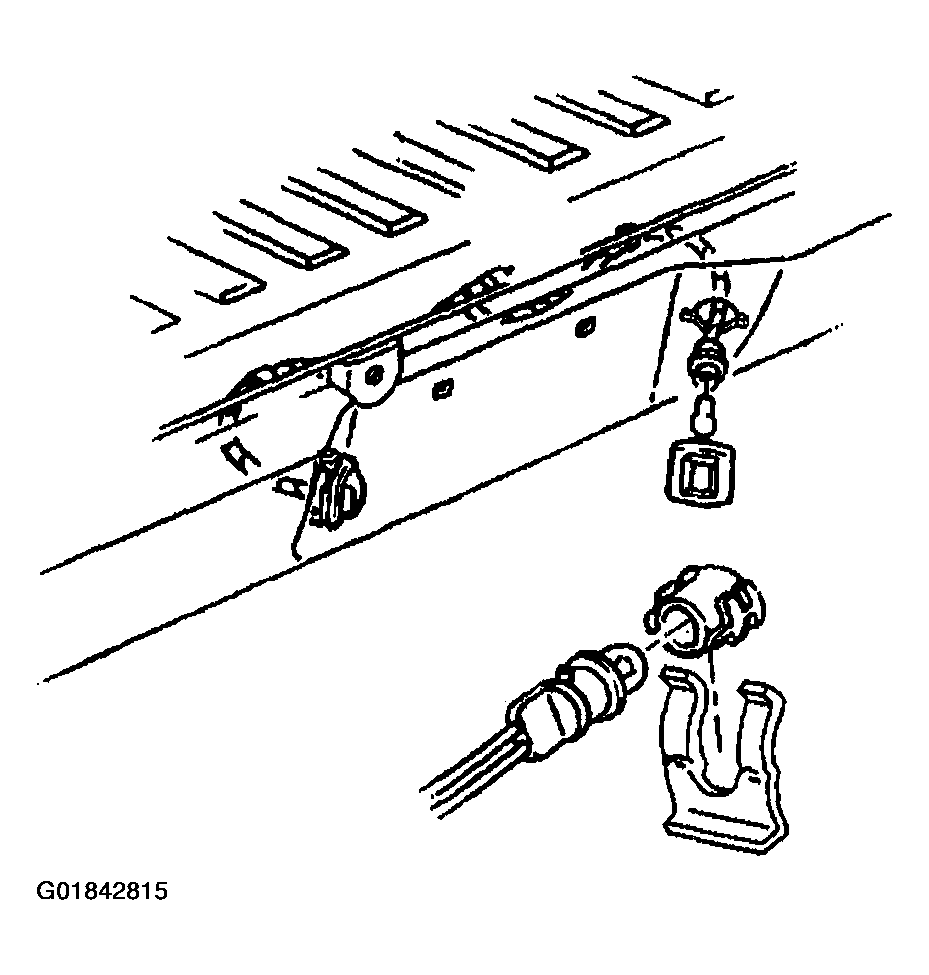

    Fig 1: Identifying License Plate Lamp & Bracket Components (Filler Panel)
    G01842815Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the socket if being replaced.
  5. Remove the lens retaining clip from the license plate lamp.
  6. Remove the lens from the filler panel.
