Installation Procedure

  1. Install the lens to the filler panel.
  2. Install the lens retaining clip to the license plate lamp.
  3. Install the bulb to the socket.

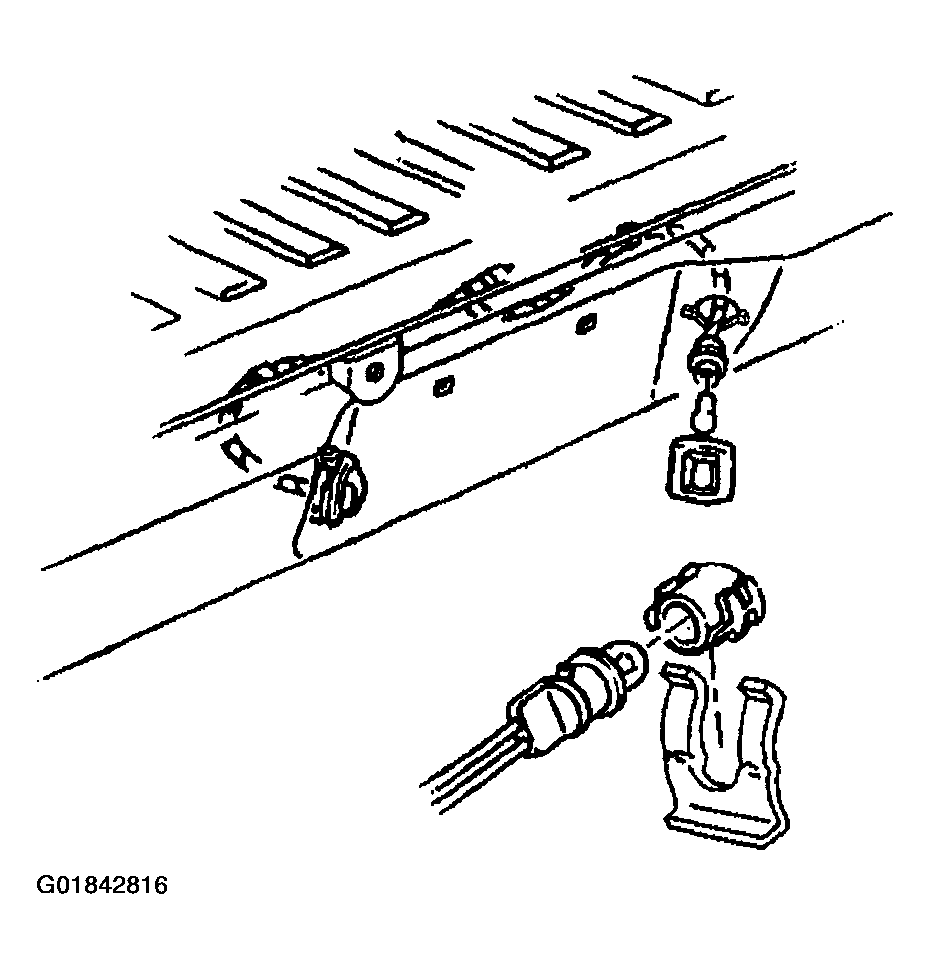

    Fig 1: Identifying License Plate Lamp & Bracket Components (Filler Panel)
    G01842816Courtesy of GENERAL MOTORS CORP.
  4. Rotate the bulb and socket 1/4 turn clockwise in order to install the bulb and socket to the license plate lamp.
