Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the negative battery cable.
  2. Remove the IPC. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in INSTRUMENT PANEL, GAGES & CONSOLE article.
  3. Unclip the IPC rear cover plate by prying gently on the tabs with a screwdriver.

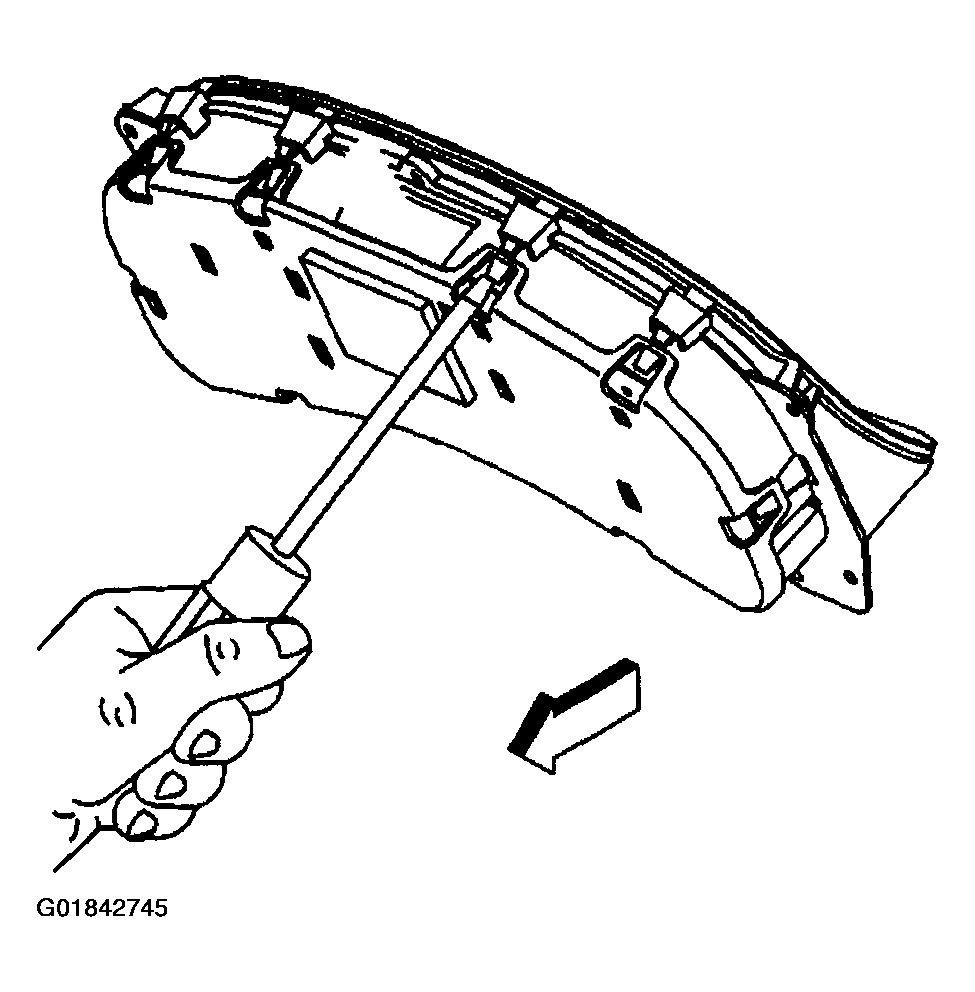

    Fig 1: Releasing IPC Rear Cover Plate Tabs
    G01842745Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear cover plate from the IPC.

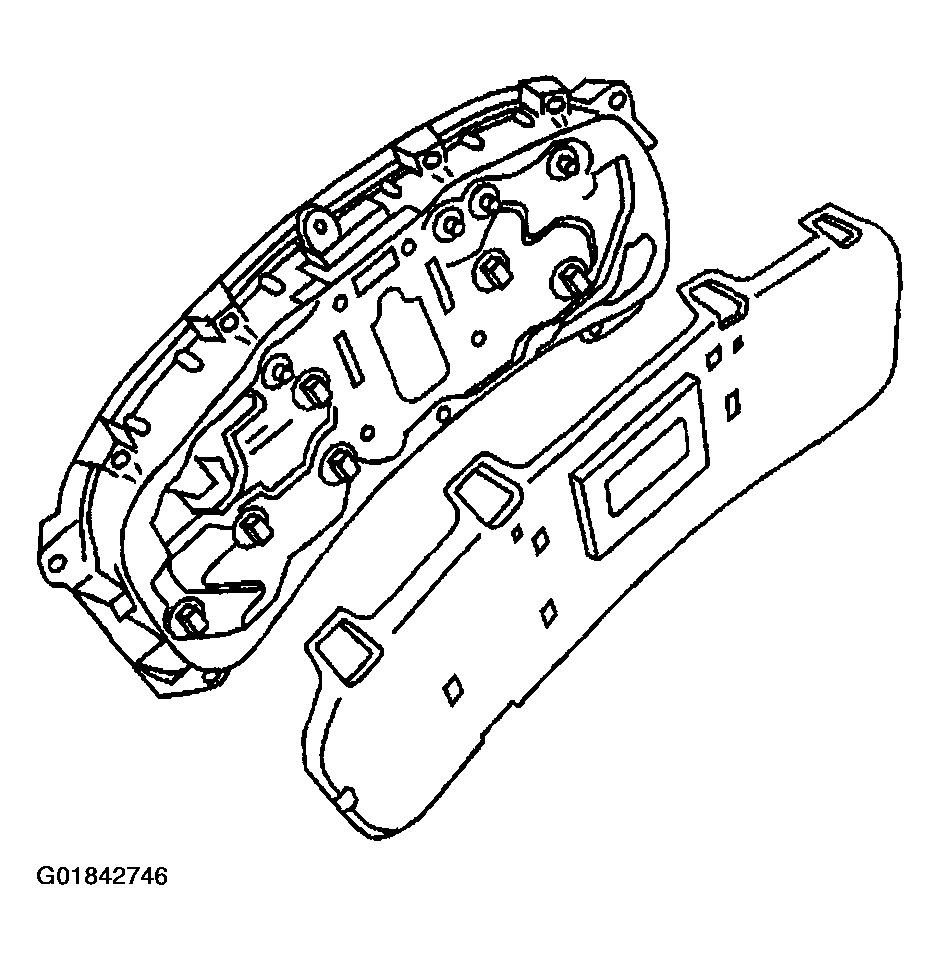

    Fig 2: Identifying IPC Rear Cover Plate
    G01842746Courtesy of GENERAL MOTORS CORP.
  5. Remove the bulb and base assembly by turning the bulb 1/2 turn counterclockwise and pulling outward.

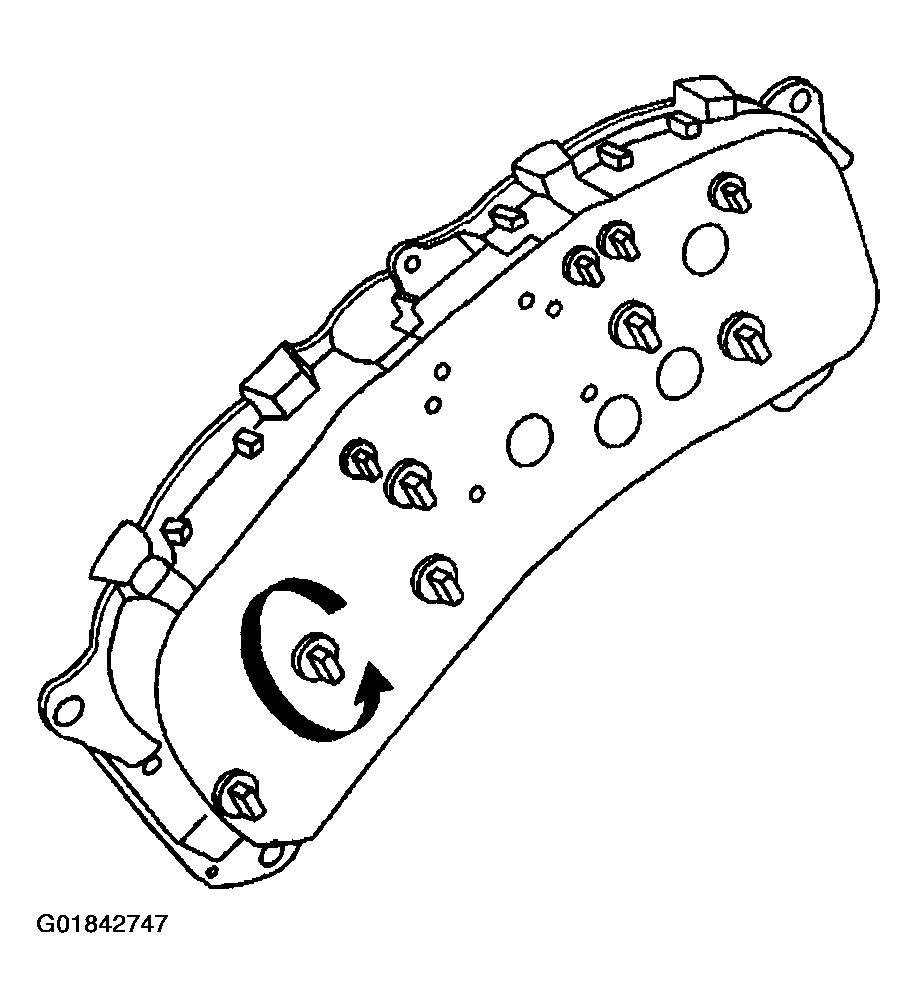

    Fig 3: Removing Bulb & Base Assembly
    G01842747Courtesy of GENERAL MOTORS CORP.
